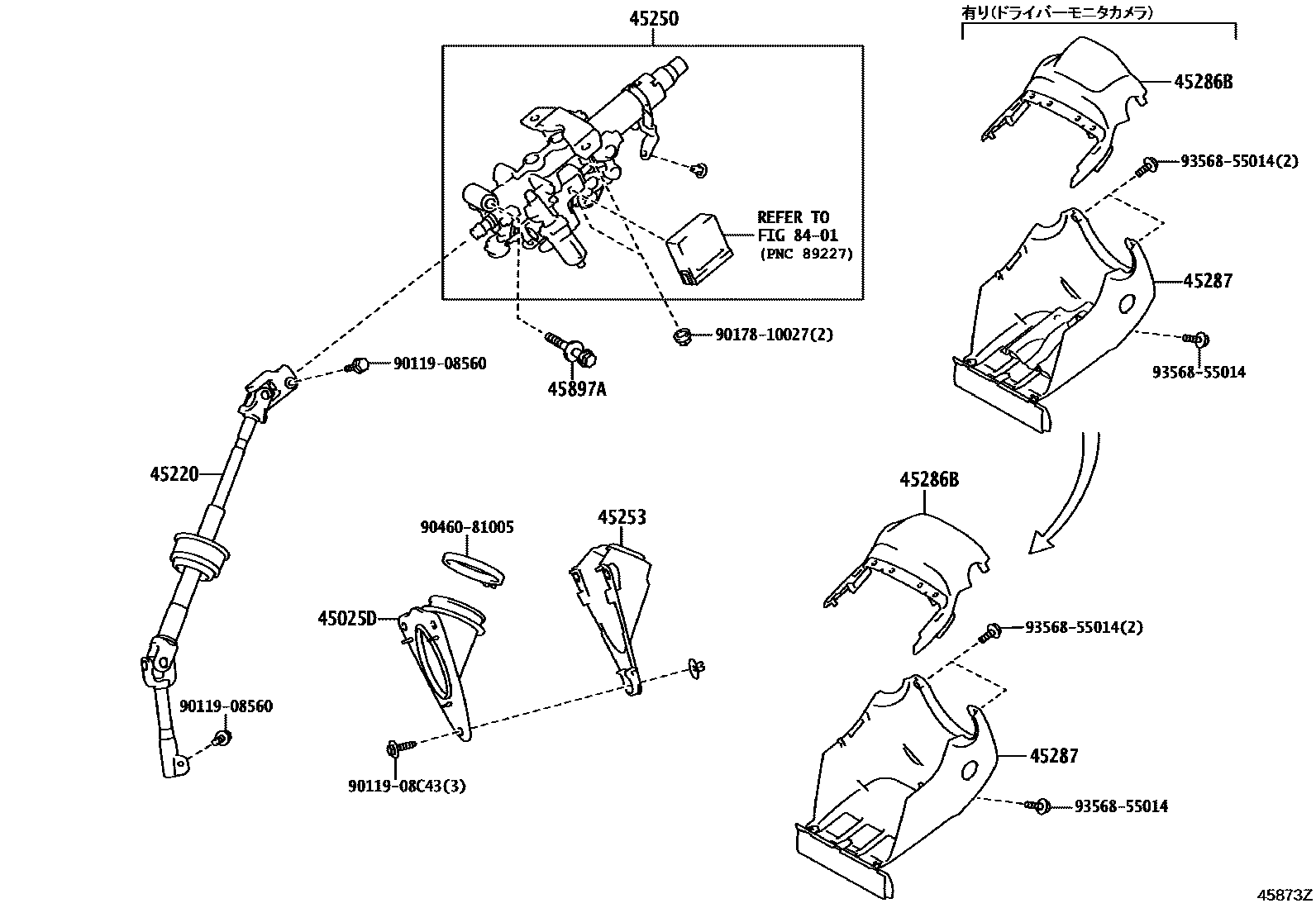

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-V2020iAAWH1#,TAWH15202311

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-V2010iAAWH1#,TAWH15202311

45250COLUMN ASSY, STEERING

main45250-V2010iAAWH1#,TAWH15202311

45253COVER, STEERING COLUMN HOLE

main45253-V2010iAAWH1#,TAWH15202311

45286BCOVER, STEERING COLUMN, UPR

main45286-78030-C0iAAWH1#,TAWH15202311

BLACK,TRIM0#,2#

main45286-V2020-C0iAAWH1#,TAWH15202311

45287COVER, STEERING COLUMN, LWR

main45024-60060-C0iAAWH1#,TAWH15202311

BLACK,TRIM0#,2#

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iAAWH1#,TAWH15202311

8401

9011908560

main90119-08560

9011908C43

main90119-08C43

9017810027

main90178-10027

9046081005

main90460-81005

9356855014

main93568-55014

13 parts on this diagram · 1 diagram in section
