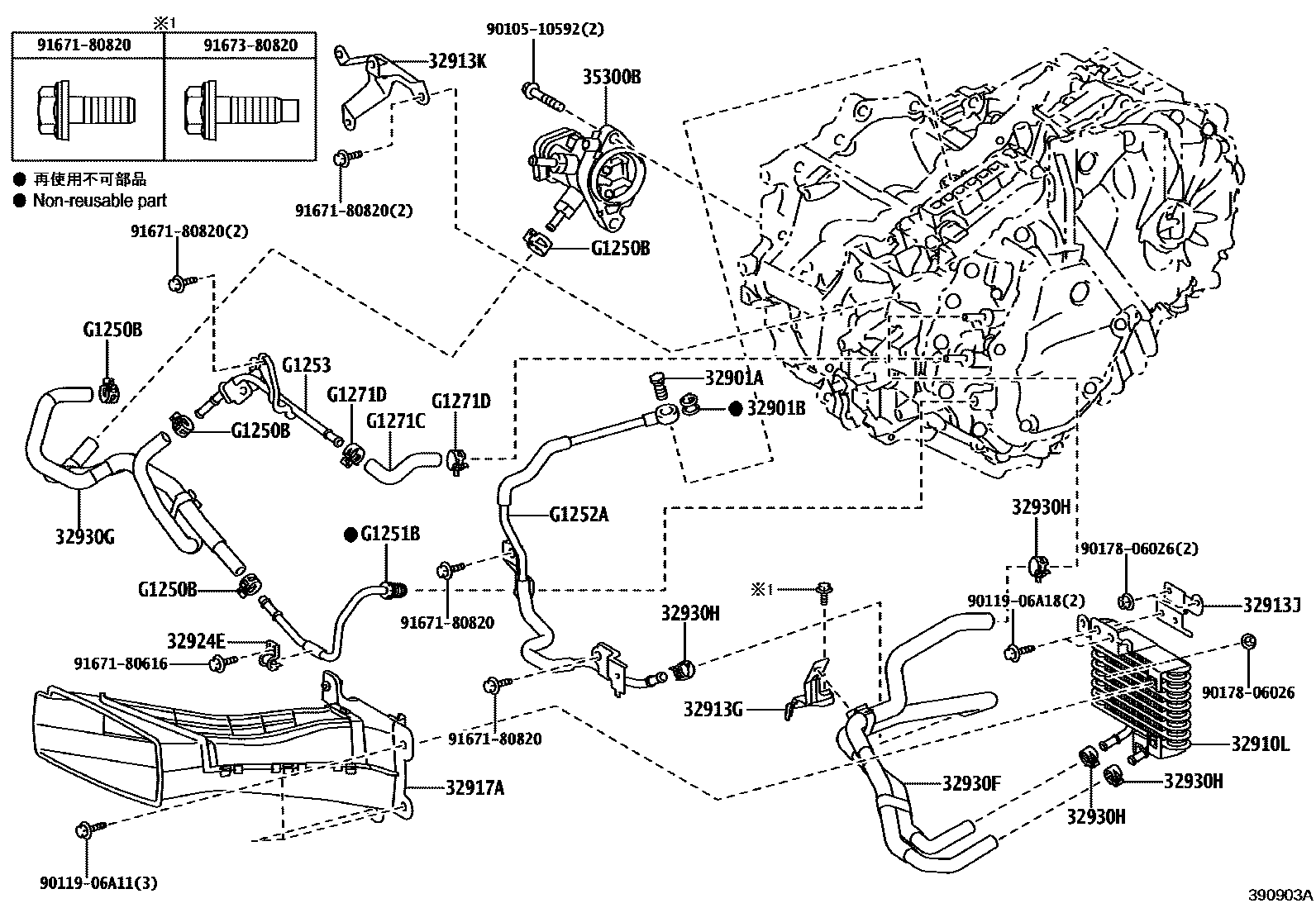

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAAWH1#¥390202311

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAAWH1#¥80202311

32910LCOOLER ASSY, OIL

main32910-58010iAAWH1#¥31,500202311

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-42050iAAWH1#¥520202311

32913JBRACKET, TRANSMISSION OIL COOLER, NO.2

main32913-58030iAAWH1#¥530202311

32913KBRACKET, TRANSMISSION OIL COOLER, NO.3

main32913-78030iAAWH1#¥820202311

32917ADUCT, TRANSMISSION OIL COOLER AIR

main32917-58030iAAWH1#¥4,370202311

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iAAWH1#¥200202311

32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-58040iAAWH1#¥4,210202311

main32930-58050iTAWH15¥2,250202311

32930GHOSE ASSY, TRANSMISSION OIL COOLER, NO.2

main32930-42070iAAWH1#¥2,930202311

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAAWH1#¥180202311

main96138-42501iTAWH15¥180202311

35300BPUMP ASSY, OIL W/MOTOR

main35300-48070iAAWH1#¥41,100202311

G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)

main90466-16004iAAWH1#¥180202311

G1251BPIPE, MOTOR COOLING, NO.1

mainG125142010iAAWH1#202311

G1252APIPE, MOTOR COOLING, NO.2

mainG125242010iAAWH1#202311

G1253PIPE, MOTOR COOLING, NO.3

mainG125478010iAAWH1#202311

G1271CHOSE, MOTOR COOLING, NO.1

mainG127142010iAAWH1#202311

G1271DCLIP, NO.1(FOR MOTOR COOLING HOSE)

main90466-16004iAAWH1#¥180202311

9010510592

main90105-10592¥160

9011906A11

main90119-06A11¥60

9011906A18

main90119-06A18¥80

9017806026

main90178-06026¥80

9167180616

main91671-80616¥60

9167180820

main91671-80820¥80

9167380820

main91673-80820¥80

25 parts on this diagram · 2 diagrams in section
