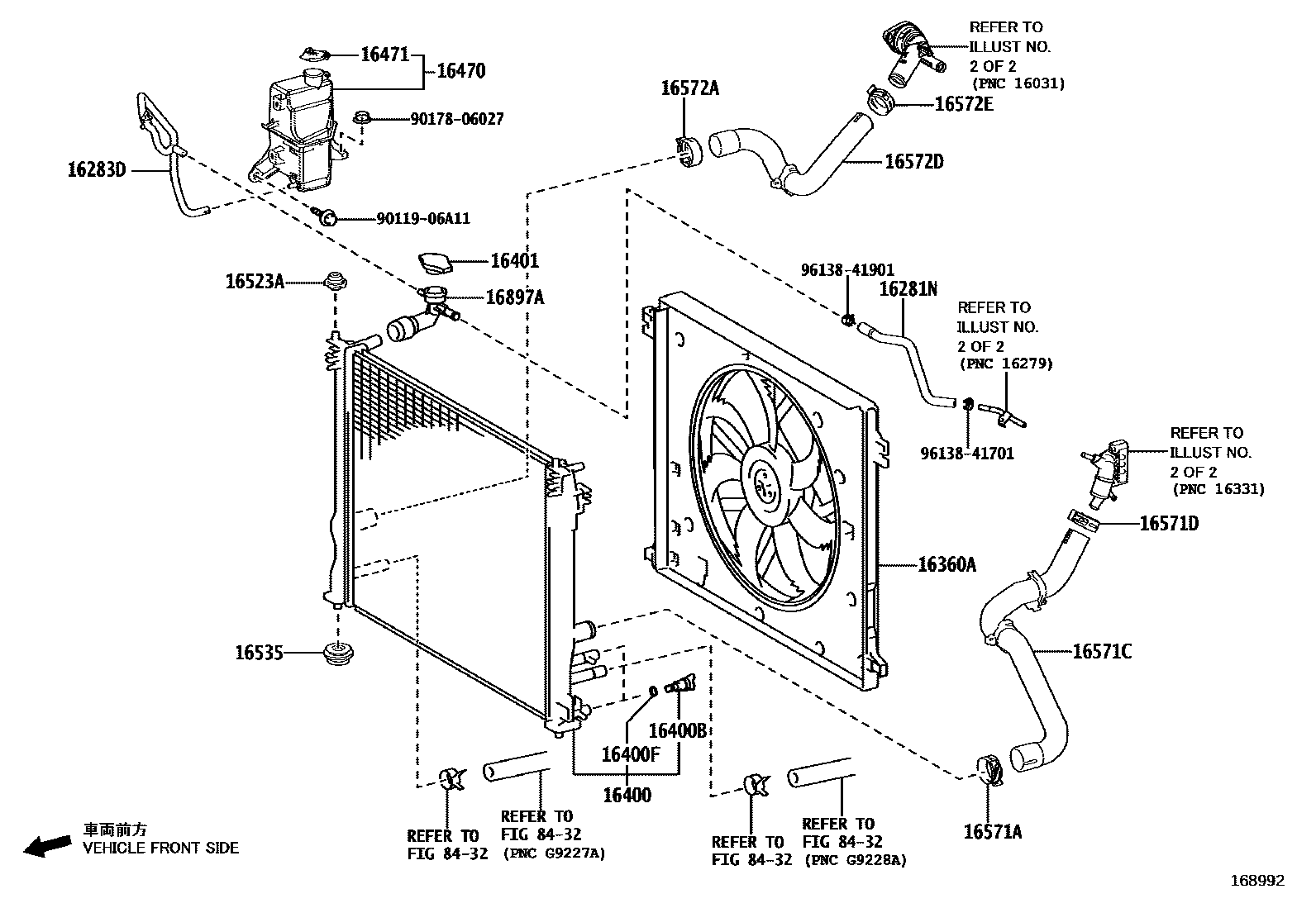

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16281HOSE, WATER BY-PASS, NO.4

main16281-25060iT24..TAWH15202311

main99555-10200iA25..AAWH1#202311

16281NHOSE, WATER BY-PASS, NO.4

main16281-25090iT24..TAWH15202311

main16281-V2010iA25..AAWH1#202311

16283HOSE, WATER BY-PASS, NO.6

main16283-25020iA25..AAWH1#202311

16283DHOSE, WATER BY-PASS, NO.6

main16283-V2010iT24..TAWH15202311

16360AFAN ASSY, W/MOTOR

main16360-V2020iA25..AAWH1#202311

main16360-V2030iT24..TAWH15202311

16400RADIATOR ASSY

main16400-V2010iT24..TAWH15202311

main16400-V2020iA25..AAWH1#202311

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iT24..TAWH15202311

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iT24..TAWH15202311

16401CAP SUB-ASSY, RADIATOR

main16401-36030iT24..TAWH15202311

16470TANK ASSY, RADIATOR RESERVE

main16470-25050iT24..TAWH15202311

16471CAP SUB-ASSY, RESERVE TANK

main16471-23010iT24..TAWH15202311

16523ACUSHION, RADIATOR SUPPORT

main16523-25010iT24..TAWH15202311

16535SUPPORT, RADIATOR, LOWER

main16535-28060iT24..TAWH15202311

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25..AAWH1#202311

16571CHOSE, RADIATOR, NO.1

main16571-V2020iA25..AAWH1#202311

main16571-V2040iT24..TAWH15202311

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002iT24..TAWH15202311

main90466-43002iA25..AAWH1#202311

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25..AAWH1#202311

16572DHOSE, RADIATOR, NO.2

main16572-V2020iA25..AAWH1#202311

main16572-V2030iT24..TAWH15202311

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002iT24..TAWH15202311

main90466-43002iA25..AAWH1#202311

16897ANECK, FILLER

main16897-V2010iT24..TAWH15202311

8432

9011906A11

main90119-06A11

9017806027

main90178-06027

9613841701

main96138-41701

9613841901

main96138-41901

25 parts on this diagram · 6 diagrams in section
