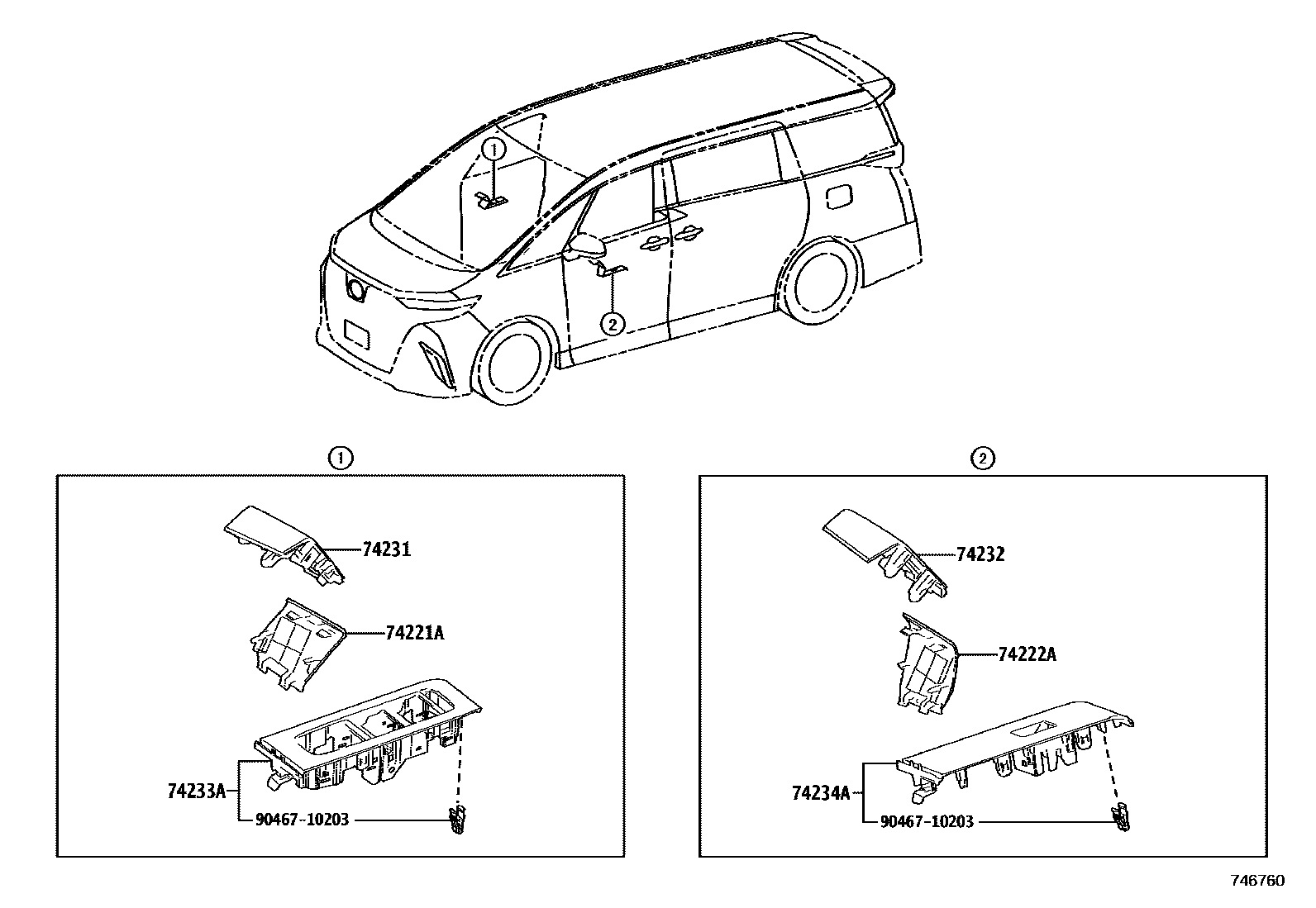

ARMREST & VISOR

0001 1������ 0002 1������ 0003 1����� & ����������

74221ACOVER, FRONT DOOR ARMREST, RH

main74221-V2010iAAHH4#,AGH4#,TAHA4#202306-202307

main74221-V2011iAAHH4#,AAHP45,AGH4#,TAHA4#202308

74222ACOVER, FRONT DOOR ARMREST, LH

main74222-V2010iAAHH4#,AGH4#,TAHA4#202306-202307

main74222-V2011iAAHH4#,AAHP45,AGH4#,TAHA4#202308

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#..G,PREM,X,Z202306

main74231-V2020iAAHH4#,AAHP45,TAHA4#..EL,SL,SLS202306

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

9046710203

main90467-10203

7 parts on this diagram · 3 diagrams in section
