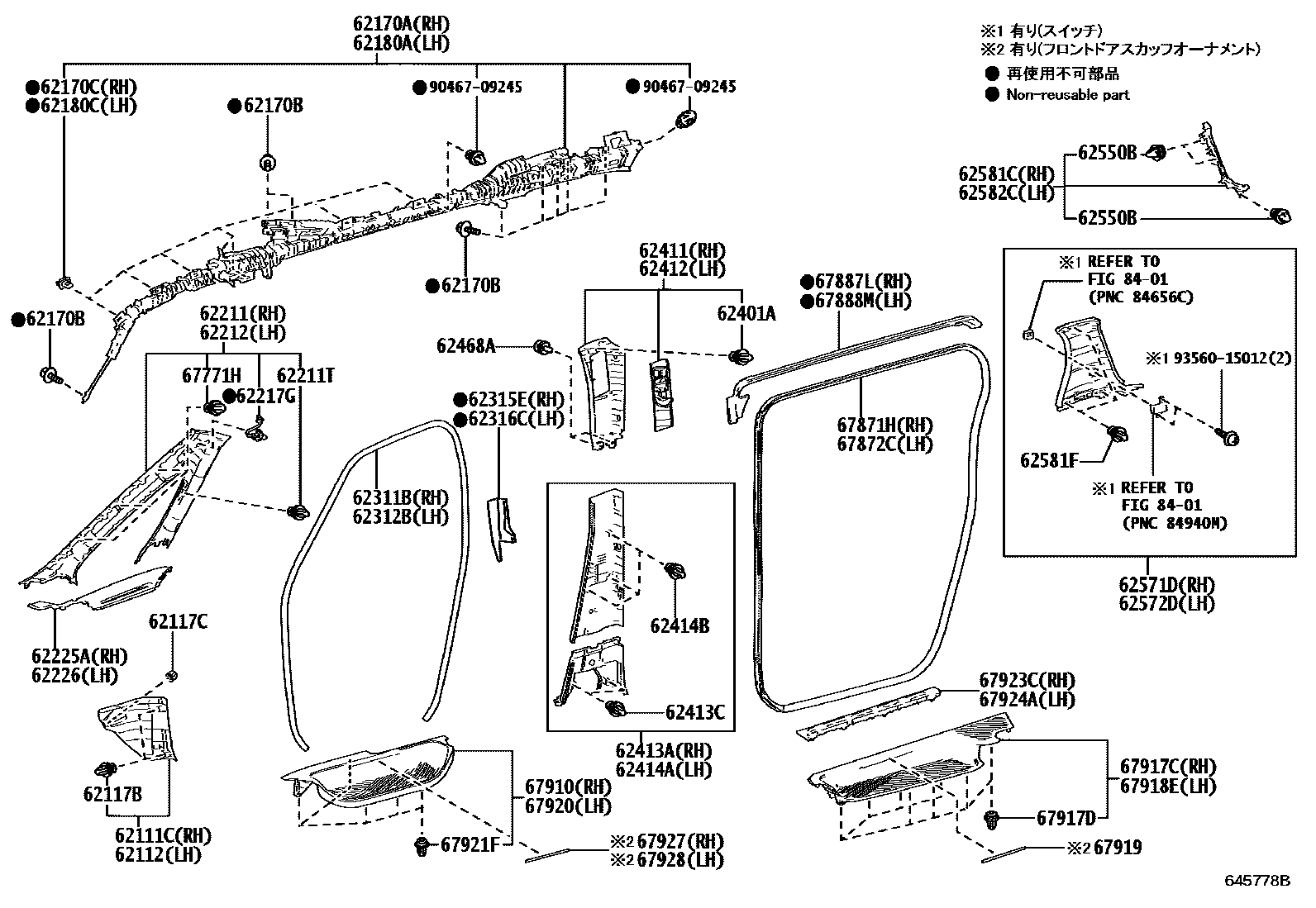

INSIDE TRIM BOARD

0001 1 0002 1������ 0003 1������ 0004 1������� 0005 1������� 0006 1 0007 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main62111-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#,4#

main62111-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main62111-V2010-C0iAAHP45..PREM202501

BLACK,TRIM2#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main62112-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#,4#

main62112-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main62112-V2010-C0iAAHP45..PREM202501

BLACK,TRIM2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-V2010iAAHH4#,AAHP45..04S,06S202306

62170BBOLT, W/WASHER

main90119-06869iAAHH4#,AAHP45..04S,06S202306

62170CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-V2010iAAHH4#,AAHP45..04S,06S202306

62180CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62211GARNISH, FRONT PILLAR, RH

main62210-V2030-C1iAAHH4#,AGH4#..G,X202306

BLACK,TRIM2#

main62210-V2050-C0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

BLACK,TRIM2#,40

main62210-V2050-C0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

main62210-V2050-C0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

main62210-V2050-C0iAAHP45..PREM,Z202501

BLACK,TRIM2#,4#

main62210-V2050-E0iAAHH4#,TAHA4#..EL202306

main62210-V2050-E0iAAHH4#,TAHA4#..EL202306

NEUTRAL BEIGE,TRIM0#,41

main62210-V2050-E0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202501

main62210-V2050-E0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202501

NEUTRAL BEIGE,TRIM41

main62210-V2050-E0iAAHH4#,AGH4#..Z202306

main62210-V2060-C0iAAHP45..PREM,Z202306

BLACK,TRIM2#

main62210-V2060-C0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

BLACK,TRIM2#,4#

main62210-V2060-E0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

NEUTRAL BEIGE,TRIM0#

main62210-V2060-E0iAAHH4#,AGH4#..Z202306

NEUTRAL BEIGE,TRIM0#,4#

main62210-V2060-E0iAAHP45..Z202501

NEUTRAL BEIGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10162iAAHH4#,AAHP45..04S,06S202306

62212GARNISH, FRONT PILLAR, LH

main62220-V2030-C1iAAHH4#,AGH4#..G,X202306

BLACK,TRIM2#

main62220-V2050-C0iAAHH4#,TAHA4#..EL202306

main62220-V2050-C0iAAHH4#,AGH4#..Z202306

BLACK,TRIM2#,40

main62220-V2050-C0iAAHH4#,AGH4#..Z202306

main62220-V2050-C0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202501

BLACK,TRIM2#,4#

main62220-V2050-E0iAAHH4#,TAHA4#..EL202306

main62220-V2050-E0iAAHH4#,TAHA4#..EL202306

main62220-V2050-E0iAAHH4#,AGH4#..Z202306

NEUTRAL BEIGE,TRIM0#,41

main62220-V2050-E0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202501

main62220-V2050-E0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202501

NEUTRAL BEIGE,TRIM41

main62220-V2060-C0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

BLACK,TRIM2#,4#

main62220-V2060-C0iAAHH4#,AGH4#..Z202306

BLACK,TRIM2#

main62220-V2060-E0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

NEUTRAL BEIGE,TRIM0#,4#

main62220-V2060-E0iAAHH4#,AGH4#..Z202306

NEUTRAL BEIGE,TRIM0#

main62220-V2060-E0iAAHP45..Z202501

NEUTRAL BEIGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main62225-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#,4#

main62225-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main62225-V2010-C0iAAHP45..PREM202501

BLACK,TRIM2#,4#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main62226-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#,4#

main62226-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main62226-V2010-C0iAAHP45..PREM202501

BLACK,TRIM2#,4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62315EWEATHERSTRIP, FRONT DOOR OPENING TRIM, REAR RH

main62315-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62316CWEATHERSTRIP, FRONT DOOR OPENING TRIM, REAR LH

main62316-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10161iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62411GARNISH, CENTER PILLAR, RH

main62410-V2010-C1iAAHH4#,AGH4#..G,X202306

BLACK,TRIM2#

main62410-V2020-C0iAAHH4#,TAHA4#..EL202306

BLACK,TRIM2#,40

main62410-V2020-C0iAAHH4#,AGH4#..Z202306

BLACK,TRIM2#,4#

main62410-V2020-C0iAAHH4#,TAHA4#..EL202306

BLACK,TRIM2#

main62410-V2020-E0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

NEUTRAL BEIGE,TRIM0#

main62410-V2020-E0iAAHP45..Z202501

NEUTRAL BEIGE,TRIM41

main62410-V2020-E0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202501

NEUTRAL BEIGE,TRIM4#

main62410-V2020-E0iAAHH4#,AGH4#..Z202306

NEUTRAL BEIGE,TRIM0#,4#

main62410-V2020-E0iAAHH4#,AGH4#..Z202306

NEUTRAL BEIGE,TRIM0#,41

62412GARNISH, CENTER PILLAR, LH

main62420-V2010-C1iAAHH4#,AGH4#..G,X202306

BLACK,TRIM2#

main62420-V2020-C0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202306

BLACK,TRIM2#,40

main62420-V2020-C0iAAHH4#,AGH4#..Z202306

BLACK,TRIM2#

main62420-V2020-C0iAAHH4#,AGH4#..Z202306

BLACK,TRIM2#,4#

main62420-V2020-E0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202501

NEUTRAL BEIGE,TRIM41

main62420-V2020-E0iAAHP45..Z202501

NEUTRAL BEIGE,TRIM4#

main62420-V2020-E0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

NEUTRAL BEIGE,TRIM0#,41

main62420-V2020-E0iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

NEUTRAL BEIGE,TRIM0#,4#

main62420-V2020-E0iAAHH4#,TAHA4#..EL202306

NEUTRAL BEIGE,TRIM0#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62401-V2010-C0iAAHH4#,AGH4#..G,X,Z202306

BLACK,TRIM2#

main62401-V2010-C0iAAHH4#,TAHA4#..EL202306

BLACK,TRIM2#,40

main62401-V2010-C0iAAHH4#,TAHA4#..EL202306

BLACK,TRIM2#,4#

main62401-V2010-C1iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

BLACK,TRIM0#

main62401-V2010-C1iAAHH4#,AGH4#..Z202306

BLACK,TRIM0#,4#

main62401-V2010-C1iAAHH4#,AGH4#..Z202306

BLACK,TRIM0#,41

main62401-V2010-C1iAAHP45..Z202501

BLACK,TRIM4#

main62401-V2010-C1iAAHP45..Z202501

BLACK,TRIM41

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAAHH4#,AAHP45..04S,06S202306

62414AGARNISH, CENTER PILLAR, LOWER LH

main62402-V2010-C0iAAHP45..PREM,Z202306

BLACK,TRIM2#,4#

main62402-V2010-C0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202306

BLACK,TRIM2#

main62402-V2010-C0iAAHH4#..04S;AAHP45..SLS;AAHP45..ALPHD..(EL,SL)202306

BLACK,TRIM2#,40

main62402-V2010-C1iAAHH4#,AGH4#,TAHA4#..VFIRE..(PREM,Z)202306

BLACK,TRIM0#

main62402-V2010-C1iAAHH4#,AGH4#..Z202306

BLACK,TRIM0#,4#

main62402-V2010-C1iAAHH4#,AGH4#..Z202306

BLACK,TRIM0#,41

main62402-V2010-C1iAAHP45..Z202501

BLACK,TRIM4#

main62402-V2010-C1iAAHP45..Z202501

BLACK,TRIM41

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62468ACLIP (FOR CENTER PILLAR REAR GARNISH)

main90467-10216iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62550BCLIP(FOR REAR WINDOW SIDE GARNISH)

main90467-09245iAAHH4#,AGH4#,TAHA4#..07S,08S202306

62571DGARNISH, QUARTER LOCK PILLAR, RH

main62550-V2010-C0iAAHH4#,AGH4#..08S202306

BLACK,TRIM2#

main62550-V2020-C1iAAHH4#,AGH4#..ALPHD..G202306

BLACK,TRIM0#,2#

main62550-V2020-C1iAAHH4#,AGH4#..ALPHD..G202306

BLACK,TRIM2#

main62550-V2030-C1iAAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM2#,4#

main62550-V2080-C0iAAHP45..PREM202306

BLACK,TRIM2#,4#

main62550-V2080-C0iTAHA4#;AAHH4#..EL202306

main62550-V2080-C0iAAHP45..PREM202501

BLACK,TRIM2#

62572DGARNISH, QUARTER LOCK PILLAR, LH

main62560-V2010-C0iAAHH4#,AGH4#..08S202306

main62560-V2010-C0iAAHH4#,AGH4#..08S202306

BLACK,TRIM2#

main62560-V2010-C0iAGH4#..07S..X;AAHH4#,AGH4#..VFIRE..G202306

main62560-V2020-C1iAAHH4#,AGH4#..07S..X;AAHH4#,AGH4#..VFIRE..G202306

BLACK,TRIM0#,2#

main62560-V2020-C1iAAHH4#,AGH4#..ALPHD..G202306

BLACK,TRIM2#

main62560-V2030-C1iAAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM2#,4#

main62560-V2080-C0iAAHP45..PREM202306

BLACK,TRIM2#,4#

main62560-V2080-C0iTAHA4#;AAHH4#..EL202306

main62560-V2080-C0iAAHP45..PREM202501

BLACK,TRIM2#

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-V2010-C0iAAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM0#,2#,4#

main62581-V2010-C0iAAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM2#

main62581-V2010-C0iAAHH4#,AGH4#..X202306

BLACK,TRIM0#,2#

main62581-V2020-C0iTAHA4#;AAHH4#..EL202306

main62581-V2020-C0iAAHH4#,AGH4#..PREM,Z202306

BLACK,TRIM0#,2#,4#

main62581-V2020-C0iAAHP45..PREM202501

BLACK,TRIM2#

main62581-V2020-C0iAAHP45..PREM202501

BLACK,TRIM2#,4#

main62581-V2060iAAHH4#,AAHP45..04S202501

62581FCLIP (FOR QUARTER PILLAR GARNISH)

main90467-10161iAAHH4#,AAHP45..04S,06S202306

62582CGARNISH, REAR WINDOW SIDE, LH

main62582-V2010-C0iAAHH4#,AGH4#..X202306

BLACK,TRIM2#

main62582-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main62582-V2010-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#,4#

main62582-V2020-C0iTAHA4#;AAHH4#..EL202306

BLACK,TRIM0#,2#,4#

main62582-V2020-C0iTAHA4#;AAHH4#..EL202306

main62582-V2020-C0iAAHP45..PREM202501

BLACK,TRIM2#

main62582-V2020-C0iAAHP45..PREM202501

BLACK,TRIM2#,4#

main62582-V2060iAAHH4#,AAHP45..04S202501

67771HRETAINER, DOOR TRIM

main67771-12060iAAHH4#,AGH4#,TAHA4#..07S,08S202306

67871HWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main62331-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

67872CWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main62332-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

67887LWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

67888MWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

67910PLATE ASSY, DOOR SCUFF, RH

main67911-V2040-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main67911-V2040-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main67911-V2050-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306

BLACK,TRIM0#,2#,4#

main67911-V2050-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306

BLACK,TRIM2#,4#

main67911-V2050-C0iAAHP45..PREM202501

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67915-V2020-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main67915-V2020-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main67915-V2030-C0iAAHP45..PREM202501

BLACK,TRIM2#

main67915-V2030-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306

BLACK,TRIM0#,2#,4#

main67915-V2030-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306

BLACK,TRIM2#,4#

67917DCLIP, REAR DOOR SCUFF PLATE

main90467-10167iAAHH4#,AAHP45..04S,06S202306

67918EPLATE, REAR DOOR SCUFF, LH

main67916-V2020-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM0#,2#

main67916-V2020-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main67916-V2030-C0iAAHP45..PREM202306

BLACK,TRIM2#,4#

main67916-V2030-C0iAAHP45..PREM202501

BLACK,TRIM2#

main67916-V2030-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306

BLACK,TRIM0#,2#,4#

67919ORNAMENT, DOOR SCUFF

main67927-V2040iAAHH4#,AAHP45..ALPHD..(04S,06S)202409

main67927-V2040-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306-202409

BLACK,TRIM0#,2#,4#

sub67927-V2040

main67927-V2080iAAHH4#,AGH4#,TAHA4#..VFIRE..(EL,PREM,Z)202409

main67927-V2080-C0iAAHH4#,AGH4#,TAHA4#..VFIRE..(EL,PREM,Z)202306-202409

BLACK,TRIM2#,4#

67920PLATE ASSY, DOOR SCUFF, LH

main67912-V2030-C0iAAHH4#,AGH4#..G202306

BLACK,TRIM2#

main67912-V2030-C0iAAHH4#,AGH4#..X202306

BLACK,TRIM0#,2#

main67912-V2040-C0iAAHP45..PREM202306

BLACK,TRIM2#,4#

main67912-V2040-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306

BLACK,TRIM0#,2#,4#

main67912-V2040-C0iAAHP45..PREM202501

BLACK,TRIM2#

67921FRETAINER, FRONT DOOR SCUFF PLATE

main90467-10167iAAHH4#,AGH4#,TAHA4#..07S,08S202306

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67924-V2011iAAHH4#,AGH4#,TAHA4#..07S,08S202306

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-V2021iAAHH4#,AGH4#,TAHA4#..07S,08S202306

67927ORNAMENT, FRONT DOOR SCUFF, RH

main67927-V2040iAAHH4#,AGH4#..ALPHD..(EL,Z)202409

main67927-V2040-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306-202409

BLACK,TRIM0#,2#,4#

sub67927-V2040

main67927-V2080iAAHH4#,AAHP45..VFIRE..(04S,06S)202409

main67927-V2080-C0iAAHH4#,AGH4#,TAHA4#..VFIRE..(EL,PREM,Z)202306-202409

BLACK,TRIM2#,4#

67928ORNAMENT, FRONT DOOR SCUFF, LH

main67927-V2040iAAHH4#,AAHP45..ALPHD..(04S,06S)202409

main67927-V2040-C0iAAHH4#,AGH4#..ALPHD..(EL,Z)202306-202409

BLACK,TRIM0#,2#,4#

sub67927-V2040

main67927-V2080iAAHH4#,AAHP45..VFIRE..(04S,06S)202409

main67927-V2080-C0iAAHH4#,AGH4#,TAHA4#..VFIRE..(EL,PREM,Z)202306-202409

BLACK,TRIM2#,4#

8401

9046709245

main90467-09245

9356015012

main93560-15012

52 parts on this diagram · 7 diagrams in section
