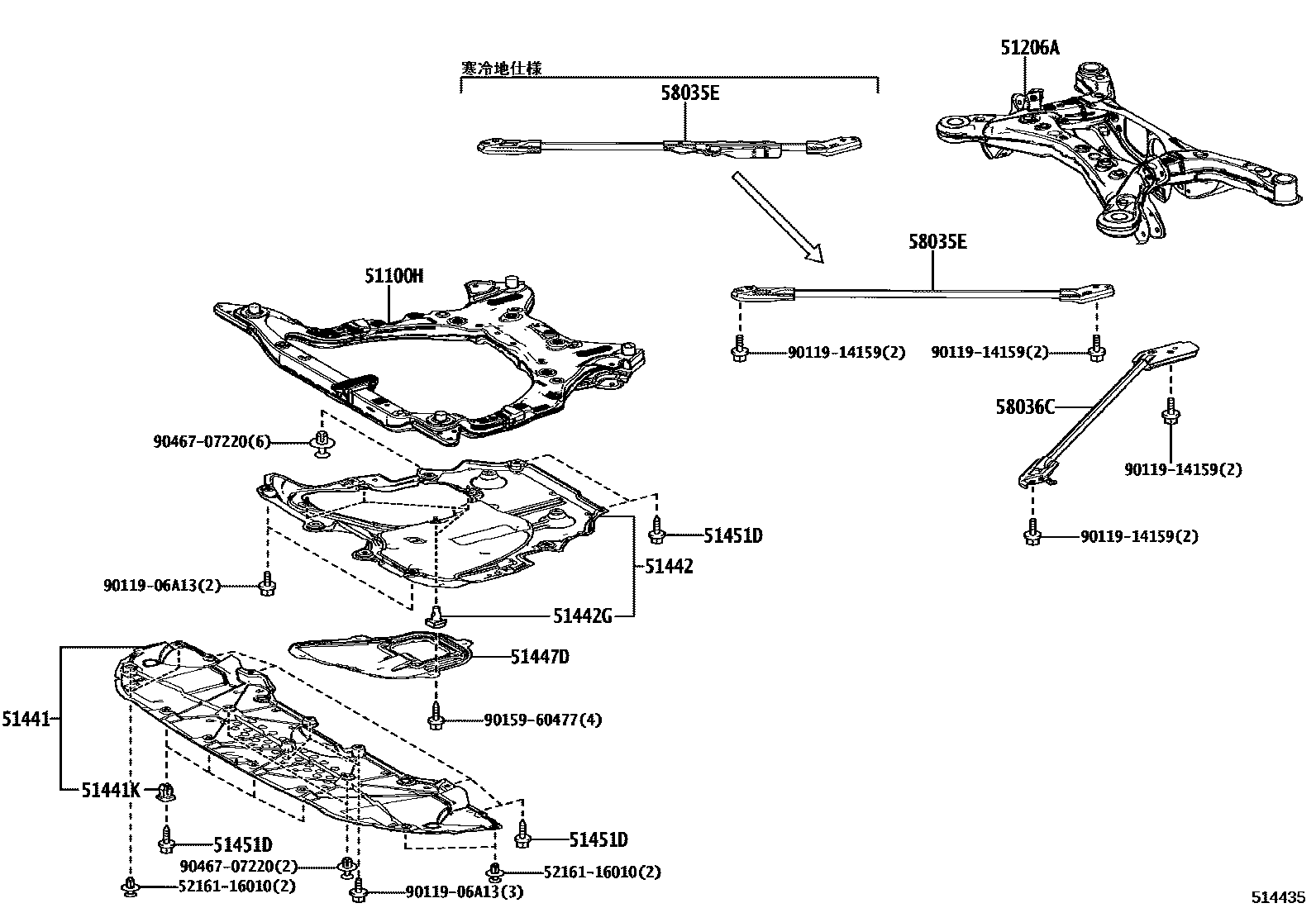

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51100HFRAME ASSY, FRONT

main51100-V2010iAGH4#202306

main51100-V2020iAAHH4#,AAHP45,TAHA4#202306

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-V2010iAAHH40,AGH40,TAHA40202306

main51206-V2020iAGH45,TAHA45202306

main51206-V2030iAAHH45,AAHP45202306

51441COVER, ENGINE UNDER, NO.1

main51441-V2020iAAHH4#,AAHP45,AGH4#,TAHA4#202306

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06237×4iAAHH4#,AAHP45,AGH4#,TAHA4#202306

51442COVER, ENGINE UNDER, NO.2

main51442-V2020iAAHH4#,TAHA4#202306

main51442-V2030iAAHP45202501

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-05176×4iAAHH4#,AAHP45202306

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-V2020iAAHH4#,AAHP45202306

51451DSCREW, NO.1

main90159-60477×10iAAHH4#,AAHP45,AGH4#,TAHA4#202306

58035EBRACE SUB-ASSY, REAR FLOOR PANEL, RH

main58035-V2030supersedes 58035-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

58036CBRACE SUB-ASSY, REAR FLOOR PANEL, LH

main58036-V2010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9011906A13

main90119-06A13

9011914159

main90119-14159

9015960477

main90159-60477

9046707220

main90467-07220

15 parts on this diagram · 6 diagrams in section
