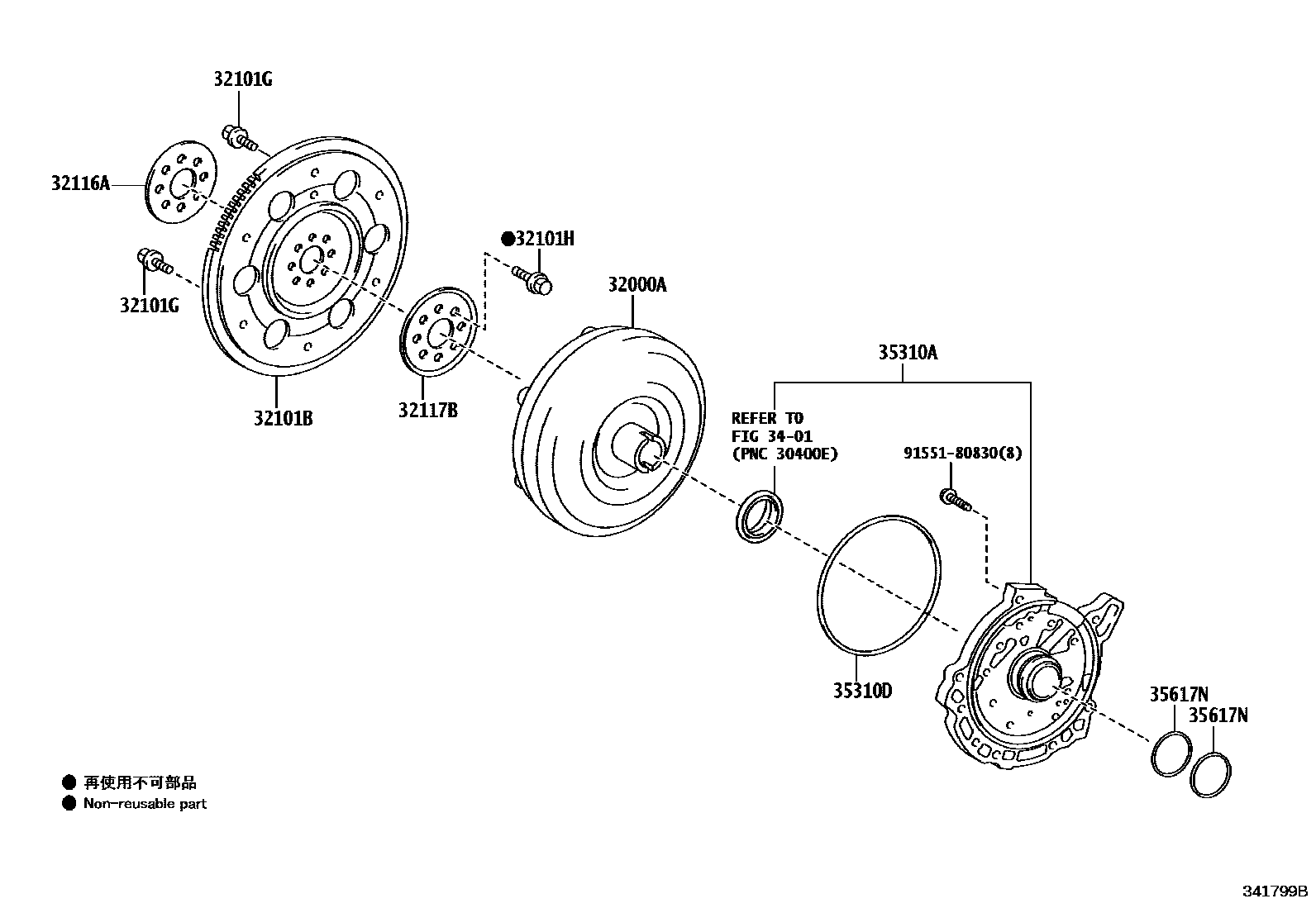

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-58011iAGH4#202306

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-73010iAGH4#202306

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iAGH4#202306

main90119-09025iAGH4#202306

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12384iAGH4#202306

32116ASPACER, DRIVE PLATE, FRONT

main32116-20050iAGH4#202306

32117BSPACER, DRIVE PLATE, REAR

main32117-20060iAGH4#202306

3401

35310APUMP ASSY, FRONT OIL

main35310-28041iAGH4#202306

35310DRING, O (FOR FRONT OIL PUMP)

main35697-28010iAGH4#202306

35617NRING, CLUTCH DRUM OIL SEAL

main35617-28020iAGH4#202306

9155180830

main91551-80830

11 parts on this diagram · 1 diagram in section
