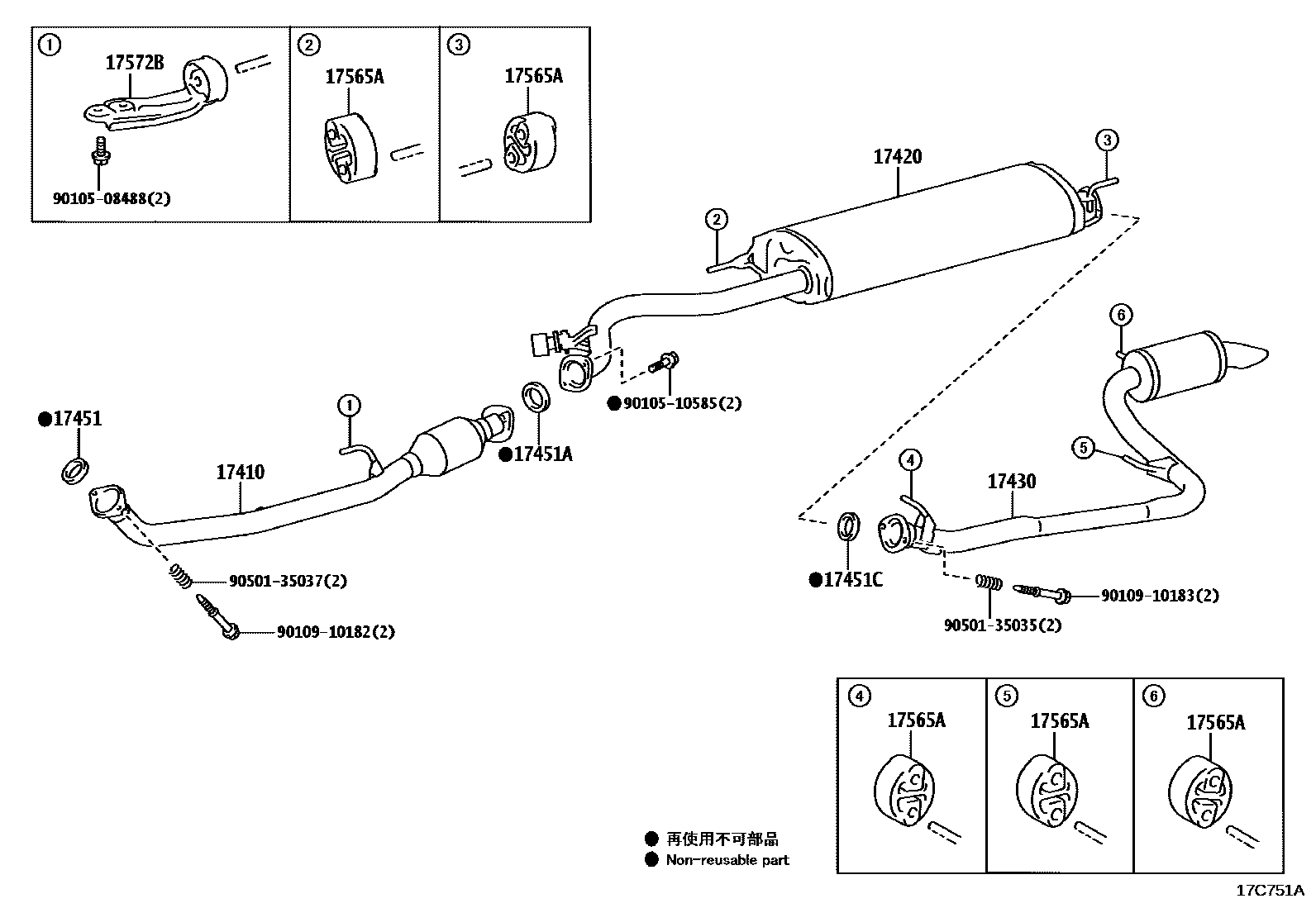

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-V2010i2ARFE..AGH4#202306

main17410-V2190iA25..AAHH4#202306-202410

main17410-V2200iT24AFTS..TAHA4#202306

main17410-V2220iA25..AAHP45202501

17420PIPE ASSY, EXHAUST, CENTER

main17420-V2020i2ARFE..AGH4#202306

17430PIPE ASSY, EXHAUST, TAIL

main17430-V2030i2ARFE..AGH4#202306

main17430-V2040iA25..AAHH4#..07S,08S202306

main17430-V2060iT24AFTS..TAHA4#202306

main17430-V2130iA25..AAHP45202501

17451GASKET, EXHAUST PIPE

main17451-24010i2ARFE..AGH4#202306

main90917-06073iA25..AAHH4#,AAHP45..04S,06S202501

main90917-06090iT24AFTS..TAHA4#202306

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06078i2ARFE..AGH4#202306

main90917-06089iA25..AAHP45202501

main90917-06090iA25,T24AFTS..AAHH4#,TAHA4#..07S,08S202306

17451CGASKET, EXHAUST PIPE, NO.3

main17451-V2010i2ARFE..AGH4#202306

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×5i2ARFE..AGH4#202306

main17565-28010×5iT24AFTS..TAHA4#202306

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-25040iA25,2ARFE..AAHH4#,AGH4#..07S,08S202306

main17572-V2010iT24AFTS..TAHA4#202306

9010508488

main90105-08488

9010510585

main90105-10585

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

14 parts on this diagram · 4 diagrams in section
