STANDARD TOOL

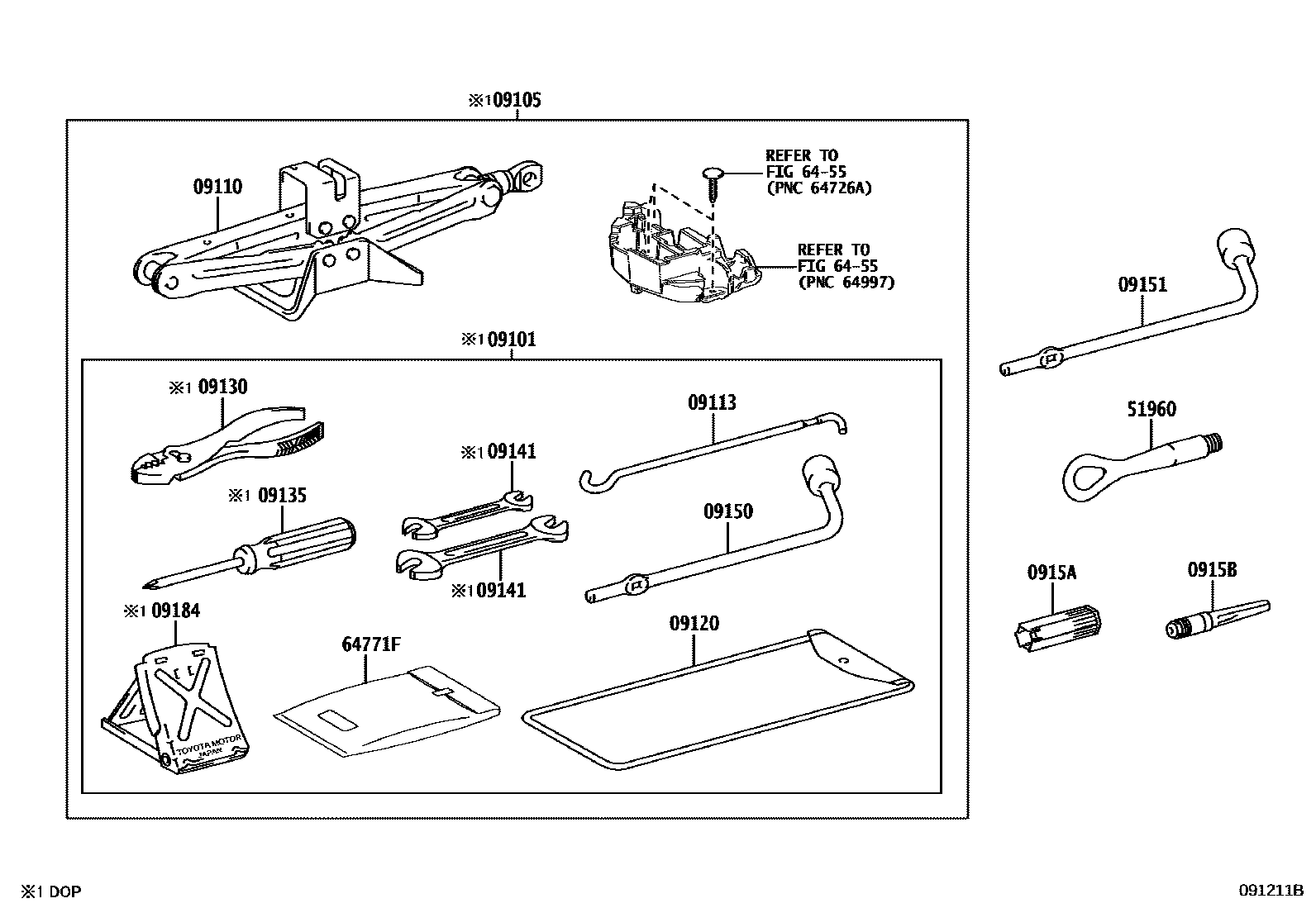

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-V2011i202306

main09101-V2021i202306

09105BOX SET, JACK

main09105-V2010i202306

main09105-V2020i202306

main09105-V2030i202501

main09105-V2040i202501

09110JACK ASSY

main09111-V2010i202306

main09111-V2010i202306

main09111-V2010i202306

main09111-V2010i202306

09113HANDLE, JACK

main09113-42030i202306

main09113-42030i202306

main09113-42030i202306

09120BAG, TOOL

main09120-37030i202306

main09120-37030i202306

main09120-37030i202306

09130PLIERS

main99913-11500i202306

main99913-11500i202306

09135DRIVER, SCREW

main99915-10700i202306

main99915-10700i202306

09141SPANNER

main99914-10810i202306

main99914-10810i202306

main99914-11214i202306

main99914-11214i202306

09150WRENCH, HUB NUT BOX

main09150-V2010i202306

main09150-V2010i202306

main09150-V2010i202306

09151WRENCH, HUB BOLT BOX

main09151-78010i202306

main09151-78010i202306

main09151-78010i202306

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010i202306

main0915A-53010i202306

main0915A-53010i202306

0915BPIN, WHEEL GUIDE

main0915B-53010i202306

main0915B-53010i202306

main0915B-53010i202306

09184STOPPER, WHEEL

main09184-00010i202306

main09184-00010i202306

main09184-00010i202306

51960HOOK ASSY, FRONT

main51961-11030i202306

6455

64771FCOVER, SPARE WHEEL

main64771-44010i202306

main64771-44010i202306

main64771-44010i202306

16 parts on this diagram · 2 diagrams in section
