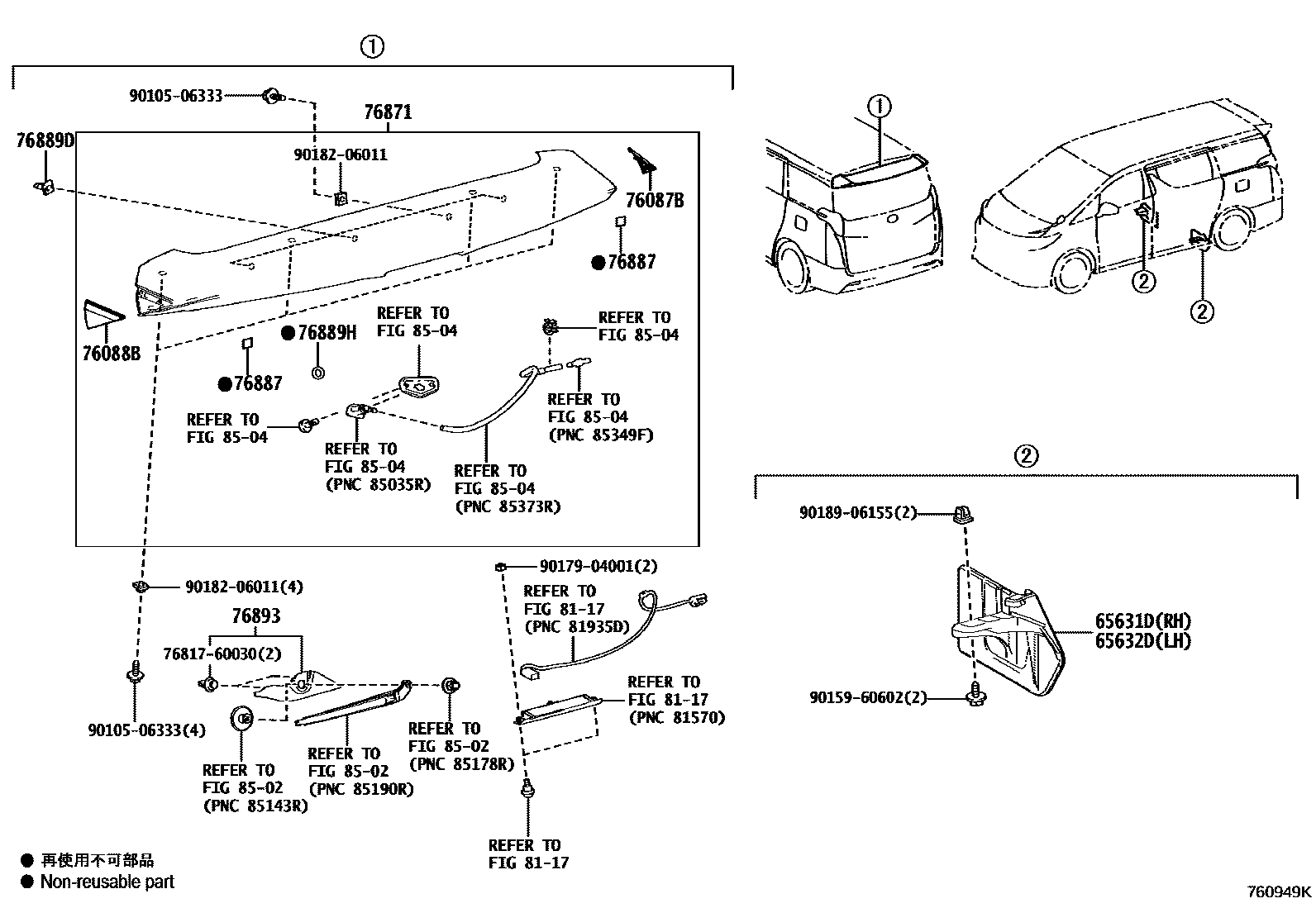

SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1��(�������������������)

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-58020iAGH3#,AYH30,GGH3#201501-201801

main65631-58020iAGH3#,AYH30,GGH3#201801-202104

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-58020iAGH3#,AYH30,GGH3#201501-202001

main65632-58020iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-58010iAGH3#,AYH30,GGH3#201501-202104

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-58010iAGH3#,AYH30,GGH3#201501-202104

76871SPOILER, REAR

main76085-58900-A0iAGH3#,AYH30,GGH3#201501-202104

WHITE PEARL CS.,070

main76085-58900-A1iAGH3#,AYH30,GGH3#..ALPHD201501-202001

LUXURY WHITE PEARL CS.GF.,086

main76085-58900-B0iAGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X201501-201801

SILVER ME.,1F7

main76085-58900-B1iAGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR201501-201801

GRAY ME.,1G3

main76085-58900-C0iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)201501-202104

BLACK,202

main76085-58900-C1iAGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..ELS,S,SC,SR,Z201501-202104

SPARKLING BLACK PEARL CS.,220

main76085-58900-C2iAGH3#,AYH30,GGH3#..VFIRE201501-202104

BURNING BLACK CS.GF,222

main76085-58900-D1iAGH3#..08S..Z;AYH30,GGH3#..ELZ,ZG,ZR201801-202104

DK.RED M.M,3Q3

main76085-58900-E2iAGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X)201801-202104

STEEL BLONDE ME.,4X1

main76085-58900-E3iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD201801-202104

GRAPHITE ME.,4X7

main76085-58900-J0iAGH3#,AYH30,GGH3#201501-201801

GRAYISH BLUE M.M.,8V5

76887SEAL, REAR SPOILER

main76887-58050iAGH3#,AYH30,GGH3#201501-202104

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)201501-202104

76889HSEAL, REAR SPOILER, NO.1

main76889-28020iAGH3#,AYH30,GGH3#201501-202104

76893COVER, REAR SPOILER, NO.1

main76893-58030iAGH3#,AYH30,GGH3#201501-202104

8117

8502

8504

7681760030CLIP, BACK DOOR OUTSIDE GARNISH

main76817-60030

9010506333

main90105-06333

9015960602

main90159-60602

9017904001

main90179-04001

9018206011

main90182-06011

9018906155

main90189-06155

18 parts on this diagram · 3 diagrams in section
