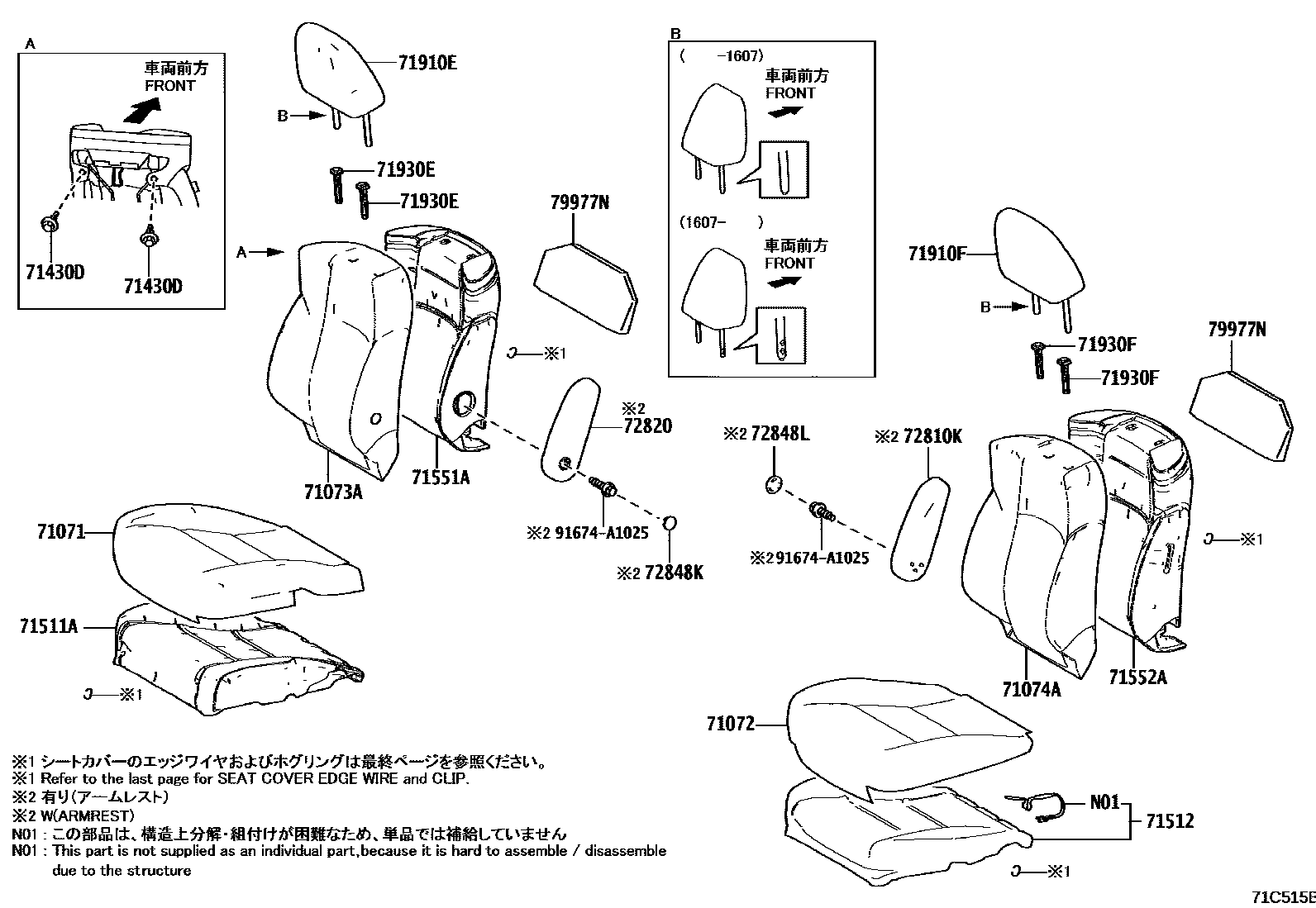

FRONT SEAT & SEAT TRACK

0001 1�������� 0002 1������ �������� 0003 1������ �������� 0004 1������� �������� 0005 1������� �������� 0006 1������������������� 0008 1������������������� 0010 1������ ������� 0011 1������ ������� 0012 1������ ������� 0013 1������� ������� 0014 1������� ������� 0015 1������� ������� 0016 1������� �������, ����� 0017 1������ ������� 0018 1������ ������� 0019 1������ ������� 0020 1������� ������� 0021 1������� ������� 0022 1������� ������� 0023 1������� �������, ����� 0024 1������������ 0025 1�������������� & �������

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-58380-A2iAGH3#..X201501-201801

FLAXEN,TRIM0#

main71071-58380-C3iAGH3#,GGH3#..S,SA,Z,ZA201501-201801

BLACK,TRIM2#

main71071-58390-A2iAGH3#,AYH30,GGH3#..G,GF,V,VL201501-201801

FLAXEN,TRIM0#

main71071-58390-C1iAYH30..SR,ZR201501-201801

BLACK,TRIM2#

main71071-58410-A0iAYH30,GGH3#..EL201501-201611

FLAXEN,TRIM0#

main71071-58410-C1iAYH30,GGH3#..EL201501-201611

BLACK,TRIM2#

main71071-58411-A0iAYH30,GGH3#..EL201611-201801

FLAXEN,TRIM0#

main71071-58411-C1iAYH30,GGH3#..EL201611-201801

BLACK,TRIM2#

main71071-58450-C1iAYH30..S202105-202205

BLACK COLOR PERFO TAN,TRIM2#

main71071-58450-C1iAYH30..Z202105-202205

main71071-58460-A0iAYH30..X201501-201801

FLAXEN,TRIM0#

main71071-58500-A2iAGH3#..VFIRE..X201801-202104

FLAXEN,TRIM0#

main71071-58500-C2iAGH3#..08S..Z201801-202105

BLACK,TRIM2#

main71071-58510-A2iAYH30..G202104

FLAXEN,TRIM0#

main71071-58510-C3iGGH3#..SC201801-202001

main71071-58510-C3iGGH3#..SC201801-202104

BLACK,TRIM2#

main71071-58530-A2iAYH30,GGH3#..ALPHD..(EL,ELS)201801-202105

FLAXEN,TRIM0#

main71071-58530-A3iAYH30,GGH3#..ELS,ELZ201801-202001

WHITE,TRIM22

main71071-58530-C1iAYH30,GGH3#..ELS,ELZ201801-202105

BLACK,TRIM2#

main71071-58530-C1iAYH30,GGH3#..ELS,ELZ201801-202001

BLACK,TRIM21

main71071-58560-A2iAYH30..X201801-202104

FLAXEN,TRIM0#

main71071-58560-C2iAYH30..S201801-202105

BLACK,TRIM2#

main71071-58600-A1iAGH3#,AYH30,GGH3#..G,GF,V,VL201801-202104

FLAXEN,TRIM0#

main71071-58600-C1iAYH30..SR,ZR201801-202104

BLACK,TRIM2#

main71071-58610-C1iAGH3#..07S..S202105-202205

main71071-58610-C1iAGH3#..07S..S202105-202205

BLACK COLOR PERFO TAN,TRIM2#

main71071-V2010-C0iAGH3#..07S..Z202205

BLACK/GOLD,TRIM2#

main71071-V2010-C0iAGH3#..07S..Z202205

main71071-V2020-C0iAYH30..Z202205

BLACK/GOLD,TRIM2#

main71071-V2020-C0iAYH30..Z202205

71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH

main71072-58370-A2iAGH3#..X201501-201801

FLAXEN,TRIM0#

main71072-58370-C3iAGH3#..S,Z201501-201801

BLACK,TRIM2#

main71072-58380-A2iAYH30..G,V;AGH3#..08S..(G,V)201501-201801

FLAXEN,TRIM0#

main71072-58380-A2iAYH30..G,V;AGH3#..08S..(G,V)201501-201801

main71072-58380-C1iAYH30..SR,ZR201501-201801

BLACK,TRIM2#

main71072-58400-A0iAYH30,GGH3#..EL201501-201611

FLAXEN,TRIM0#

main71072-58400-C1iAYH30,GGH3#..EL201501-201611

BLACK,TRIM2#

main71072-58401-A0iAYH30,GGH3#..EL201611-201801

FLAXEN,TRIM0#

main71072-58401-C1iAYH30,GGH3#..EL201611-201801

BLACK,TRIM2#

main71072-58430-C2iGGH3#..SA,ZA201501-201801

main71072-58430-C2iGGH3#..SA,ZA201501-201801

BLACK,TRIM2#

main71072-58440-A2iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201801

FLAXEN,TRIM0#

main71072-58460-A0iAYH30..X201501-201801

FLAXEN,TRIM0#

main71072-58500-A2iAGH3#..X201801-202104

FLAXEN,TRIM0#

main71072-58500-C2iAGH3#..08S..Z201801-202105

BLACK,TRIM2#

main71072-58510-A2iAYH30..G202104

FLAXEN,TRIM0#

main71072-58510-C3iAGH3#..07S..S201801-202001

main71072-58510-C3iGGH3#..ZG201801-202104

BLACK,TRIM2#

main71072-58530-A2iAYH30,GGH3#..EL201801-202105

FLAXEN,TRIM0#

main71072-58530-A3iAYH30,GGH3#..ELS,ELZ201801-202001

WHITE,TRIM22

main71072-58530-C1iAYH30,GGH3#..EL201801-202001

BLACK,TRIM21

main71072-58530-C1iAYH30,GGH3#..ELS,ELZ201801-202105

BLACK,TRIM2#

main71072-58570-A2iAYH30..X201801-202104

FLAXEN,TRIM0#

main71072-58570-C2iAYH30..Z201801-202105

BLACK,TRIM2#

main71072-58600-A1iAYH30..G,V;AGH3#,GGH3#..V,VL201801-202104

FLAXEN,TRIM0#

main71072-58600-C1iAYH30..SR,ZR201801-202104

BLACK,TRIM2#

main71072-58610-C1iAGH3#..07S..S202105-202205

BLACK COLOR PERFO TAN,TRIM2#

main71072-58610-C1iAGH3#..07S..Z202105-202205

main71072-58620-C1iAYH30..S202105-202205

BLACK COLOR PERFO TAN,TRIM2#

main71072-58620-C1iAYH30..S202105-202205

main71072-V2010-C0iAGH3#..07S..Z202205

BLACK/GOLD,TRIM2#

main71072-V2010-C0iAGH3#..07S..Z202205

main71072-V2020-C0iAYH30..Z202205

main71072-V2020-C0iAYH30..S202205

BLACK/GOLD,TRIM2#

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-58630-A3iAGH3#..X201501-201801

FLAXEN,TRIM0#

main71073-58630-C5iAGH3#,GGH3#..S,SA,Z,ZA201501-201801

BLACK,TRIM2#

main71073-58640-A3iAYH30..X201501-201801

FLAXEN,TRIM0#

main71073-58670-A2iAYH30,GGH3#..EL201501-201611

FLAXEN,TRIM0#

main71073-58670-C4iAYH30,GGH3#..EL201501-201611

BLACK,TRIM2#

main71073-58671-A2iAYH30,GGH3#..EL201611-201801

FLAXEN,TRIM0#

main71073-58671-C4iAYH30,GGH3#..EL201611-201801

BLACK,TRIM2#

main71073-58690-A3iAYH30..G,V201501-201801

FLAXEN,TRIM0#

main71073-58690-C3iAYH30..SR,ZR201501-201801

BLACK,TRIM2#

main71073-58700-A3iAGH3#,GGH3#..G,GF,V,VL201501-201801

FLAXEN,TRIM0#

main71073-58760-A2iAGH3#..X201801-202001

FLAXEN,TRIM0#

main71073-58760-C4iAGH3#..S,Z201801-202001

BLACK,TRIM2#

main71073-58770-A2iAYH30..X201801-202001

FLAXEN,TRIM0#

main71073-58770-C2iAYH30..S,Z201801-202001

BLACK,TRIM2#

main71073-58780-A2iAYH30..G202104-202105

FLAXEN,TRIM0#

main71073-58780-C4iAGH3#..07S..(S,Z)201801-202001

main71073-58780-C4iGGH3#..SC,ZG201801-202105

BLACK,TRIM2#

main71073-58800-A2iAYH30,GGH3#..VFIRE..(EL,ELZ)201801-202105

FLAXEN,TRIM0#

main71073-58800-A3iAYH30,GGH3#..ELS,ELZ201801-202001

WHITE,TRIM22

main71073-58800-C1iAYH30,GGH3#..EL201801-202001

BLACK,TRIM21

main71073-58800-C1iAYH30,GGH3#..VFIRE..(EL,ELZ)201801-202105

BLACK,TRIM2#

main71073-58870-A2iAGH3#,GGH3#..G,GF201801-202104

FLAXEN,TRIM0#

main71073-58870-C3iAYH30..SR,ZR201801-202104

BLACK,TRIM2#

main71073-58A50-C1iAGH3#..07S..Z202105-202205

BLACK COLOR PERFO TAN,TRIM2#

main71073-58A50-C1iAGH3#..07S..Z202105-202205

main71073-58A60-C1iAYH30..S202105-202205

BLACK COLOR PERFO TAN,TRIM2#

main71073-58A60-C1iAYH30..Z202105-202205

main71073-58A80-A0iAGH3#..VFIRE..X202001-202104

FLAXEN,TRIM0#

main71073-58A80-C0iAGH3#..S202001-202105

BLACK,TRIM2#

main71073-58A90-A0iAYH30..ALPHD..X202001-202104

FLAXEN,TRIM0#

main71073-58A90-C0iAYH30..S202001-202105

BLACK,TRIM2#

main71073-V2010-C0iAGH3#..07S..Z202205

BLACK/GOLD,TRIM2#

main71073-V2010-C0iAGH3#..07S..Z202205

main71073-V2020-C0iAYH30..Z202205

BLACK/GOLD,TRIM2#

main71073-V2020-C0iAYH30..Z202205

71074ACOVER SUB-ASSY, FRONT SEATBACK, LH

main71074-58610-A3iAGH3#..X201501-201801

FLAXEN,TRIM0#

main71074-58610-C5iAGH3#..S,Z201501-201801

BLACK,TRIM2#

main71074-58620-A3iAGH3#..08S..(G,V)201501-201801

FLAXEN,TRIM0#

main71074-58620-A3iAGH3#..08S..(G,V)201501-201801

main71074-58650-A2iAYH30,GGH3#..EL201501-201611

FLAXEN,TRIM0#

main71074-58650-C4iAYH30,GGH3#..EL201501-201611

BLACK,TRIM2#

main71074-58651-A2iAYH30,GGH3#..EL201611-201801

FLAXEN,TRIM0#

main71074-58651-C4iAYH30,GGH3#..EL201611-201801

BLACK,TRIM2#

main71074-58690-A3iAYH30..X201501-201801

FLAXEN,TRIM0#

main71074-58700-A3iAYH30..G,V201501-201801

FLAXEN,TRIM0#

main71074-58700-C3iAYH30..SR,ZR201501-201801

BLACK,TRIM2#

main71074-58710-C3iGGH3#..SA,ZA201501-201801

main71074-58710-C3iGGH3#..SA,ZA201501-201801

BLACK,TRIM2#

main71074-58720-A1iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201801

FLAXEN,TRIM0#

main71074-58760-A2iAGH3#..X201801-202001

FLAXEN,TRIM0#

main71074-58760-C4iAGH3#..S,Z201801-202001

BLACK,TRIM2#

main71074-58770-A2iAYH30..X201801-202001

FLAXEN,TRIM0#

main71074-58770-C2iAYH30..S,Z201801-202001

BLACK,TRIM2#

main71074-58780-A2iAYH30..G202104

FLAXEN,TRIM0#

main71074-58780-C4iAGH3#..07S..S201801-202104

BLACK,TRIM2#

main71074-58780-C4iGGH3#..SC,ZG201801-202001

main71074-58800-A2iAYH30,GGH3#..EL201801-202105

FLAXEN,TRIM0#

main71074-58800-A3iAYH30,GGH3#..ELS,ELZ201801-202001

WHITE,TRIM22

main71074-58800-C1iAYH30,GGH3#..ELS,ELZ201801-202105

BLACK,TRIM2#

main71074-58800-C1iAYH30,GGH3#..ELS,ELZ201801-202001

BLACK,TRIM21

main71074-58860-A2iAYH30..G,V;AGH3#,GGH3#..V,VL201801-202104

FLAXEN,TRIM0#

main71074-58860-C3iAYH30..SR,ZR201801-202104

BLACK,TRIM2#

main71074-58A10-C1iAGH3#..07S..Z202105-202205

BLACK COLOR PERFO TAN,TRIM2#

main71074-58A10-C1iAGH3#..07S..Z202105-202205

main71074-58A20-C1iAYH30..Z202105-202205

BLACK COLOR PERFO TAN,TRIM2#

main71074-58A20-C1iAYH30..Z202105-202205

main71074-58A40-A0iAGH3#..VFIRE..X202001-202104

FLAXEN,TRIM0#

main71074-58A40-C0iAGH3#..S202001-202105

BLACK,TRIM2#

main71074-58A50-A0iAYH30..ALPHD..X202001-202104

FLAXEN,TRIM0#

main71074-58A50-C0iAYH30..S202001-202105

BLACK,TRIM2#

main71074-V2010-A0iAYH30,GGH3#..ALPHD..(EL,ELS)202105

FLAXEN,TRIM0#

main71074-V2010-C0iAYH30,GGH3#..ALPHD..(EL,ELS)202105

BLACK,TRIM2#

main71074-V2020-C0iAGH3#..07S..Z202205

main71074-V2020-C0iAGH3#..07S..Z202205

BLACK/GOLD,TRIM2#

main71074-V2030-C0iAYH30..Z202205

BLACK/GOLD,TRIM2#

main71074-V2030-C0iAYH30..Z202205

71430DCLIP(FOR SEATBACK COVER)

main90467-08185iAGH3#,AYH30,GGH3#¥90201501-202104

71511APAD, FRONT SEAT CUSHION, RH

main71511-58100iAGH3#,AYH30,GGH3#..S,SA,X,Z,ZA¥9,100201501-202104

main71511-58110iAGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR¥10,900201501-201801

main71511-58130iGGH3#..ZG¥9,100202001-202104

main71511-58130iAYH30,GGH3#..EL,ELS,ELZ,SC,ZG¥9,100201801-202001

main71511-58130iAYH30,GGH3#..EL,ELS,ELZ,SC,ZG¥9,100201801-202105

main71511-58130iAYH30,GGH3#..EL,ELS,ELZ,SC,ZG¥9,100201801-202001

main71511-58130iAYH30..G,SR¥9,100202104

main71511-58150iAYH30,GGH3#..G,GF,V,VL¥10,900201501-201801

main71511-58150iAYH30,GGH3#..G,GF,V,VL¥10,900201501-201801

main71511-58150iAGH3#,AYH30,GGH3#..07S..(S,SA,SR,Z,ZA,ZR)¥10,900201501-201801

main71511-58160iAYH30..G,SR,V,ZR;AGH3#,GGH3#..V,VL¥9,100201801-202104

71512PAD, FRONT SEAT CUSHION, LH

main71502-58060iAGH3#,AYH30..S,X,Z¥13,900201501-202104

main71502-58070iAYH30..G,SR,V,ZR;AGH3#..08S..(G,V)¥20,800201501-201801

main71502-58090iAYH30,GGH3#..EL¥20,800201501-201801

main71502-58090iAYH30,GGH3#..EL¥20,800201501-201801

main71502-58090iAYH30,GGH3#..EL¥20,800201501-201801

main71502-58100iAGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA)¥21,900201501-201801

main71502-58110iAYH30,GGH3#..EL,ELS,ELZ,SC,ZG¥17,000201801-202001

main71502-58110iAYH30,GGH3#..G,GF,V,VL¥17,000201801-202105

main71502-58110iAYH30,GGH3#..G,GF,V,VL¥17,000201801-202001

main71502-58110iGGH3#..ZG¥17,000202001-202104

main71502-58110iAYH30..G,SR¥17,000202104

main71502-58120iAGH3#,GGH3#..G,GF¥17,000201801-202104

71551APAD, FRONT SEATBACK, RH

main71551-58160iAGH3#,GGH3#..G,GF,S,SA,V,VL,X,Z,ZA¥11,200201501-202104

main71551-58170iAYH30,GGH3#..G,GF,V,VL¥10,900201501-201801

main71551-58170iAGH3#,GGH3#..07S..(S,SA,Z,ZA)¥10,900201501-201801

main71551-58170iAGH3#,GGH3#..07S..(S,SA,Z,ZA)¥10,900201501-201801

main71551-58190iAYH30..G,SR,V,X,ZR¥11,200201501-202104

main71551-58210iAYH30,GGH3#..EL,ELS,ELZ,SC,ZG¥11,200201801-202001

main71551-58210iAYH30,GGH3#..EL,ELS,ELZ,SC,ZG¥11,200201801-202105

main71551-58210iAYH30,GGH3#..EL,ELS,ELZ,SC,ZG¥11,200201801-202001

main71551-58210iAYH30..G,SR¥11,200202104

main71551-58210iAGH3#..07S..S¥11,200202001-202104

main71551-58230iAGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR¥11,200201801-202104

71552APAD, FRONT SEATBACK, LH

main71552-58140iAGH3#..S,X,Z;AGH3#..08S..(G,V)¥11,200201501-201801

main71552-58140iAGH3#..S,X,Z¥11,200201801-202104

main71552-58150iAYH30,GGH3#..G,GF,V,VL¥10,900201501-201801

main71552-58150iAYH30,GGH3#..EL¥10,900201501-201801

main71552-58150iAYH30,GGH3#..EL¥10,900201501-201801

main71552-58170iAYH30..S,X,Z¥11,200201501-202104

main71552-58180iAGH3#..07S..(S,Z)¥15,200201501-201801

main71552-58230iAYH30,GGH3#..G,GF,V,VL¥9,100201801-202105

main71552-58230iAYH30,GGH3#..G,GF,V,VL¥9,100201801-202001

main71552-58230iAGH3#..07S..(S,Z)¥9,100201801-202001

main71552-58230iGGH3#..SC¥9,100202001-202104

main71552-58230iAYH30..G,SR¥9,100202104

main71552-58240iAYH30..G,SR,V,ZR;AGH3#,GGH3#..V,VL¥9,100201801-202104

main71552-V2010iAYH30,GGH3#..ALPHD..(EL,ELS)¥11,100202105

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-58240-A1iAGH3#,AYH30..X201501-201607

FLAXEN,TRIM0#

main71910-58240-C2iAGH3#,GGH3#..S,SA,Z,ZA201501-201607

BLACK,TRIM2#

main71910-58241-A1iAGH3#,AYH30..X201607-201801

FLAXEN,TRIM0#

main71910-58241-C2iAGH3#,GGH3#..S,SA,Z,ZA201607-201801

BLACK,TRIM2#

main71910-58250-A0iAGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR201501-201607

FLAXEN,TRIM0#

main71910-58250-C1iAYH30..SR,ZR201501-201607

BLACK,TRIM2#

main71910-58251-A0iAGH3#,AYH30..ALPHD..X201607-202104

FLAXEN,TRIM0#

main71910-58251-C1iAGH3#,AYH30..S201607-202105

BLACK,TRIM2#

main71910-58270-A0iAYH30,GGH3#..EL201501-201607

FLAXEN,TRIM0#

sub71910-58340¥31,100

sub71910-58270¥32,400

main71910-58270-C0iAYH30,GGH3#..EL201501-201607

BLACK,TRIM2#

sub71910-58340¥31,100

sub71910-58270¥32,400

main71910-58280-A2iAYH30..G202104

FLAXEN,TRIM0#

main71910-58280-C2iAGH3#..07S..S201801-202001

main71910-58280-C2iAGH3#..07S..S201801-202104

BLACK,TRIM2#

main71910-58332-A1iGGH3#..EL201801-202105

FLAXEN,TRIM0#

sub71910-58332¥19,000

main71910-58332-A1iAYH30..EL201801-202001

sub71910-58332¥19,000

main71910-58332-C0iAGH3#..07S..(S,Z)201801-202105

BLACK,TRIM2#

sub71910-58332¥19,000

main71910-58332-C0iGGH3#..EL,ELS,ELZ201801-202001

BLACK,TRIM21

sub71910-58332¥19,000

main71910-58332-C0iGGH3#..EL,ELS,ELZ201801-202001

sub71910-58332¥19,000

main71910-58332-C0iGGH3#..EL,ELS,ELZ201801-202001

sub71910-58332¥19,000

main71910-58341-A0iAYH30,GGH3#..EL201607-201801

FLAXEN,TRIM0#

sub71910-58332¥19,000

main71910-58341-C0iAYH30,GGH3#..EL201607-201801

BLACK,TRIM2#

sub71910-58332¥19,000

main71910-58350-A1iAGH3#,AYH30,GGH3#..G,GF,V,VL201801-202104

FLAXEN,TRIM0#

main71910-58350-C3iAYH30..SR,ZR201801-202104

BLACK,TRIM2#

main71910-58350-C4iAGH3#..07S..S202105-202205

BLACK,TRIM2#

main71910-58350-C4iAGH3#..07S..S202105-202205

main71910-58350-C4iAGH3#..07S..S202105-202205

main71910-58350-C5iAGH3#..07S..S202205

main71910-58350-C5iAGH3#,AYH30..07S..Z202205

main71910-58350-C5iAYH30..S202205

BLACK,TRIM2#

main71910-58370-A3iGGH3#..ELS,ELZ201801-202001

WHITE,TRIM22

sub71910-58332¥19,000

main71910-58370-A3iGGH3#..ELS,ELZ201801-202001

WHITE,TRIM2#

sub71910-58332¥19,000

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-58240-A1iAGH3#,AYH30..X201501-201607

FLAXEN,TRIM0#

main71910-58240-C2iAGH3#..S,Z201501-201607

BLACK,TRIM2#

main71910-58241-A1iAGH3#,AYH30..X201607-201801

FLAXEN,TRIM0#

main71910-58241-C2iAGH3#..S,Z201607-201801

BLACK,TRIM2#

main71910-58250-A0iAYH30..G,SR,V,ZR;AGH3#..08S..(G,V)201501-201607

main71910-58250-A0iAYH30..G,SR,V,ZR;AGH3#..08S..(G,V)201501-201607

FLAXEN,TRIM0#

main71910-58250-C1iAYH30..SR,ZR201501-201607

BLACK,TRIM2#

main71910-58251-A0iAGH3#,GGH3#..07S..(G,GF,V,VL)201607-201801

main71910-58251-A0iGGH3#..GF,VL201607-202104

FLAXEN,TRIM0#

main71910-58251-A0iGGH3#..GF,VL201607-201801

main71910-58251-A0iGGH3#..GF,VL201607-201801

main71910-58251-C1iAYH30..SR,ZR201607-202105

BLACK,TRIM2#

main71910-58270-A0iAYH30,GGH3#..EL201501-201607

FLAXEN,TRIM0#

sub71910-58340¥31,100

sub71910-58270¥32,400

main71910-58270-C0iAYH30,GGH3#..EL201501-201607

BLACK,TRIM2#

sub71910-58340¥31,100

sub71910-58270¥32,400

main71910-58280-A2iAYH30..G202104

FLAXEN,TRIM0#

main71910-58280-C2iGGH3#..SC,ZG201801-202001

main71910-58280-C2iAGH3#..07S..(S,Z)201801-202104

BLACK,TRIM2#

main71910-58332-A1iGGH3#..EL201801-202001

sub71910-58332¥19,000

main71910-58332-A1iAYH30,GGH3#..G,GF,V,VL201801-202105

FLAXEN,TRIM0#

sub71910-58332¥19,000

main71910-58332-C0iAYH30..EL,ELS,ELZ201801-202001

sub71910-58332¥19,000

main71910-58332-C0iGGH3#..EL,ELS,ELZ201801-202105

BLACK,TRIM2#

sub71910-58332¥19,000

main71910-58332-C0iGGH3#..EL,ELS,ELZ201801-202001

BLACK,TRIM21

sub71910-58332¥19,000

main71910-58332-C0iGGH3#..EL,ELS,ELZ201801-202001

sub71910-58332¥19,000

main71910-58341-A0iAYH30,GGH3#..EL201607-201801

FLAXEN,TRIM0#

sub71910-58332¥19,000

main71910-58341-C0iAYH30,GGH3#..EL201607-201801

BLACK,TRIM2#

sub71910-58332¥19,000

main71910-58350-A1iAGH3#,AYH30,GGH3#..G,GF,V,VL201801-202104

FLAXEN,TRIM0#

main71910-58350-C3iAYH30..SR,ZR201801-202104

BLACK,TRIM2#

main71910-58350-C4iAGH3#..07S..S202105-202205

BLACK,TRIM2#

main71910-58350-C4iAGH3#..07S..S202105-202205

main71910-58350-C4iAGH3#..07S..S202105-202205

main71910-58350-C5iAYH30..S202205

main71910-58350-C5iAGH3#..07S..S202205

main71910-58350-C5iAGH3#,AYH30..07S..Z202205

BLACK,TRIM2#

main71910-58370-A3iGGH3#..ELS,ELZ201801-202001

WHITE,TRIM2#

sub71910-58332¥19,000

main71910-58370-A3iAYH30..ELS,ELZ201801-202001

WHITE,TRIM22

sub71910-58332¥19,000

main71910-V2010-A0iAYH30,GGH3#..ALPHD..(EL,ELS)202105

FLAXEN,TRIM0#

main71910-V2010-C0iAYH30,GGH3#..ALPHD..(EL,ELS)202105

BLACK,TRIM2#

main71920-58010-C2iAGH3#..07S..(S,Z)201501-201801

BLACK,TRIM2#

main71920-58010-C2iGGH3#..SA,ZA201501-201801

main71920-58020-A0iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201801

FLAXEN,TRIM0#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-47020-A7iAGH3#,AYH30,GGH3#..ALPHD..(EL,ELS,G,GF,X)201501-202105

sub71930-47020¥1,040

main71930-47020-C0iAGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR201501-201710

sub71930-47020¥1,040

main71930-47020-C4iAGH3#..08S..Z;AYH30,GGH3#..ZG,ZR201710-202105

sub71930-47020¥1,040

main71931-47020-A7iAGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR201501-202105

sub71931-47020¥630

main71931-47020-C0iAGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR201501-201710

sub71931-47020¥630

main71931-47020-C4iAGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR201710-202105

sub71931-47020¥630

71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH

main71930-47020-A7iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,X)201501-202105

sub71930-47020¥1,040

main71930-47020-C0iAGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR201501-201710

sub71930-47020¥1,040

main71930-47020-C4iAGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR201710-202105

sub71930-47020¥1,040

main71930-62010-A0iAYH30,GGH3#..ALPHD..(EL,ELS)202105

main71930-62010-C0iAYH30,GGH3#..ALPHD..(EL,ELS)202105

main71930-62020-A0iAYH30,GGH3#..ALPHD..(EL,ELS)202105

main71930-62020-C0iAYH30,GGH3#..ALPHD..(EL,ELS)202105

main71931-47020-A7iAYH30,GGH3#..EL,ELS,ELZ201501-202105

sub71931-47020¥630

main71931-47020-C0iAGH3#..07S;AGH3#..08S..(S,X,Z);AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR201501-201710

sub71931-47020¥630

main71931-47020-C4iAGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR201710-202105

sub71931-47020¥630

72810KARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)

main72810-58080-A1iAGH3#..X201501-201801

FLAXEN,TRIM0#

main72810-58080-C1iAGH3#..S,Z201501-201801

BLACK,TRIM2#

main72810-58090-A1iAGH3#..08S..(G,V)201501-201801

main72810-58090-A1iAGH3#..08S..(G,V)201501-201801

FLAXEN,TRIM0#

main72810-58090-C1iAGH3#..07S..Z202105

BLACK,TRIM2#

main72810-58130-A2iAGH3#..VFIRE..X201801-202104

FLAXEN,TRIM0#

main72810-58130-C2iAGH3#..07S..Z201801-202105

BLACK,TRIM2#

main72880-58A50-C1iAGH3#..07S..(S,Z)201501-201801

BLACK,TRIM2#

main72880-58A50-C1iGGH3#..SA,ZA201501-201801

main72880-58A60-A0iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201801

FLAXEN,TRIM0#

72820ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

main72820-58080-A1iAGH3#..X201501-201801

FLAXEN,TRIM0#

main72820-58080-C1iAGH3#,GGH3#..S,SA,Z,ZA201501-201801

BLACK,TRIM2#

main72820-58090-A1iAGH3#,GGH3#..G,GF,V,VL201501-201801

FLAXEN,TRIM0#

main72820-58090-C1iAGH3#..07S..Z202105

BLACK,TRIM2#

main72820-58130-A2iAGH3#..ALPHD..X201801-202104

FLAXEN,TRIM0#

main72820-58130-C2iAGH3#..S201801-202105

BLACK,TRIM2#

72848KCAP, SEAT ARMREST, NO.1(FOR RH SEAT)

main72848-28030-A3iAGH3#..X201501-202104

FLAXEN,TRIM0#

sub72848-28030¥360

main72848-28030-C0iAGH3#..08S..Z201501-202104

BLACK,TRIM2#

sub72848-28030¥360

72848LCAP, SEAT ARMREST, NO.1(FOR LH SEAT)

main72848-28030-A3iAGH3#..X201501-202104

FLAXEN,TRIM0#

sub72848-28030¥360

main72848-28030-C0iAGH3#..S;AGH3#..07S..Z201501-202104

BLACK,TRIM2#

sub72848-28030¥360

79977NFELT, SEATBACK

main79977-58030iAGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA)¥400201501-201801

main79977-58030iAGH3#..07S..(S,Z)¥400201501-201801

main79977-58030iAGH3#..07S..(S,Z)¥400201501-201801

main79977-58030iAGH3#..07S..(S,Z)¥400201501-201801

main79977-58030iAGH3#..07S..(S,Z)¥400201501-201801

main79977-58030iAGH3#..07S..(S,Z)¥400201801-202001

main79977-58030iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR)¥400202001-202105

91674A1025

main91674-A1025¥120

19 parts on this diagram · 23 diagrams in section
