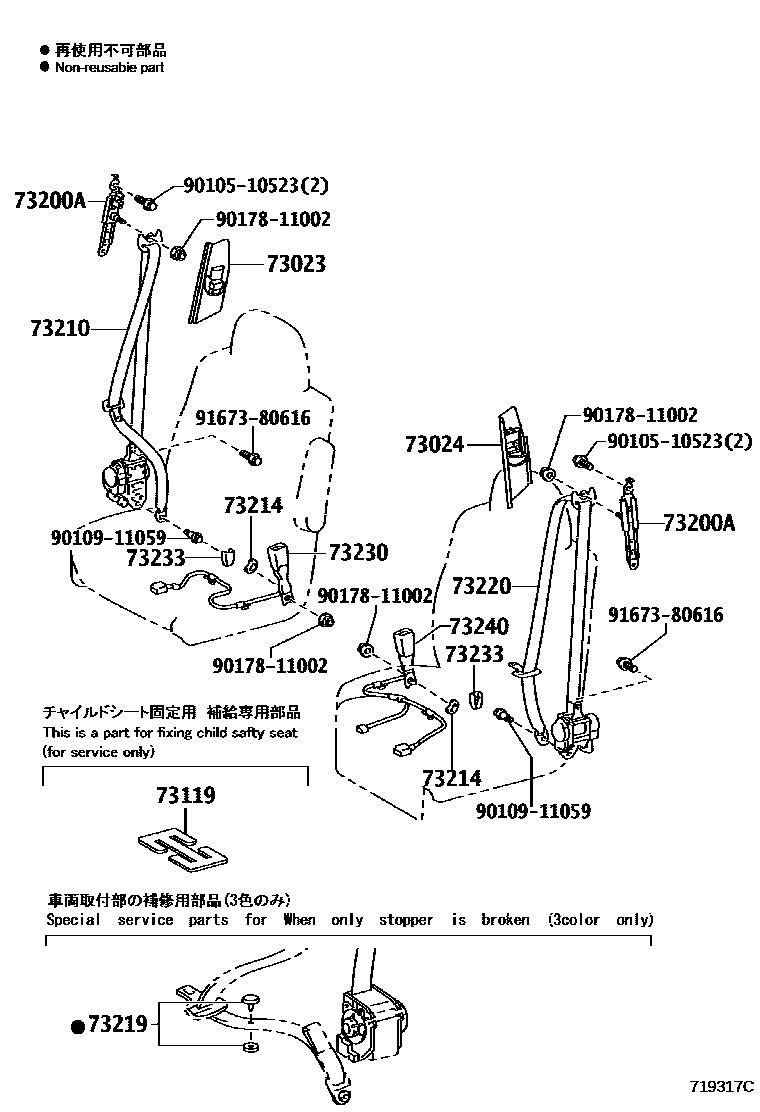

SEAT BELT

0001 1������� 0002 1�������(������� ������������)0004 1��NO.1��� 0005 1��NO.1���(��������������) 0006 1��NO.1��� 0007 1��NO.1���(���������) 0008 1��NO.2���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-A0iAGH3#,AYH30,GGH3#201501-201801

FLAXEN,TRIM0#

main73023-58010-B0iAGH3#..07S..(S,Z)201607-201801

main73023-58010-C0iAGH3#..07S..(S,Z)201607-201610

main73023-58010-C1iAYH30,GGH3#..EL201610-201801

BLACK,TRIM21

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-A0iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201801

main73024-58010-B0iAGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30..G,SR,V,X,ZR201501-201801

main73024-58010-C0iAYH30,GGH3#..EL201501-201801

BLACK,TRIM2#

main73024-58010-C1iAYH30,GGH3#..ALPHD..(EL,ELS)202001

BLACK,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAGH3#,AYH30,GGH3#201801-202001

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-58060-A0iAGH3#,AYH30,GGH3#..EL,G,GF,S,SR,V,VL,X,Z,ZR201501-201607

main73210-58060-C0iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR201501-201607

BLACK/LT.GRAY,TRIM2#

main73210-58060-C1iAYH30,GGH3#..EL201501-201607

BLACK/BLACK,TRIM2#

main73210-58061-A0iAGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X201607-201801

FLAXEN,TRIM0#

main73210-58061-C1iAGH3#,AYH30,GGH3#..EL,S,SA,SR,Z,ZA,ZR201607-201801

BLACK/BLACK,TRIM2#

main73210-58062-A0iAGH3#,AYH30,GGH3#..EL,G,GF,V,VL,X201801-202001

FLAXEN,TRIM0#

main73210-58062-C1iAGH3#,AYH30,GGH3#..EL,ELS,ELZ,S,SC,SR,Z,ZG,ZR201801-202001

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201801

73219STOPPER, TONGUE PLATE

main73219-33010iAGH3#,AYH30,GGH3#201801-202001

main73219-33020iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

main73219-33030iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-58060-A0iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201607

main73220-58060-C0iAGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30..G,SR,V,X,ZR201501-201607

main73220-58060-C1iAYH30,GGH3#..EL201501-201607

BLACK/BLACK,TRIM2#

main73220-58061-A0supersedes 73220-58071-A0iAGH3#..X;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,V,X201607-201801

main73220-58061-C1supersedes 73220-58071-C0iAGH3#,AYH30,GGH3#..EL,S,SR,Z,ZR201607-201801

main73220-58062-A0iAGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X)202001-202104

FLAXEN,TRIM0#

main73220-58062-C1iAGH3#..08S..Z;AYH30,GGH3#..VFIRE..(EL,ELZ,ZG,ZR)202001-202104

BLACK,TRIM2#

main73220-58070-A0iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201606

FLAXEN,TRIM0#

sub73220-58071

main73220-58070-C0iAGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA)201501-201606

sub73220-58071

main73220-58072-C0iAGH3#..07S..(S,Z)201801-202001

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-58110-A0iAGH3#,AYH30..S,X,Z201501-201801

FLAXEN,TRIM0#

main73230-58110-C0iAGH3#,AYH30,GGH3#..S,SA,X,Z,ZA201501-201801

BLACK,TRIM2#

main73230-58111-A0iAGH3#,AYH30..X201801-202001

FLAXEN,TRIM0#

main73230-58111-C0iAGH3#,AYH30..S,Z201801-202001

BLACK,TRIM2#

main73230-58120-A0iAGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR201501-201801

main73230-58120-C0iAGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR201501-201801

main73230-58121-A0iAGH3#,AYH30,GGH3#..ALPHD..(EL,ELS,G,GF)202001

FLAXEN,TRIM0#

main73230-58121-C0iAGH3#..07S..(S,Z)201801-202001

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0×2iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201610

BLACK,TRIM0#,2#

main73233-60020-C1×2supersedes 73233-60020-C1iAGH3#,GGH3#..07S..(G,GF,V,VL)201610-201801

BLACK,TRIM0#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-58100-C0iAGH3#,GGH3#..07S..(G,GF,SA,V,VL,ZA)201501-201801

main73240-58110-A0iAGH3#,AYH30..S,X,Z201501-201801

FLAXEN,TRIM0#

main73240-58110-C0iAGH3#,AYH30..S,X,Z201501-201801

BLACK,TRIM2#

main73240-58111-A0iAGH3#,AYH30..X201801-202001

FLAXEN,TRIM0#

main73240-58111-C0iAGH3#,AYH30..S,Z201801-202001

BLACK,TRIM2#

main73240-58120-A0supersedes 73240-58100-A0iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201801

main73240-58120-C0iAGH3#,GGH3#..07S..(G,GF,V,VL)201501-201801

main73240-58121-A0iAGH3#,AYH30,GGH3#..ALPHD..(EL,ELS,G,GF)202001

FLAXEN,TRIM0#

main73240-58121-C0iAGH3#..07S..(S,Z)201801-202001

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9167380616

main91673-80616

15 parts on this diagram · 7 diagrams in section
