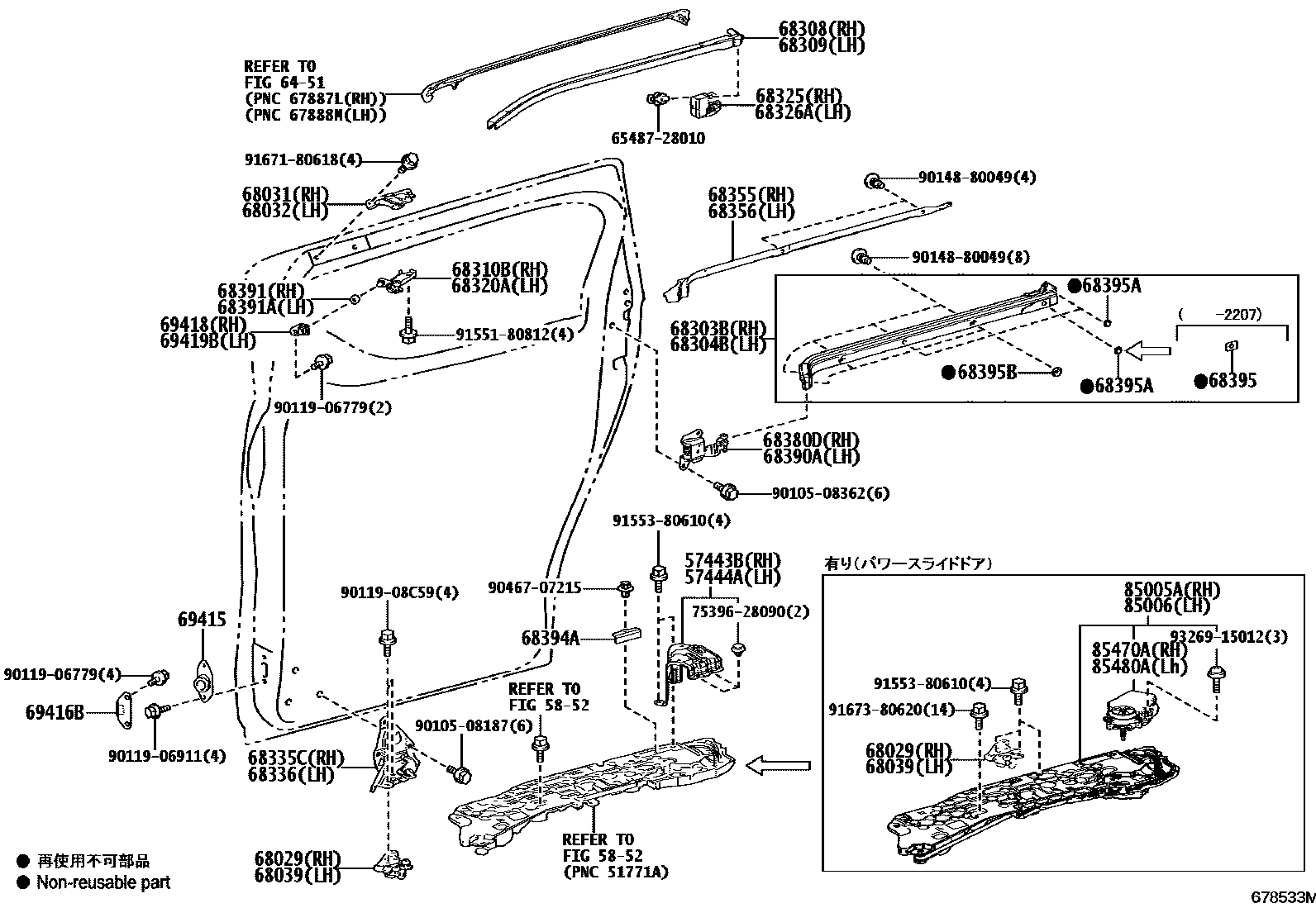

SLIDE ROLLER & RAIL

57443BSUPPORT, SIDE STEP, REAR RH

main51078-58010iAGH3#,AYH30,GGH3#¥1,760201501-202104

57444ASUPPORT, SIDE STEP, REAR LH

main51079-58010iAGH3#,AYH30,GGH3#¥1,760201501-202104

5852

6451

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-58030iAGH3#,AYH30,GGH3#¥3,290201501-202104

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68381-58030iAGH3#,AYH30,GGH3#¥1,060201501-202104

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68382-58030iAGH3#,AYH30,GGH3#¥1,060201501-202104

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-58030iAGH3#,AYH30,GGH3#¥3,380201501-202104

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-58040iAGH3#,AYH30,GGH3#¥8,900201501-202104

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-58040iAGH3#,AYH30,GGH3#¥8,900201501-202104

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-58030iAGH3#,AYH30,GGH3#¥3,350201501-202104

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-58030iAGH3#,AYH30,GGH3#¥3,350201501-202104

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68301-58040iAGH3#,AYH30,GGH3#¥1,590201501-202104

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68302-58040iAGH3#,AYH30,GGH3#¥1,590201501-202104

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-58030iAGH3#,AYH30,GGH3#¥1,330201501-202104

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-58030iAGH3#,AYH30,GGH3#¥1,330201501-202104

68335CARM, SLIDE DOOR LOWER ROLLER, RH

main68335-58030iAGH3#,AYH30,GGH3#¥4,090201501-202104

68336ARM, SLIDE DOOR LOWER ROLLER, LH

main68336-58030iAGH3#,AYH30,GGH3#¥4,090201501-202104

68355GARNISH, SLIDE DOOR CENTER RAIL, RH

main60835-58030iAGH3#,AYH30,GGH3#¥3,250201501-202104

68356GARNISH, SLIDE DOOR CENTER RAIL, LH

main60836-58030iAGH3#,AYH30,GGH3#¥3,250201501-202104

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-58030iAGH3#,AYH30,GGH3#¥6,400201501-201506

main68380-58031iAGH3#,AYH30,GGH3#¥5,300201506-201702

sub68380-58032¥5,300

main68380-58032iAGH3#,AYH30,GGH3#¥5,300201703-201704

sub68380-58033¥4,380

main68380-58033iAGH3#,AYH30,GGH3#¥4,380201704-202104

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-58040iAGH3#,AYH30,GGH3#¥6,400201501-201506

main68390-58041iAGH3#,AYH30,GGH3#¥5,300201506-201702

sub68390-58042¥5,300

main68390-58042iAGH3#,AYH30,GGH3#¥5,300201703-201704

sub68390-58043¥4,380

main68390-58043iAGH3#,AYH30,GGH3#¥4,380201704-202104

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iAGH3#,AYH30,GGH3#¥200201501-202104

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iAGH3#,AYH30,GGH3#¥200201501-202104

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-58010iAGH3#,AYH30,GGH3#¥460201501-202104

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-28120iAGH3#,AYH30,GGH3#¥240201501-202207

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-52020iAGH3#,AYH30,GGH3#¥270201501-202207

68395BPACKING, SLIDE DOOR CENTER RAIL

main68395-52050iAGH3#,AYH30,GGH3#¥240201501-202104

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-28021iAGH3#,AYH30,GGH3#¥1,040201501-201707

sub69415-58020¥780

main69415-58020iAGH3#,AYH30,GGH3#¥780201708-202104

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-28020iAGH3#,AYH30,GGH3#¥270201501-202104

69418STOP, SLIDE DOOR OPEN

main69418-58010iAGH3#,AYH30,GGH3#¥810201501-201601

main69418-58011iAGH3#,AYH30,GGH3#¥660201601-202012

sub69418-V2010¥550

main69418-V2010iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)¥550202101-202104

sub69418-V2011¥500

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-58010iAGH3#,AYH30,GGH3#¥810201501-201601

main69419-58011iAGH3#,AYH30,GGH3#¥660201601-202012

sub69419-V2010¥550

main69419-V2010iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)¥550202101-202104

sub69419-V2011¥500

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-58050iAGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR¥86,100201501-201507

sub85005-58051¥86,100

main85005-58050iAGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR¥86,100201501-201507

sub85005-58051¥86,100

main85005-58051iAGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR¥86,100201508-201511

sub85005-58052¥86,200

main85005-58051iAGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR¥86,100201508-201511

sub85005-58052¥86,200

main85005-58052iAGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR¥86,200201512-201606

sub85005-58053¥71,800

main85005-58052iAGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR¥86,200201512-201606

sub85005-58053¥71,800

main85005-58053iAGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR¥71,800201607-202012

sub85005-58054¥59,800

main85005-58053iAGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR¥71,800201607-202012

sub85005-58054¥59,800

main85005-58054iAYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG)¥59,800202101-202104

main85005-58054iAYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC)¥59,800202101

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-58040iAGH3#,AYH30,GGH3#¥86,100201501-201507

sub85006-58041¥86,100

main85006-58041iAGH3#,AYH30,GGH3#¥86,100201508-201511

sub85006-58042¥86,200

main85006-58042iAGH3#,AYH30,GGH3#¥86,200201512-201606

sub85006-58043¥71,800

main85006-58043iAGH3#,AYH30,GGH3#¥71,800201607-202012

sub85006-58044¥59,800

main85006-58044iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)¥59,800202101-202104

85470AMOTOR ASSY, DOOR CONTROL, REAR RH

main85470-58010iAYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG¥15,600201801-202012

sub85470-V2010¥13,000

main85470-58010iAYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG¥15,600201801-202012

sub85470-V2010¥13,000

main85470-V2010iAYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG)¥13,000202101-202104

main85470-V2010iAYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC)¥13,000202101

85480AMOTOR ASSY, DOOR CONTROL, REAR LH

main85480-58010iAGH3#,AYH30,GGH3#¥15,600201801-202012

sub85480-V2010¥13,000

main85480-V2010iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)¥13,000202101-202104

6548728010CLIP, CORNER PROTECTOR

main65487-28010¥130

7539628090CLIP, OUTSIDE MOULDING, NO.2

main75396-28090¥90

9010508187

main90105-08187¥90

9010508362

main90105-08362¥80

9011906779

main90119-06779¥60

9011906911

main90119-06911¥80

9011908C59

main90119-08C59¥80

9014880049

main90148-80049¥60

9046707215

main90467-07215¥80

9155180812

main91551-80812¥80

9155380610

main91553-80610¥60

9167180618

main91671-80618¥60

9167380620

main91673-80620¥60

9326915012

main93269-15012¥80

50 parts on this diagram · 1 diagram in section
