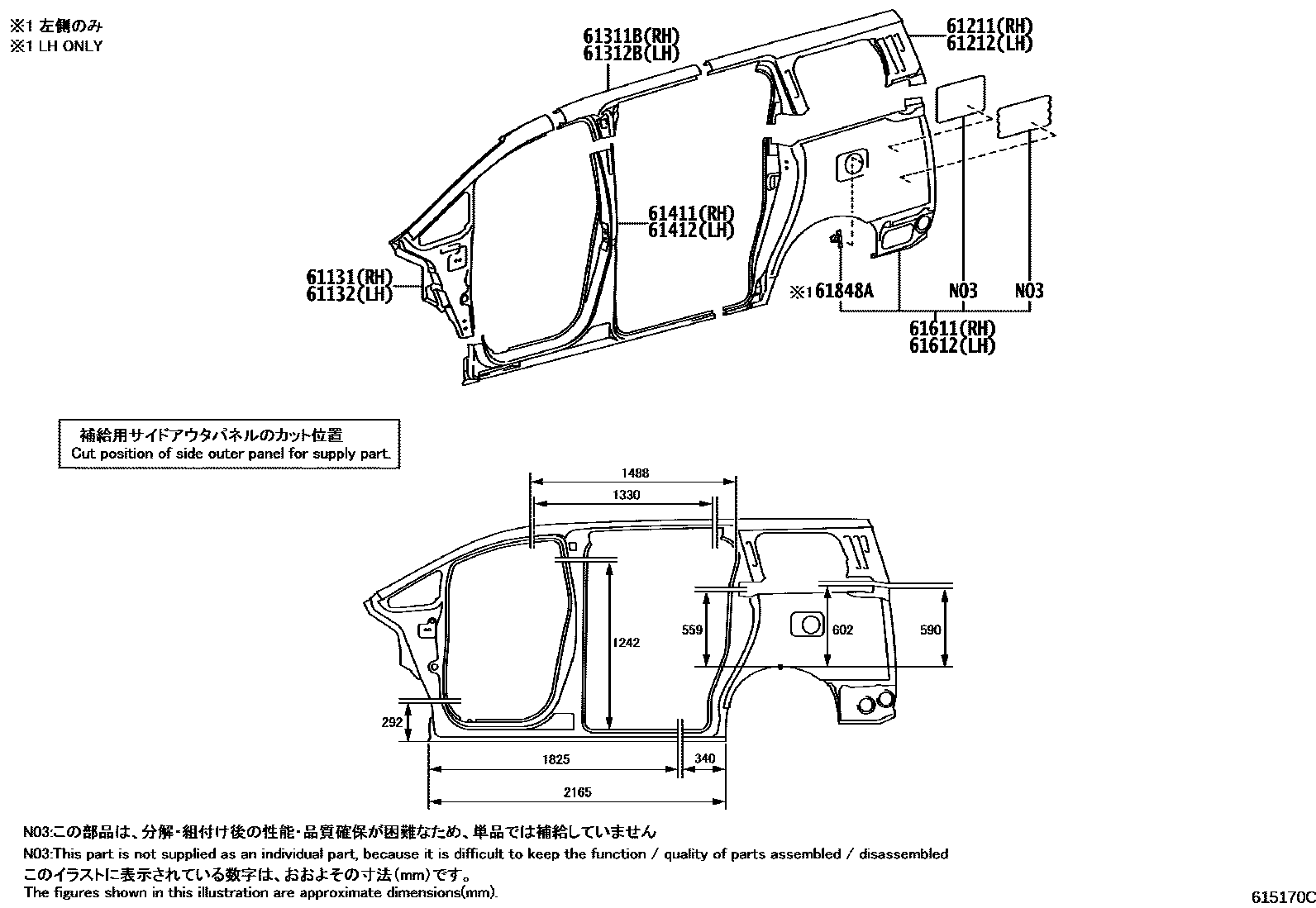

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61106-58040iAGH3#,AYH30,GGH3#201501-201801

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61107-58040iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

61211RAIL, ROOF SIDE, OUTER RH

main61225-58020iAGH3#,AYH30,GGH3#201501-201504

main61225-58021iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

61212RAIL, ROOF SIDE, OUTER LH

main61226-58020iAGH3#,AYH30,GGH3#201501-201504

main61226-58021iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

61311BPILLAR, CENTER BODY, OUTER RH

main61311-58040iAGH3#,AYH30,GGH3#201801-202001

61312BPILLAR, CENTER BODY, OUTER LH

main61312-58040iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

61411PANEL, ROCKER, OUTER RH

main61411-58020iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

61412PANEL, ROCKER, OUTER LH

main61412-58020iAGH3#,AYH30,GGH3#201801-202001

61611PANEL, QUARTER, RH

main61601-58160iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

61612PANEL, QUARTER, LH

main61602-58110iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

61848ARETAINER, QUARTER PANEL, LH

main61848-58010iAGH3#,AYH30,GGH3#201501-201801

11 parts on this diagram · 3 diagrams in section
