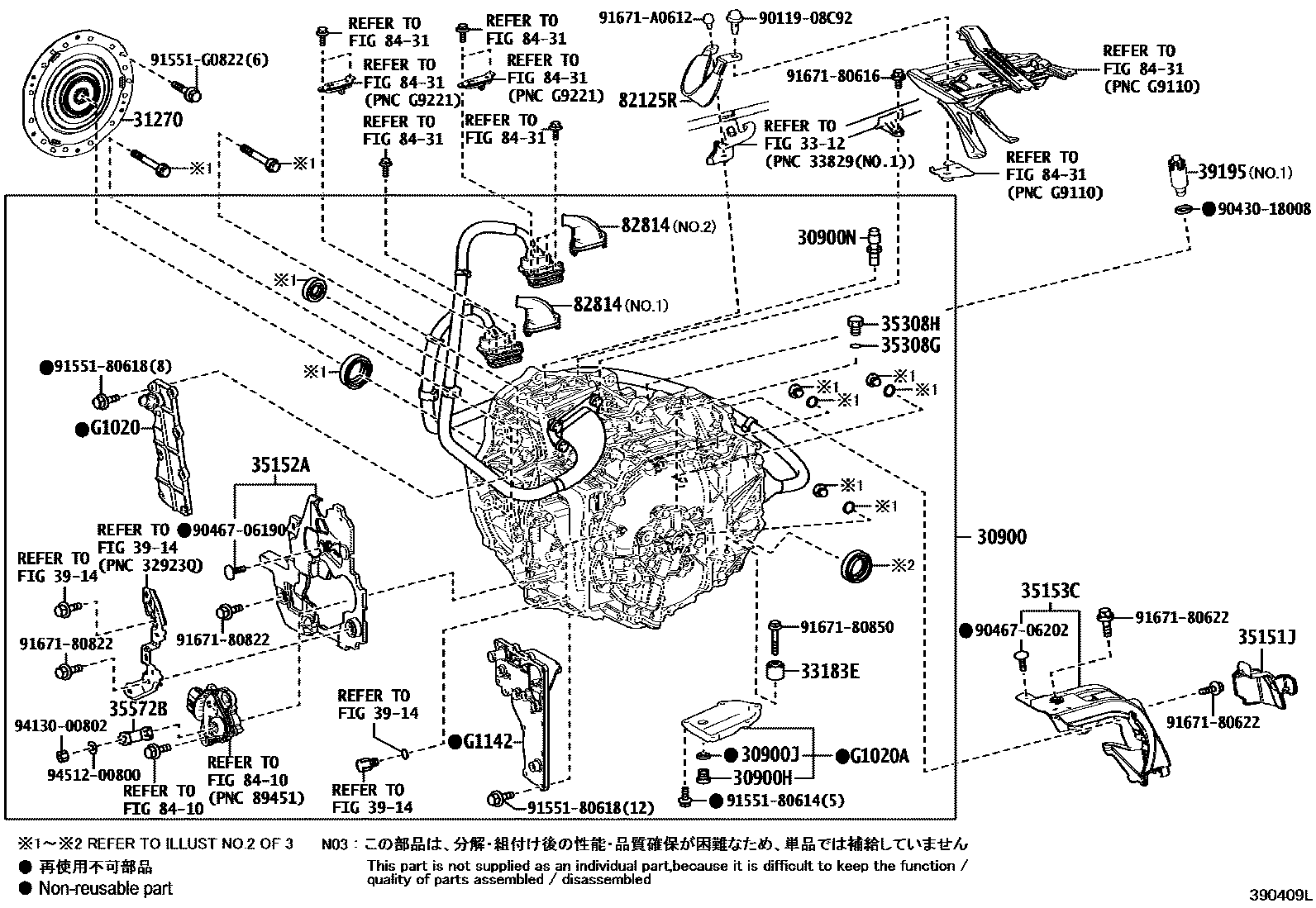

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1��������������������� 0002 1��������������������� 0003 1�����������

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-58050iAYH30¥583,000201501-201502

sub30900-58051¥485,000

main30900-58051iAYH30¥485,000201503-201905

sub30900-58052¥404,000

sub35153-58010¥3,590

main30900-58052iAYH30¥404,000201905-202104

30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)

main90341-18016iAYH30¥190201501-202104

30900JGASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAYH30¥110201501-202104

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iAYH30¥120201501-202104

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-30010iAYH30¥33,100201501-202104

3312

33183EDAMPER, DYNAMIC

main33183-48010iAYH30¥1,930201501-202104

35151JCOVER, AUTOMATIC TRANSMISSION CASE

main35151-33090iAYH30¥1,000201501-202104

35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2

main35151-33100iAYH30¥2,600201501-202104

35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3

main35153-48020iAYH30¥3,440201501-201905

main35153-58010iAYH30¥3,590201905-202104

35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iAYH30¥170201501-202104

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iAYH30¥120201501-202104

35572BLEVER, TRANSMISSION, OUTER

main35572-33030iAYH30¥620201501-202104

3914

39195DAMPER, HV TRANSAXLE MASS

main39195-28011iAYH30¥4,040201501-201801

main39195-33020iAYH30..VFIRE..(EL,ELZ,V,X,ZR)¥1,840201501-202104

82125RWIRE, TRANSMISSION

main82125-58010iAYH30¥1,580201501-202104

82814BOOT, WIRE HARNESS

main82814-42010iAYH30..VFIRE..(EL,ELZ,V,X,ZR)¥700201804-202104

main82814-42020iAYH30¥700201804-202001

main82814-48020iAYH30¥590201501-201804

sub82814-42020¥700

main82814-48030iAYH30¥590201501-201804

sub82814-42010¥700

8410

8431

G1020COVER ASSY, MOTOR WATER JACKET, NO.1

mainG102033010iAYH30201501-202104

G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2

mainG102048030iAYH30201501-202104

G1142COVER, MOTOR WATERJACET

mainG102048040iAYH30201501-202104

9011908C92

main90119-08C92¥100

9043018008

main90430-18008¥110

9046706190

main90467-06190¥100

9046706202

main90467-06202¥80

9155180614

main91551-80614¥60

9155180618

main91551-80618¥60

91551G0822

main91551-G0822¥80

9167180616

main91671-80616¥60

9167180622

main91671-80622¥90

9167180822

main91671-80822¥80

9167180850

main91671-80850¥100

91671A0612

main91671-A0612¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

36 parts on this diagram · 3 diagrams in section
