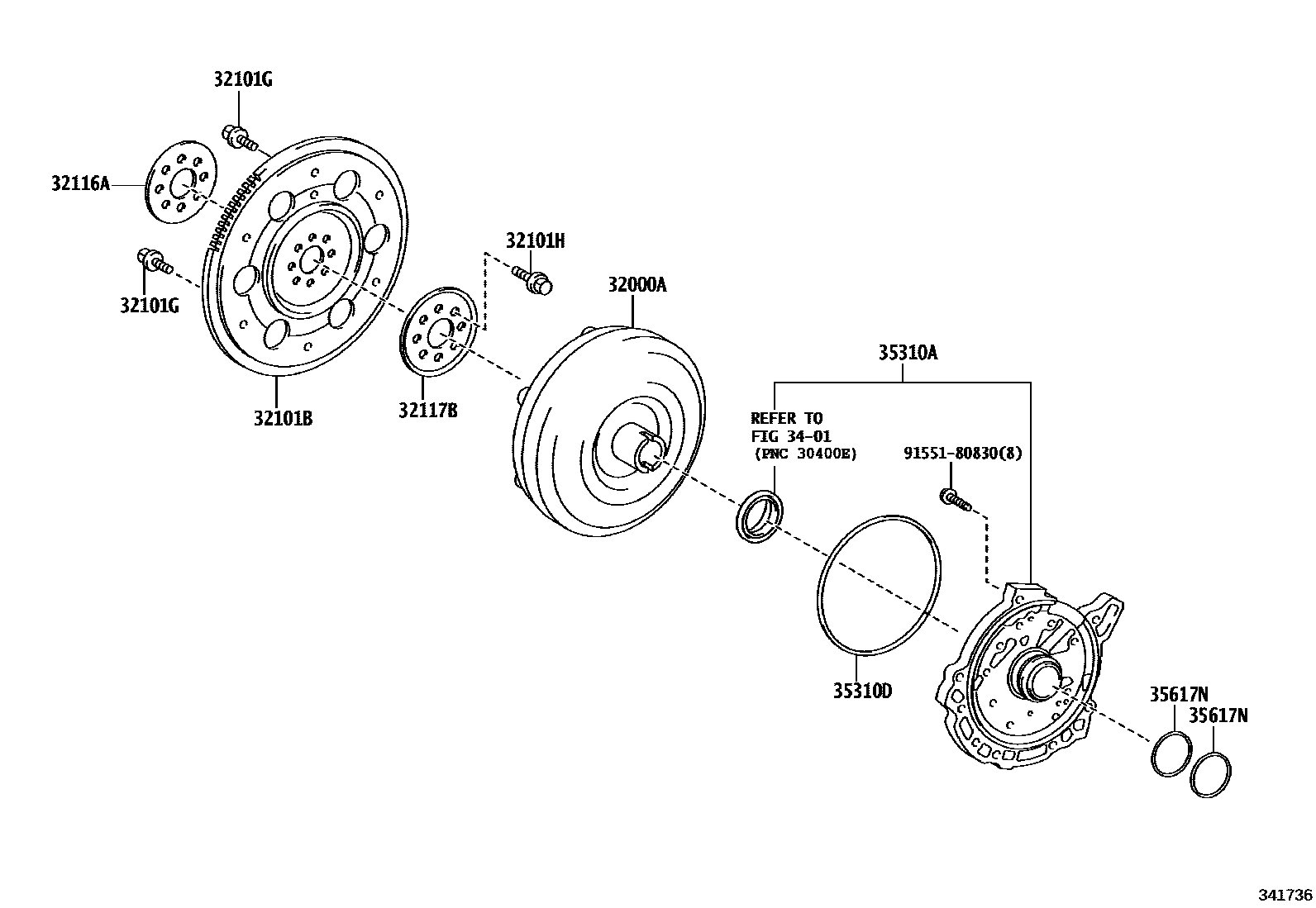

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-58010iAGH3#201501-201601

main32000-58011iAGH3#..08S..Z;AGH3#..VFIRE..(V,X)202001-202104

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-58011supersedes 32101-73010iAGH35201501-201801

main32101-73010iAGH30..08S..Z;AGH30..VFIRE..(V,X)202001-202104

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iAGH3#201501-201801

main90119-09025×5iAGH3#..08S..Z;AGH3#..VFIRE..(V,X)202001-202104

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12384×8iAGH3#..08S..Z;AGH3#..VFIRE..(V,X)202001-202104

32116ASPACER, DRIVE PLATE, FRONT

main32116-20050iAGH3#201801-202001

32117BSPACER, DRIVE PLATE, REAR

main32117-06010iAGH3#201501-201801

main32117-20060iAGH3#..ALPHD;AGH3#..07S..Z202001

3401

35310APUMP ASSY, FRONT OIL

main35310-28040iAGH3#201501-201801

main35310-28041iAGH3#201804-201912

35310DRING, O (FOR FRONT OIL PUMP)

main35697-28010iAGH3#201501-201801

35617NRING, CLUTCH DRUM OIL SEAL

main35617-28020×2iAGH3#201501-201801

9155180830

main91551-80830

11 parts on this diagram · 1 diagram in section
