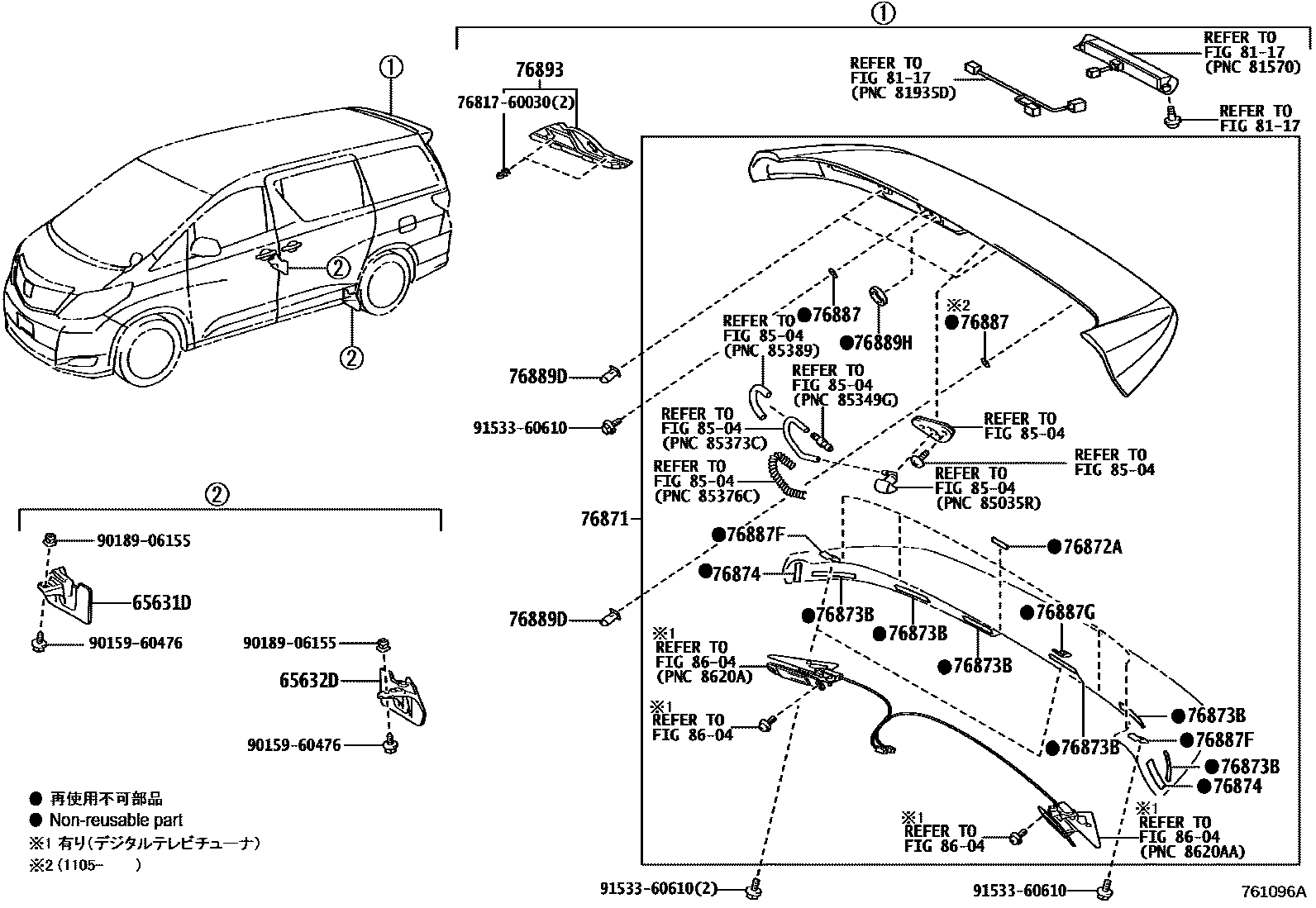

SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1 0004 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-58010iANH2#,GGH2#..CBU200804-201501

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-58010iANH2#,GGH2#..CBU200804-201501

76871SPOILER, REAR

main76085-58030-A0iANH2#,GGH2#..CBU200804-201110

WHITE PEARL CS.,070

sub76085-58901

main76085-58030-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

SILVER ME.,1E4

sub76085-58901

main76085-58030-B1iANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU200804-201110

SILVER ME.,1F7

sub76085-58901

main76085-58030-B2iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU200905-201110

GRAY ME.,1G3

sub76085-58901

main76085-58030-C0iANH2#,GGH2#..CBU200804-201110

BLACK,202

sub76085-58901

main76085-58030-D0iANH2#,GGH2#..VFIRE..CBU200804-201110

DEEP RED M.M.,3R9

sub76085-58901

main76085-58030-E0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

BEIGE ME.,4T8

sub76085-58901

main76085-58030-E1iANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU200804-201110

GOLD PEARL CS.,4U1

sub76085-58901

main76085-58030-J0iANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU200804-201110

DK.BLUE MC.,8S6

sub76085-58901

main76085-58040-A0iANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z)201004-201110

sub76085-58902

main76085-58040-A0iANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z)201004-201110

sub76085-58902

main76085-58040-A0iANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z)200804-201004

sub76085-58902

main76085-58040-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201004-201110

sub76085-58902

main76085-58040-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201004-201110

sub76085-58902

main76085-58040-B0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201004

sub76085-58902

main76085-58040-B1iANH2#,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU201004-201110

sub76085-58902

main76085-58040-B1iANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU201004-201110

sub76085-58902

main76085-58040-B1iANH25..07S..(240G,24V,24Z);ANH25..08S..(240G,240X,24V,24X,24Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,24Z,350G,350X,35V,35X,35Z)..CBU200804-201004

sub76085-58902

main76085-58040-B2iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU201004-201110

sub76085-58902

main76085-58040-B2iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU200905-201004

sub76085-58902

main76085-58040-B2iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU201004-201110

sub76085-58902

main76085-58040-C0iANH2#,GGH2#..CBU201004-201110

sub76085-58902

main76085-58040-C0iANH2#,GGH2#..CBU201004-201110

sub76085-58902

main76085-58040-C0iANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z)200804-201004

sub76085-58902

main76085-58040-D0iANH2#,GGH2#..VFIRE..CBU201004-201110

sub76085-58902

main76085-58040-D0iANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU201004-201110

sub76085-58902

main76085-58040-D0iANH25..07S..(24V,24Z);ANH25..VFIRE..08S..CBU;ANH20,GGH2#..VFIRE..CBU200804-201004

sub76085-58902

main76085-58040-E0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU201004-201110

sub76085-58902

main76085-58040-E0iANH25..07S..(240G,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201004

sub76085-58902

main76085-58040-E0iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU201004-201110

sub76085-58902

main76085-58040-E1iANH25..08S..240X..CBU;ANH25..(240G,240S,24V)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU200804-201004

sub76085-58902

main76085-58040-E1iANH25..08S..240X..CBU;ANH25..(240G,240S,24V)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU201004-201110

sub76085-58902

main76085-58040-E1iANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU201004-201110

sub76085-58902

main76085-58040-J0iANH25..08S..240X..CBU;ANH25..(240G,240S,24V,24Z)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU201004-201110

sub76085-58902

main76085-58040-J0iANH25..08S..240X..CBU;ANH25..(240G,240S,24V,24Z)..CBU;ANH20,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU200804-201004

sub76085-58902

main76085-58040-J0iANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU201004-201110

sub76085-58902

main76085-58901-A0iANH2#,ATH20,GGH2#..CBU201110-201501

070

sub76085-58904

main76085-58901-B0iANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU201110-201501

1F7

sub76085-58904

main76085-58901-B2iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

1E4

sub76085-58904

main76085-58901-C0iANH2#,ATH20,GGH2#..CBU201110-201501

202

sub76085-58904

main76085-58901-D0iANH2#,ATH20,GGH2#..VFIRE..CBU201110-201501

3R9

sub76085-58904

main76085-58901-E1iANH2#,ATH20,GGH2#..ALPHD..CBU201110-201501

4U1

sub76085-58904

main76085-58901-J2iANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU201110-201501

8P8

sub76085-58904

main76085-58901-J3iATH20..HBDSR..CBU201110-201501

8Q6

sub76085-58904

main76085-58901-K0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

9AF

sub76085-58904

main76085-58902-A0iANH2#,ATH20,GGH2#..CBU201110-201209

main76085-58902-A0iANH2#,ATH20,GGH2#..CBU201110-201209

main76085-58902-B0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU201110-201209

main76085-58902-B0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,24Z,350G,35V,35Z,HBDG,HBDV,HBDX,HBDZR)..CBU201110-201209

main76085-58902-B2iANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU201110-201209

main76085-58902-B2iANH2#,ATH20,GGH2#..(240S,24V,24X,24Z,350S,35V,35Z,HBDSR,HBDZR)..CBU201110-201209

main76085-58902-C0iANH2#,ATH20,GGH2#..CBU201110-201209

main76085-58902-C0iANH2#,ATH20,GGH2#..CBU201110-201209

main76085-58902-D0iANH2#,ATH20,GGH2#..VFIRE..CBU201110-201209

main76085-58902-D0iANH2#,ATH20,GGH2#..VFIRE..CBU201110-201209

main76085-58902-E1iANH2#,ATH20,GGH2#..ALPHD..CBU201110-201209

main76085-58902-E1iANH2#,ATH20,GGH2#..ALPHD..CBU201110-201209

main76085-58902-J2iATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240S,240X,24Z,350G,350S,35Z,HBDG,HBDSR,HBDZR)..CBU201110-201209

main76085-58902-J2iATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240S,240X,24Z,350G,350S,35Z,HBDG,HBDSR,HBDZR)..CBU201110-201209

main76085-58902-J3iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU201110-201209

main76085-58902-J3iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDSR,HBDV,HBDX)..CBU201110-201209

main76085-58902-K0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201209

main76085-58902-K0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201209

main76085-58903-A0iANH2#,ATH20,GGH2#..CBU201209-201501

sub76085-58905

main76085-58903-A0iANH2#,ATH20,GGH2#..CBU201209-201501

sub76085-58905

main76085-58903-B0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201209-201501

sub76085-58905

main76085-58903-B0iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201209-201501

sub76085-58905

main76085-58903-B2iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201209-201501

sub76085-58905

main76085-58903-B2iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201209-201501

sub76085-58905

main76085-58903-C0iANH2#,ATH20,GGH2#..CBU201209-201501

sub76085-58905

main76085-58903-C0iANH2#,ATH20,GGH2#..CBU201209-201501

sub76085-58905

main76085-58903-D0iANH2#,ATH20,GGH2#..VFIRE..CBU201209-201501

sub76085-58905

main76085-58903-D0iANH2#,ATH20,GGH2#..VFIRE..CBU201209-201501

sub76085-58905

main76085-58903-E1iANH2#,ATH20,GGH2#..ALPHD..CBU201209-201501

sub76085-58905

main76085-58903-E1iANH2#,ATH20,GGH2#..ALPHD..CBU201209-201501

sub76085-58905

main76085-58903-J2iATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240X,24Z,350G,35Z,HBDG,HBDZR)..CBU201209-201501

sub76085-58905

main76085-58903-J2iATH20..ALPHD..HBDX..CBU;ANH2#,ATH20,GGH2#..(240G,240X,24Z,350G,35Z,HBDG,HBDZR)..CBU201209-201501

sub76085-58905

main76085-58903-J3iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201209-201501

sub76085-58905

main76085-58903-J3iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201209-201501

sub76085-58905

main76085-58903-K0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201209-201501

sub76085-58905

main76085-58903-K0iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201209-201501

sub76085-58905

76872APROTECTOR, REAR SPOILER, NO.1

main76872-58020iANH2#,GGH2#..CBU200804-201501

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-58020iANH2#,GGH2#..CBU200804-201501

76874PROTECTOR, REAR SPOILER, NO.3

main76874-58020iANH2#,GGH2#..CBU200804-201501

76887SEAL, REAR SPOILER

main76887-58010iANH2#,GGH2#..CBU200804-201501

76887FSEAL, REAR SPOILER, NO.2

main76887-58020iANH2#,GGH2#..CBU200804-201501

76887GSEAL, REAR SPOILER, NO.3

main76887-58030iANH2#,ATH20,GGH2#..CBU200804-201501

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iANH2#,GGH2#..CBU200804-201501

76889HSEAL, REAR SPOILER, NO.1

main76889-28020iANH2#,ATH20,GGH2#..CBU201202-201501

main76889-58030iANH2#,GGH2#..CBU200804-201201

sub76889-28020

76893COVER, REAR SPOILER, NO.1

main76893-58020iANH2#,GGH2#..CBU200804-201501

8117

8504

8604

7681760030CLIP, BACK DOOR OUTSIDE GARNISH

main76817-60030

9015960476

main90159-60476

9018906155

main90189-06155

9153360610

main91533-60610

19 parts on this diagram · 4 diagrams in section
