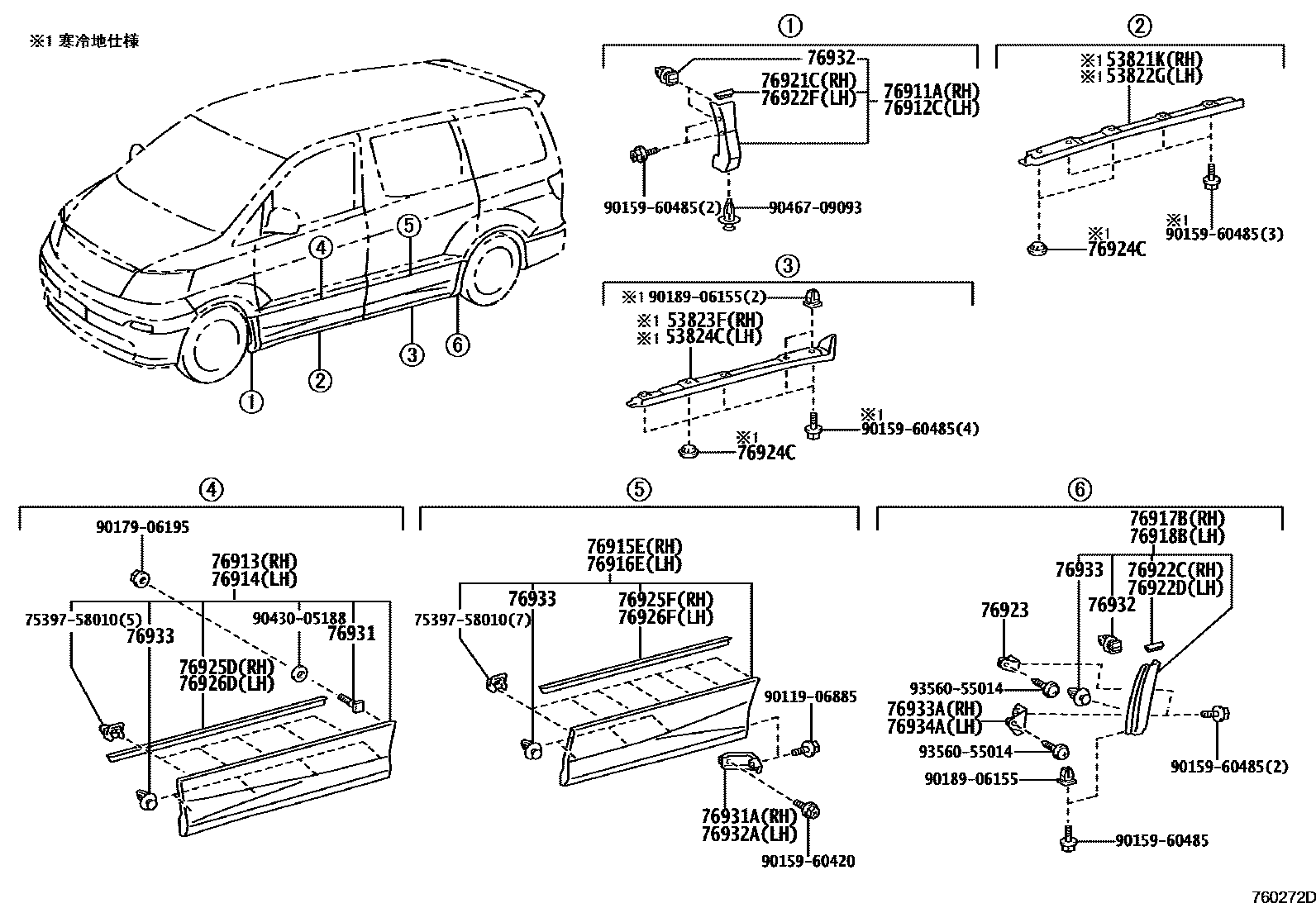

SPOILER & SIDE MUDGUARD

0001 1���� ��������� 0002 1�� �����-

53821KPROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-58010iANH1#,MNH1#..AS,MS200504

53822GPROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-58010iANH1#,MNH1#..AS,MS200205-200504

53823FPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-58010iANH1#,MNH1#..AS,MS200205-200504

53824CPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-58010iANH1#,MNH1#..AS,MS200205-200504

76911AMUDGUARD, FENDER PANEL, RH

main76901-58010-A0iANH1#,MNH1#..AS,MS200504-200607

WHITE PM.,042

main76901-58010-B0iANH1#,MNH1#..AS,MS200205-200504

SILVER ME.,1C0

main76901-58010-B1iANH1#,MNH1#..AS,MS200205-200307

GRAY M.M.,1E8

main76901-58010-B3iANH1#,MNH1#..AS,MS200504-200607

SILVER ME.,1E4

main76901-58010-B4iANH1#,MNH1#..AS,MS200504-200607

SILVER ME.,1F7

main76901-58010-C0iANH1#,MNH1#..AS,MS200205-200504

BLACK MC.,209

main76901-58010-J0iANH1#,MNH1#..AS,MS200504-200607

DK.BLUE MC.,8K8

main76901-58011-A0iANH1#,MNH1#..AS,MS200607-200706

WHITE PM.,042

main76901-58011-A1iANH1#,MNH1#..AS,MS200706-200804

WHITE PEARL CS.,070

main76901-58011-B3iANH1#,MNH1#..AS,MS200607-200804

SILVER ME.,1E4

main76901-58011-B4iANH1#,MNH1#..AS,MS200607-200804

SILVER ME.,1F7

main76901-58011-C0iANH1#,MNH1#..AS,MS200607-200804

BLACK MC.,209

main76901-58011-J0iANH1#,MNH1#..AS,MS200607-200804

DK.BLUE MC.,8K8

main76901-58010-B2iANH1#,MNH1#..08S..(AS,MS)200312-200504

76912CMUDGUARD, FENDER PANEL, LH

main76902-58010-A0iANH1#,MNH1#..AS,MS200504-200607

WHITE PM.,042

main76902-58010-B0iANH1#,MNH1#..AS,MS200205-200504

SILVER ME.,1C0

main76902-58010-B1iANH1#,MNH1#..AS,MS200205-200307

GRAY M.M.,1E8

main76902-58010-B3iANH1#,MNH1#..AS,MS200504-200607

SILVER ME.,1E4

main76902-58010-B4iANH1#,MNH1#..AS,MS200504-200607

SILVER ME.,1F7

main76902-58010-C0iANH1#,MNH1#..AS,MS200504-200607

BLACK MC.,209

main76902-58010-J0iANH1#,MNH1#..AS,MS200307-200504

DK.BLUE MC.,8K8

main76902-58011-A0iANH1#,MNH1#..AS,MS200607-200706

WHITE PM.,042

main76902-58011-A1iANH1#,MNH1#..AS,MS200706-200804

WHITE PEARL CS.,070

main76902-58011-B3iANH1#,MNH1#..AS,MS200607-200804

SILVER ME.,1E4

main76902-58011-B4iANH1#,MNH1#..AS,MS200607-200804

SILVER ME.,1F7

main76902-58011-C0iANH1#,MNH1#..AS,MS200607-200804

BLACK MC.,209

main76902-58011-J0iANH1#,MNH1#..AS,MS200607-200804

DK.BLUE MC.,8K8

main76902-58010-B2iANH1#,MNH1#..08S..4FC..(AS,MS)200307-200405

76913MUDGUARD, FRONT DOOR, RH

main76903-58010-A0iANH1#,MNH1#..AS,MS200504-200706

WHITE PM.,042

main76903-58010-A1iANH1#,MNH1#..AS,MS200706-200804

WHITE PEARL CS.,070

main76903-58010-B0iANH1#,MNH1#..AS,MS200205-200504

SILVER ME.,1C0

main76903-58010-B1iANH1#,MNH1#..AS,MS200205-200307

GRAY M.M.,1E8

main76903-58010-B3iANH1#,MNH1#..AS,MS200504-200804

SILVER ME.,1E4

main76903-58010-B4iANH1#,MNH1#..AS,MS200504-200804

SILVER ME.,1F7

main76903-58010-C0iANH1#,MNH1#..AS,MS200504-200804

BLACK MC.,209

main76903-58010-J0iANH1#,MNH1#..AS,MS200307-200504

DK.BLUE MC.,8K8

main76903-58010-B2iANH1#,MNH1#..08S..(AS,MS)200312-200504

76914MUDGUARD, FRONT DOOR, LH

main76904-58010-A0iANH1#,MNH1#..AS,MS200205-200504

WHITE PM.,042

main76904-58010-A1iANH1#,MNH1#..AS,MS200706-200804

WHITE PEARL CS.,070

main76904-58010-B0iANH1#,MNH1#..AS,MS200205-200504

SILVER ME.,1C0

main76904-58010-B1iANH1#,MNH1#..AS,MS200205-200307

GRAY M.M.,1E8

main76904-58010-B3iANH1#,MNH1#..AS,MS200504-200804

SILVER ME.,1E4

main76904-58010-B4iANH1#,MNH1#..AS,MS200504-200804

SILVER ME.,1F7

main76904-58010-C0iANH1#,MNH1#..AS,MS200205-200504

BLACK MC.,209

main76904-58010-J0iANH1#,MNH1#..AS,MS200504-200804

DK.BLUE MC.,8K8

main76904-58010-B2iANH1#,MNH1#..08S..(AS,MS)200312-200504

76915EMUDGUARD, SLIDE DOOR, RH

main76905-58010-A0iANH1#,MNH1#..AS,MS200504-200706

WHITE PM.,042

main76905-58010-A1iANH1#,MNH1#..AS,MS200706-200804

WHITE PEARL CS.,070

main76905-58010-B0iANH1#,MNH1#..AS,MS200205-200504

SILVER ME.,1C0

main76905-58010-B1iANH1#,MNH1#..AS,MS200205-200307

GRAY M.M.,1E8

main76905-58010-B3iANH1#,MNH1#..AS,MS200504-200804

SILVER ME.,1E4

main76905-58010-B4iANH1#,MNH1#..AS,MS200504-200804

SILVER ME.,1F7

main76905-58010-C0iANH1#,MNH1#..AS,MS200205-200504

BLACK MC.,209

main76905-58010-J0iANH1#,MNH1#..AS,MS200307-200504

DK.BLUE MC.,8K8

main76905-58010-B2iANH1#,MNH1#..08S..(AS,MS)200312-200504

76916EMUDGUARD, SLIDE DOOR, LH

main76906-58010-A0iANH1#,MNH1#..AS,MS200205-200504

WHITE PM.,042

main76906-58010-A1iANH1#,MNH1#..AS,MS200706-200804

WHITE PEARL CS.,070

main76906-58010-B0iANH1#,MNH1#..AS,MS200205-200504

SILVER ME.,1C0

main76906-58010-B1iANH1#,MNH1#..AS,MS200205-200307

GRAY M.M.,1E8

main76906-58010-B3iANH1#,MNH1#..AS,MS200504-200804

SILVER ME.,1E4

main76906-58010-B4iANH1#,MNH1#..AS,MS200504-200804

SILVER ME.,1F7

main76906-58010-C0iANH1#,MNH1#..AS,MS200504-200804

BLACK MC.,209

main76906-58010-J0iANH1#,MNH1#..AS,MS200307-200504

DK.BLUE MC.,8K8

main76906-58010-B2iANH1#,MNH1#..08S..4FC..(AS,MS)200307-200405

76917BMUDGUARD, QUARTER PANEL, RH

main76907-58010-A0iANH1#,MNH1#..AS,MS200504-200607

WHITE PM.,042

main76907-58010-B0iANH1#,MNH1#..AS,MS200205-200504

SILVER ME.,1C0

main76907-58010-B1iANH1#,MNH1#..AS,MS200205-200307

GRAY M.M.,1E8

main76907-58010-B3iANH1#,MNH1#..AS,MS200504-200607

SILVER ME.,1E4

main76907-58010-B4iANH1#,MNH1#..AS,MS200504-200607

SILVER ME.,1F7

main76907-58010-C0iANH1#,MNH1#..AS,MS200205-200504

BLACK MC.,209

main76907-58010-J0iANH1#,MNH1#..AS,MS200307-200504

DK.BLUE MC.,8K8

main76907-58011-A0iANH1#,MNH1#..AS,MS200607-200706

WHITE PM.,042

main76907-58011-A1iANH1#,MNH1#..AS,MS200706-200804

WHITE PEARL CS.,070

main76907-58011-B3iANH1#,MNH1#..AS,MS200607-200804

SILVER ME.,1E4

main76907-58011-B4iANH1#,MNH1#..AS,MS200607-200804

SILVER ME.,1F7

main76907-58011-C0iANH1#,MNH1#..AS,MS200607-200804

BLACK MC.,209

main76907-58011-J0iANH1#,MNH1#..AS,MS200607-200804

DK.BLUE MC.,8K8

main76907-58010-B2iANH1#,MNH1#..08S..(AS,MS)200312-200504

76918BMUDGUARD, QUARTER PANEL, LH

main76908-58010-A0iANH1#,MNH1#..AS,MS200504-200607

WHITE PM.,042

main76908-58010-B0iANH1#,MNH1#..AS,MS200205-200504

SILVER ME.,1C0

main76908-58010-B1iANH1#,MNH1#..AS,MS200205-200307

GRAY M.M.,1E8

main76908-58010-B3iANH1#,MNH1#..AS,MS200504-200607

SILVER ME.,1E4

main76908-58010-B4iANH1#,MNH1#..AS,MS200504-200607

SILVER ME.,1F7

main76908-58010-C0iANH1#,MNH1#..AS,MS200504-200607

BLACK MC.,209

main76908-58010-J0iANH1#,MNH1#..AS,MS200307-200504

DK.BLUE MC.,8K8

main76908-58011-A0iANH1#,MNH1#..AS,MS200607-200706

WHITE PM.,042

main76908-58011-A1iANH1#,MNH1#..AS,MS200706-200804

WHITE PEARL CS.,070

main76908-58011-B3iANH1#,MNH1#..AS,MS200607-200804

SILVER ME.,1E4

main76908-58011-B4iANH1#,MNH1#..AS,MS200607-200804

SILVER ME.,1F7

main76908-58011-C0iANH1#,MNH1#..AS,MS200607-200804

BLACK MC.,209

main76908-58011-J0iANH1#,MNH1#..AS,MS200607-200804

DK.BLUE MC.,8K8

main76908-58010-B2iANH1#,MNH1#..08S..(AS,MS)200312-200504

76921CPROTECTOR, SIDE MUDGUARD, RH

main76921-58010-B0iANH1#,MNH1#..AS,MS200607-200804

LT. GRAY,042 ,070 ,1F7

main76921-58010-C0iANH1#,MNH1#..AS,MS200205-200307

BLACK,1E8 ,209

76922CPROTECTOR, SIDE MUDGUARD, NO.2

main76922-58010-B0iANH1#,MNH1#..AS,MS200607-200804

LT. GRAY,042 ,070 ,1F7

main76922-58010-C0iANH1#,MNH1#..AS,MS200205-200307

BLACK,1E8 ,209

76922DPROTECTOR, SIDE MUDGUARD, NO.2

main76922-58010-B0iANH1#,MNH1#..AS,MS200504-200607

LT. GRAY,042 ,1F7

main76922-58010-C0iANH1#,MNH1#..AS,MS200504-200804

BLACK,1E4 ,209 ,8K8

76922FPROTECTOR, SIDE MUDGUARD, LH

main76921-58010-B0iANH1#,MNH1#..AS,MS200607-200804

LT. GRAY,042 ,070 ,1F7

main76921-58010-C0iANH1#,MNH1#..AS,MS200307-200504

BLACK,209 ,8K8

76923RETAINER, SIDE MUDGUARD

main76923-58010×2iANH1#,MNH1#..AS,MS200205-200504

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-58010×6iANH1#,MNH1#..AS,MS200504

76925DPROTECTOR, SIDE MUDGUARD, RH

main76965-58010-B0iANH1#,MNH1#..AS,MS200205-200504

LT. GRAY,042 ,1C0

main76965-58010-C0iANH1#,MNH1#..AS,MS200504-200804

BLACK,1E4 ,209 ,8K8

76925FPROTECTOR, SIDE MUDGUARD, RH

main76966-58010-B0iANH1#,MNH1#..AS,MS200205-200307

LT. GRAY,042 ,1C0

main76966-58010-C0iANH1#,MNH1#..08S..4FC..(AS,MS)200307-200405

76926DPROTECTOR, SIDE MUDGUARD, LH

main76965-58010-B0iANH1#,MNH1#..AS,MS200504-200804

LT. GRAY,042 ,070 ,1F7

main76965-58010-C0iANH1#,MNH1#..AS,MS200205-200307

BLACK,1E8 ,209

76926FPROTECTOR, SIDE MUDGUARD, LH

main76966-58010-B0iANH1#,MNH1#..AS,MS200205-200307

LT. GRAY,042 ,1C0

main76966-58010-C0iANH1#,MNH1#..08S..4FC..(AS,MS)200307-200405

76931RETAINER, SIDE MUDGUARD, NO.3

main75392-58010×2iANH1#,MNH1#..AS,MS200205-200504

76931ABRACKET, SIDE MUDGUARD, NO.1 RH

main76931-58010iANH1#,MNH1#..AS,MS200205-200307

main76931-58011iANH1#,MNH1#..AS,MS200307-200504

76932RETAINER, SIDE MUDGUARD, NO.4

main76932-28030×6iANH1#,MNH1#..AS,MS200205-200504

76932ABRACKET, SIDE MUDGUARD, NO.1 LH

main76932-58020iANH1#,MNH1#..AS,MS200205-200307

main76932-58021iANH1#,MNH1#..AS,MS200307-200504

76933RETAINER, SIDE MUDGUARD, NO.5

main76932-58010×16iANH1#,MNH1#..AS,MS200205-200504

76933ABRACKET, SIDE MUDGUARD, NO.2 RH

main76933-58010iANH1#,MNH1#..AS,MS200504

76934ABRACKET, SIDE MUDGUARD, NO.2 LH

main76934-58010iANH1#,MNH1#..AS,MS200504

7539758010CLIP, BACK DOOR MOULDING, NO.3

main75397-58010

9011906885

main90119-06885

9015960420

main90159-60420

9015960485

main90159-60485

9017906195

main90179-06195

9018906155

main90189-06155

9043005188

main90430-05188

9046709093

main90467-09093

9356055014

main93560-55014

38 parts on this diagram · 2 diagrams in section
