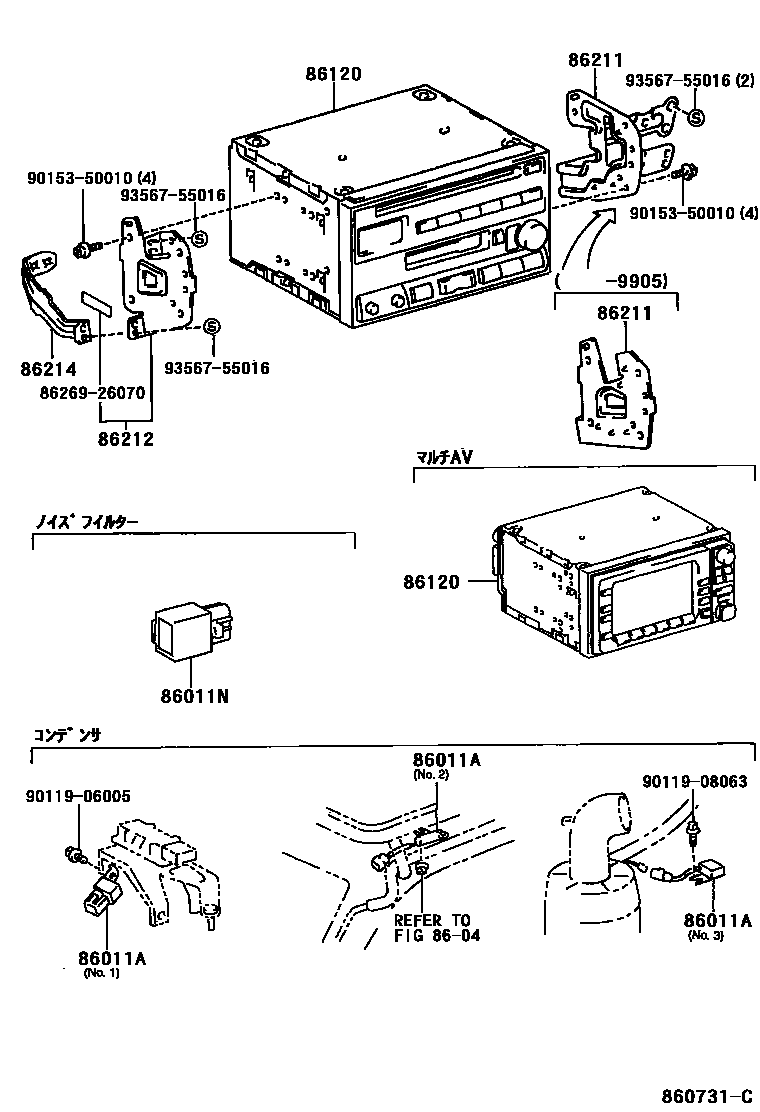

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1��-����� ������ 0005 1��-����� ������

86011ACONDENSER, RADIO SETTING

main90980-04077iRCH11199508-199804

main90980-04088iKCH1#199508-199708

main90980-04112iKCH10,16,RCH11,VCH1#199508-199711

main90980-04116iVCH1#199907-200205

main90980-04136iKCH1#,VCH1#199907-200205

86011NFILTER, NOISE

main90980-04111iKCH10,16,VCH1#199508-199804

main90980-04116iVCH1#,2#199909-200501

8604

86120RECEIVER ASSY, RADIO

main86120-14860iKCH1#,VCH1#..G199804-199907

main86120-26010iKCH10,16,RCH11199508-199608

main86120-26020iKCH10,16,RCH11199608-199703

main86120-26021iKCH10,16,RCH11199703-199708

main86120-26022iKCH1#,RCH11,VCH1#199708-199804

main86120-26023iKCH1#,VCH1#199804-199907

main86120-26030iKCH10,16,RCH11199608-199703

main86120-26031iKCH10,16,RCH11199703-199708

main86120-26032iKCH1#,VCH1#..Q199708-199804

main86120-26033iKCH1#,VCH1#..Q199804-199907

main86120-26100iKCH1#,VCH1#..QLTD199907-200205

main86120-26110iKCH1#,VCH1#..G199907-200205

main86120-26130iKCH1#,VCH1#..QLTD199907-200205

sub86120-26131

main86120-26140iKCH1#,VCH1#199907-200205

sub86120-26141

main86120-2A160iKCH12199508-199608

main86120-2A340iKCH10,16,RCH11199707-199708

main86120-2B480iKCH10,16,RCH11..G199508-199608

main86120-2B490iKCH10,16,RCH11..Q199508-199608

main86120-2B520iKCH12199608-199708

main86120-2B530iKCH10,16,RCH11,VCH1#..G199608-199907

main86120-2B540iKCH10,16,RCH11199608-199707

main86120-2B660iKCH1#,VCH1#..QLTD199907-200205

main86120-35120iKCH10,16,RCH11199508-199608

main86120-37010iKCH12199508-199708

86211BRACKET, RADIO, NO.1

main86211-26030iKCH1#,RCH11,VCH1#199508-199905

main86211-26070iKCH1#,VCH1#199905-199907

main86211-26080iKCH1#,VCH1#,2#199907-200501

86212BRACKET, RADIO, NO.2

main86212-26030iKCH1#,RCH11,VCH1#199508-199907

main86212-26070iKCH1#,VCH1#,2#199907-200501

86214BRACKET, RADIO, NO.4

main86214-26010iKCH1#,RCH11,VCH1#199508-199907

8626926070PAD, SPEAKER

main86269-26070

9011906005

main90119-06005

9011908063

main90119-08063

9015350010

main90153-50010

9356755016

main93567-55016

12 parts on this diagram · 5 diagrams in section
