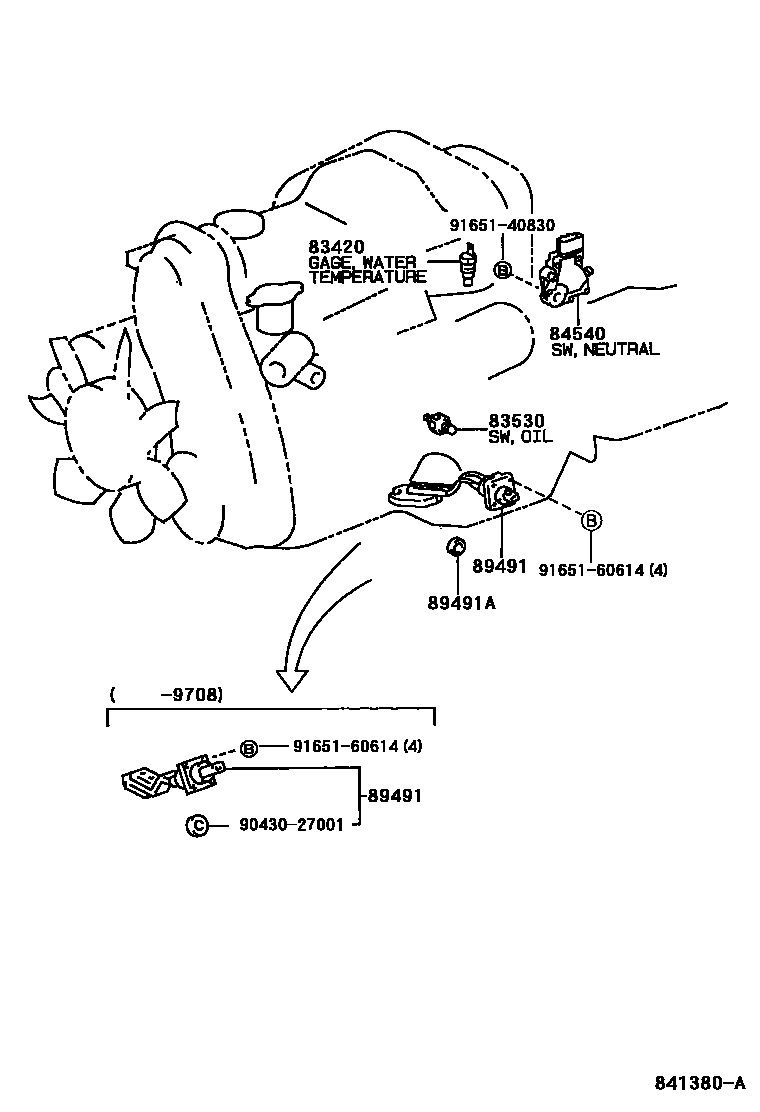

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVCH1#,2#199907-200501

main83420-16040iKCH1#199907-200205

main83420-20040iRCH11199508-199804

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRCH11,VCH1#199803-199907

main83530-30090iRCH11,VCH1#199508-199803

sub83530-60020

main83530-30100iKCH1#199508-199604

main83530-60010iKCH1#199907-200205

84540SWITCH ASSY, NEUTRAL START

main84540-30270iKCH1#,VCH1#199508-199907

main84540-30290iRCH11199508-199804

main84540-30300iRCH11199508-199804

main84540-50020iKCH1#,VCH1#,2#200202-200501

main84540-51010iKCH1#,VCH1#,2#199907-200202

89491SENSOR, ENGINE OIL LEVEL

main89491-26090iKCH16199510-199708

main89491-26091iKCH16199708-199907

main89491-26120iKCH10,12199508-199708

main89491-26121iKCH10199708-199907

main89491-37010iRCH11199508-199711

main89491-37011iRCH11199711-199804

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iKCH1#199708-199711

9043027001

main90430-27001

9165140830

main91651-40830

9165160614

main91651-60614

8 parts on this diagram · 14 diagrams in section
