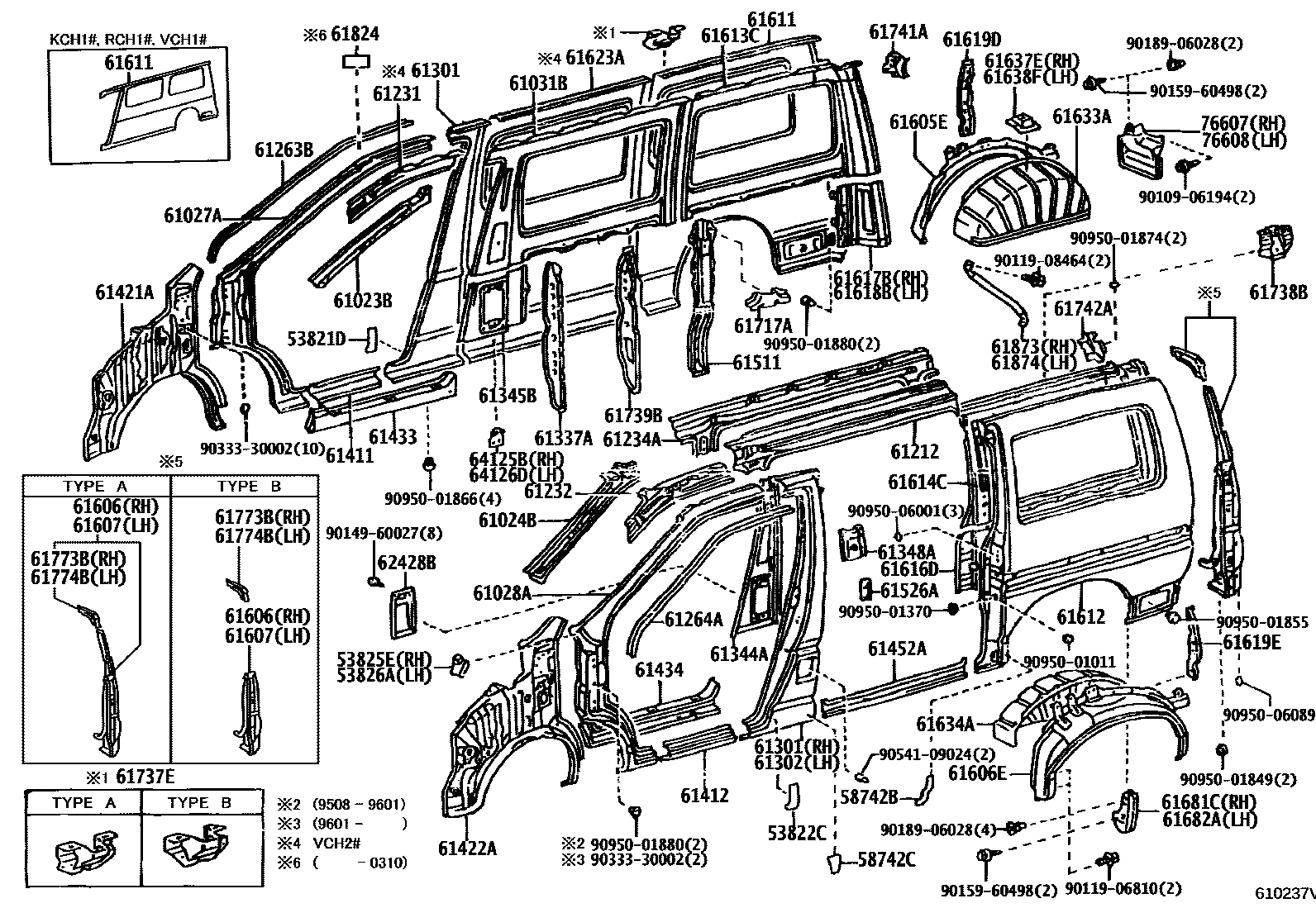

SIDE MEMBER
53821DPROTECTOR, FRONT SIDE PANEL, NO.1 RH
53822CPROTECTOR, FRONT SIDE PANEL, NO.1 LH
53825EPROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
58742BPROTECTOR, QUARTER PANEL, LH
58742CPROTECTOR, QUARTER PANEL, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61031BEXTENSION SUB-ASSY, QUARTER PANEL, RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61421APANEL, FENDER, INNER RH
61422APANEL, FENDER, INNER LH
61433PANEL, ROCKER, INNER RH
61434PANEL, ROCKER, INNER LH
61452APANEL, ROCKER OUTER, LH
61511PILLAR, QUARTER LOCK, RH
61526ARETAINER, SEPARATOR BAR BRACKET, LH
61605EPANEL, QUARTER, RH
61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61606EPANEL, QUARTER, LH
61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61613CPANEL SUB-ASSY, QUARTER, INNER REAR RH
61614CPANEL SUB-ASSY, QUARTER, INNER REAR LH
61616DPILLAR, QUARTER LOCK, INNER LH
61617BPANEL, QUARTER INNER, LOWER RH
61618BPANEL, QUARTER, INNER LOWER LH
61619DREINFORCEMENT, QUARTER PANEL, RH
61619EREINFORCEMENT, QUARTER PANEL
61623AEXTENSION, QUARTER PANEL, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61637EBRACKET, QUARTER WHEEL HOUSE
61638FBRACKET, QUARTER WHEEL HOUSE, LH
61681CEXTENSION, REAR WHEEL OPENING, RH
61682AEXTENSION, REAR WHEEL OPENING, LH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61737EREINFORCEMENT, QUARTER, INNER, RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
61739BREINFORCEMENT, EXTENSION QUARTER INNER PANEL
61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH
61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH
61773BFRAME, BACK DOOR OPENING SIDE, UPPER RH
61774BFRAME, BACK DOOR OPENING SIDE, UPPER LH
61824PLATE, NOISE CONTROL, NO.1
61873ROD, QUARTER LOCK PILLAR, RH
61874ROD, QUARTER LOCK PILLAR, LH
62428BCOVER, CENTER PILLAR, RH
64125BANCHOR, PILLAR SEAT BELT
64126DANCHOR, PILLAR SEAT BELT, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
GRAY ME.OP.,2BW
BL.GRAY ME,2BA
YELLOW SILVER ME.,2CH
DK.GRAY ME.,2FW
SILVER ME.,1C0 ,2GD
SILVER ME.,1C0
LT.GRAISH ROSE OP,2EC
LT.GRAISH ROSE OP,2EE
BLACKISH GREEN M,2AZ
GRAYISH BREEN M,2FY
DK. TEAL GREEN MC,2BP
DK.GRAYISH PURPLE ME,2CJ
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
GRAY ME.OP.,2BW
BL.GRAY ME,2BA
YELLOW SILVER ME.,2CH
DK.GRAY ME.,2FW
SILVER ME.,1C0 ,2GD
SILVER ME.,1C0
LT.GRAISH ROSE OP,2EC
LT.GRAISH ROSE OP,2EE
BLACKISH GREEN M,2AZ
GRAYISH BREEN M,2FY
DK. TEAL GREEN MC,2BP
DK.GRAYISH PURPLE ME,2CJ
9010906194
9011906810
9011908464
9014960027
9015960498
9018906028
9033330002
9054109024
9095001011
9095001370
9095001849
9095001855
9095001866
9095001874
9095001880
9095006001
9095006089
85 parts on this diagram · 2 diagrams in section
