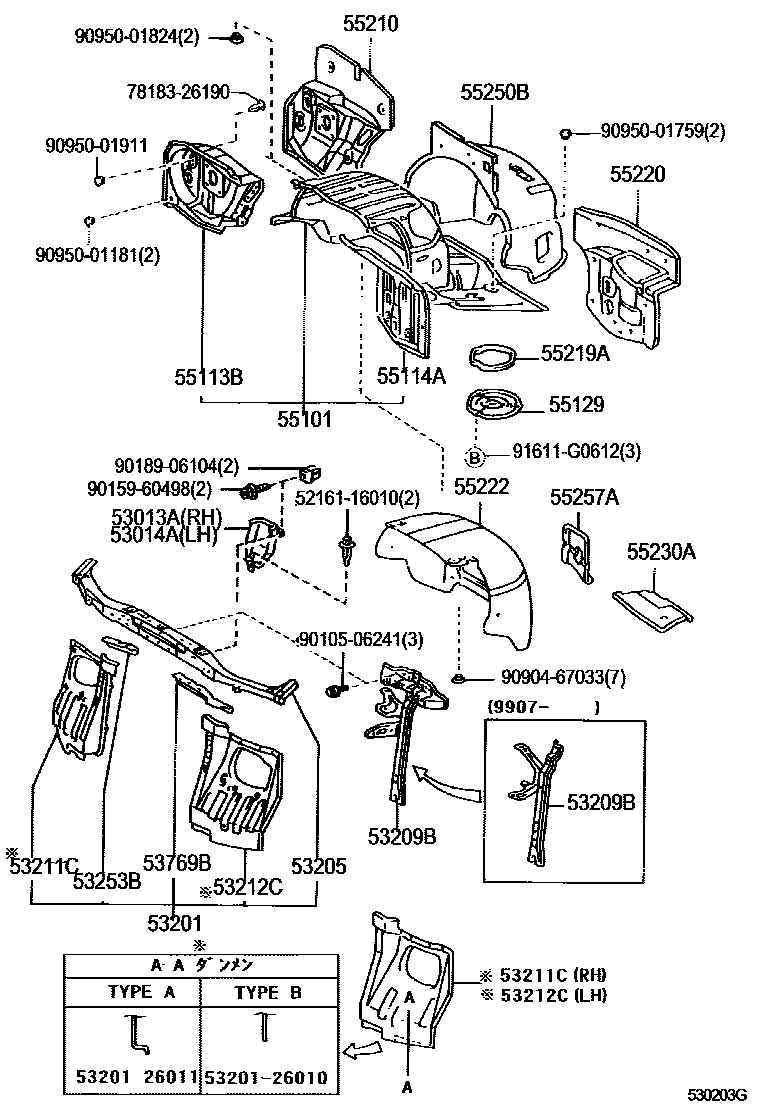

FRONT FENDER APRON & DASH PANEL

53013AGUIDE SUB-ASSY, FRONT SIDE AIR, RH

main53013-26030iKCH1#199907-200205

53014AGUIDE SUB-ASSY, FRONT SIDE AIR, LH

main53014-26030iKCH1#199907-200205

53201SUPPORT SUB-ASSY, RADIATOR

main53201-26010iKCH1#,RCH11,VCH1#199508-199812

sub53201-26040

main53201-26011iKCH1#,VCH1#199812-199907

sub53201-26040

main53201-26030iKCH1#,VCH1#,2#199907-200501

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-26010iKCH1#,RCH11,VCH1#199508-199907

main53216-26030iKCH1#,VCH1#,2#199907-200501

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-26010iKCH12199508-199708

main53209-26020iKCH10,16,RCH11,VCH1#199508-199907

main53209-26060iKCH1#,VCH1#,2#199907-200501

53211CSUPPORT, RADIATOR, RH

main53211-26040iKCH1#,RCH11,VCH1#199508-199901

sub53211-26060

main53211-26041iKCH1#,VCH1#199901-199907

sub53211-26060

53212CSUPPORT, RADIATOR, LH

main53212-26040iKCH1#,RCH11,VCH1#199508-199901

sub53212-26060

main53212-26041iKCH1#,VCH1#199901-199907

sub53212-26060

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-26010iKCH1#,RCH11,VCH1#199508-199907

main53253-26030iKCH1#,VCH1#,2#199907-200501

53769BBRACKET, POWER STEERING RESERVOIR TANK MOUNTING

main53769-26010iKCH1#,RCH11,VCH1#199508-199907

main53769-26030iKCH1#,VCH1#,2#199907-200501

55101PANEL SUB-ASSY, DASH

main55110-26160iKCH12199508-199708

main55110-26180iKCH10,RCH11199508-199708

main55110-26380iKCH16199510-199708

main55110-26530iKCH10..Q199708-199907

main55110-26531iKCH10..QLTD199907-200205

sub55110-26532

sub87268-26020

main55110-26540iVCH10199708-199907

main55110-26542iVCH10,22199907-200501

sub55110-26543

sub87268-26020

main55110-26550iVCH16199708-199907

sub55110-26B40

sub87268-26020

main55110-26551iVCH16,28199907-200501

sub55110-26552

sub87268-26020

main55110-26680iKCH10,RCH11..G199708-199907

main55110-26682iKCH10..G199907-200205

sub55110-26683

sub87268-26020

main55110-26770iKCH16199708-199907

main55110-26771iKCH16..G199907-200205

sub55110-26772

sub87268-26020

main55110-26870iKCH16..QLTD199907-200205

sub55110-26871

sub87268-26020

55113BPANEL SUB-ASSY, DASH SIDE, RH

main55017-26010iKCH10,16,RCH11199508-199708

main55017-26030iKCH1#..QLTD199907-200205

main55113-26040iKCH12199508-199708

sub55113-26050

sub90333-30002

sub90333-50001

55114APANEL SUB-ASSY, DASH SIDE, LH

main55018-26050iKCH10,16,RCH11,VCH1#199508-199907

main55018-26060iKCH12199508-199708

sub55018-26040

55129COVER, DASH PANEL HOLE

main55129-26010iKCH1#,VCH1#,2#199907-200501

55210INSULATOR ASSY, DASH PANEL

main55210-26020iKCH12199508-199708

main55210-26030iKCH10,16,RCH11199508-199708

main55210-26080iKCH1#,RCH11,VCH1#199708-199907

main55210-26081iKCH1#,VCH1#,2#199907-200501

55219APACKING, DASH PANEL HOLE COVER

main55219-26010iKCH1#,RCH11,VCH1#199508-199907

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-26020iKCH12199508-199708

main55220-26030iKCH10,16,RCH11,VCH1#199508-199907

55222INSULATOR, DASH PANEL, OUTER CENTER

main55222-26010iKCH1#199907-200205

main55222-26030iVCH1#,2#199907-200501

55230AINSULATOR ASSY, DASH PANEL, NO.4

main55230-26010iKCH10,16,RCH11,VCH1#199508-199907

sub55230-26011

55250BINSULATOR ASSY, DUSH PANEL, NO.3

main55250-26020iKCH12199508-199708

main55250-26030iKCH10,16,RCH11199508-199708

main55250-26070iVCH1#199708-199907

main55250-26071iVCH1#,2#199907-200501

main55250-26100iKCH1#,RCH11199708-199907

main55250-26101iKCH1#199907-200205

55257ACOVER, DASH PANEL OPENING

main55257-26010iKCH1#,VCH1#,2#199907-200501

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

7818326190BRACKET, ACCELERATOR LINK ROD

main78183-26190

9010506241

main90105-06241

9015960498

main90159-60498

9018906104

main90189-06104

9090467033

main90904-67033

9095001181

main90950-01181

9095001759

main90950-01759

9095001824

main90950-01824

9095001911

main90950-01911

91611G0612

main91611-G0612

31 parts on this diagram · 1 diagram in section
