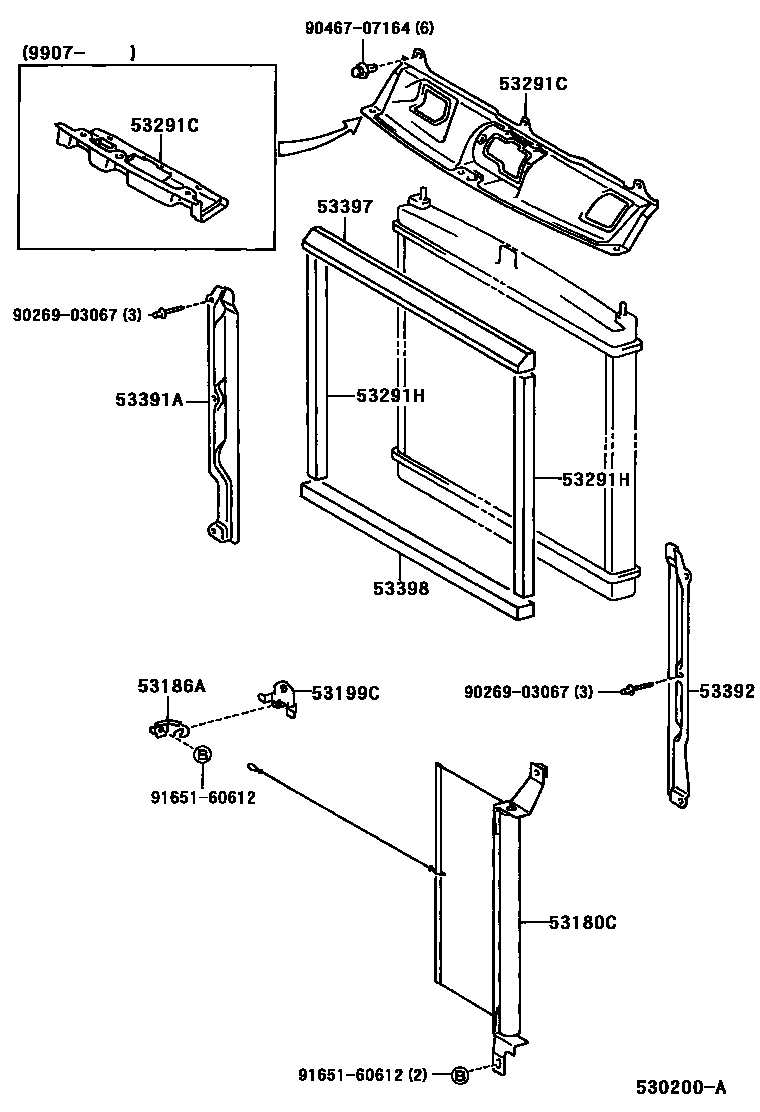

RADIATOR SUPPORT & WIND GUIDE

53180CSHUTTER ASSY, RADIATOR

main53180-26010iKCH1#199508-199907

main53180-26011iKCH1#199907-200205

53186AHOOK, RADIATOR SHUTTER

main53186-26010iKCH1#199508-200205

53199CBRACKET, RADIATOR SHUTTER CONTROL

main53199-26010iKCH1#199508-199907

main53199-26030iKCH1#199907-200205

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53292-26020iKCH1#199508-199907

main53292-26020iKCH1#,VCH1#..G199804-199907

main53292-26050iKCH1#199907-200205

sub53292-26090

53291HSEAL, RADIATOR SUPPORT

main53291-26030iKCH1#199508-200205

main53291-26040iVCH1#,2#199508-200501

53391ABRACKET, RADIATOR SEAL, RH

main53391-26010iKCH1#,RCH11,VCH1#199508-200501

53392BRACKET, RADIATOR SEAL, LH

main53392-26010iKCH1#,RCH11,VCH1#199508-200501

53397SEAL, RADIATOR, UPPER

main53397-26010iVCH1#,2#199508-200501

main53397-26020iKCH1#199508-200205

53398SEAL, RADIATOR, LOWER

main53397-26010iKCH1#199508-200205

main53398-26010iRCH11,VCH1#199508-200501

9026903067

main90269-03067

9046707164

main90467-07164

9165160612

main91651-60612

12 parts on this diagram · 1 diagram in section
