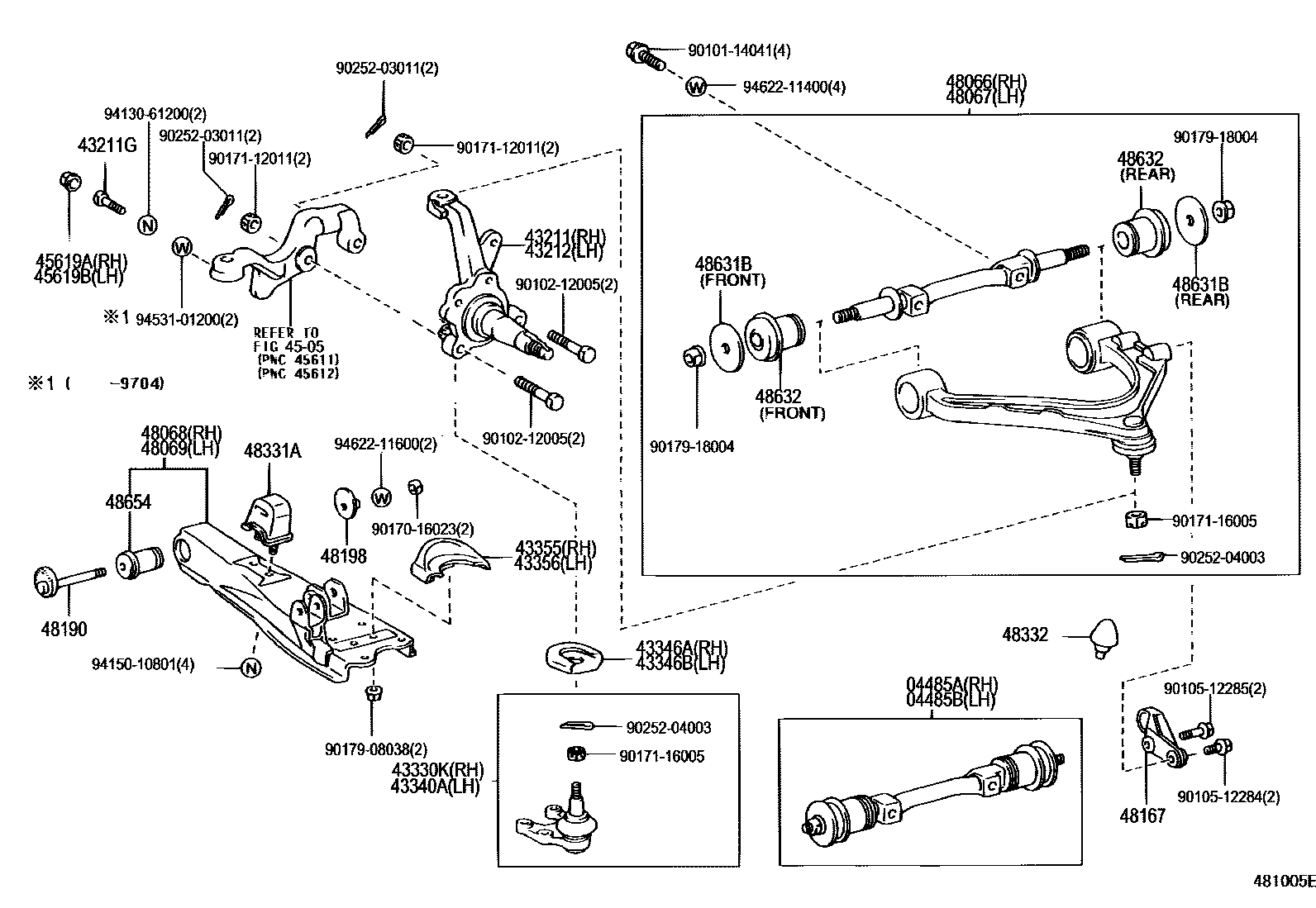

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-26050iKCH12199603-199708

sub04485-26120

main04485-26070iKCH12199508-199603

sub04485-26050

main04485-26080iKCH10,RCH11,VCH10199508-200409

sub04485-26110

main04485-26110iVCH22200409-200501

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-26050iKCH12199603-199708

sub04485-26120

main04485-26070iKCH12199508-199603

sub04485-26050

main04485-26080iKCH10,RCH11,VCH10199508-200409

sub04485-26110

main04485-26110iVCH22200409-200501

43211KNUCKLE, STEERING, RH

main43201-26020iKCH16,VCH16199510-200107

sub43201-26021

sub90304-76005

main43201-26021iKCH16,VCH16,28200107-200501

main43211-26080iKCH12199508-199608

main43211-26090iKCH12199508-199608

sub43211-26120

main43211-26110iKCH10,RCH11,VCH10199608-200501

main43211-26110iKCH12199608-199708

main43211-26120iKCH12199608-199708

43211GBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER)

main90106-12005iKCH10,12,RCH11199508-199703

main90106-12012iKCH1#,VCH1#,2#199510-200311

main90106-12015iVCH2#200311-200501

43212KNUCKLE, STEERING, LH

main43202-26020iKCH16,VCH16,28199510-200107

sub43202-26021

sub90304-76005

main43202-26021iKCH16,VCH16,28200107-200501

main43212-26050iKCH12199508-199608

main43212-26060iKCH12199508-199608

sub43212-26090

main43212-26080iKCH10,RCH11,VCH10199608-200501

main43212-26080iKCH12199608-199708

main43212-26090iKCH12199608-199708

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29295iKCH10,VCH10,22199508-200405

sub43330-29515

main43330-29305iKCH16,VCH16199510-200404

main43330-29345iVCH28200405-200501

main43330-29515iVCH22200405-200501

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29295iKCH10,12,RCH11,VCH10199508-200405

sub43330-29515

main43330-29305iKCH16,VCH16199510-200404

main43330-29345iVCH28200405-200501

main43330-29515iVCH22200405-200501

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-26010iKCH10,12,RCH11,VCH10199508-200501

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-26010iKCH10,12,RCH11,VCH10199508-200501

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-26010iKCH12199508-199708

main43355-26010iKCH10,RCH11,VCH10199508-200501

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-26010iKCH12199508-199708

main43355-26010iKCH10,VCH10,22199508-200501

4505

45619ACOVER, STEERING KNUCKLE STOPPER, RH

main45619-26020iKCH1#,VCH1#,2#199508-200501

45619BCOVER, STEERING KNUCKLE STOPPER, LH

main45619-26020iKCH1#,VCH1#,2#199508-200501

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-29035iKCH16199510-199708

main48066-29075iKCH12199508-199708

main48066-29085iKCH10,RCH11,VCH10199508-200501

main48066-29105iKCH16,VCH16,28199708-200501

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-29035iKCH16199510-199708

main48067-29075iKCH12199508-199708

main48067-29085iKCH10,RCH11,VCH10199508-200501

main48067-29105iKCH16,VCH16199708-200501

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26070iKCH10,12,RCH11199508-199608

sub48068-26072

main48068-26071iKCH10,12,RCH11199608-199708

sub48068-26072

main48068-26110iKCH16,VCH16199510-200501

main48068-26150iKCH10,VCH10,22199708-200407

sub48068-26151

main48068-26151iVCH22200407-200501

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26070iKCH10,12,RCH11199508-199608

sub48069-26072

main48069-26071iKCH10,12,RCH11199608-199708

sub48069-26072

main48069-26110iKCH16,VCH16,28199510-200501

main48069-26150iKCH10,VCH10,22199708-200407

sub48069-26151

main48069-26151iVCH22200407-200501

48167ARM, TORQUE

main48106-25020iKCH16,VCH16,28200103-200501

main48106-26020iKCH16,VCH16199510-200103

sub48106-25020

main48106-26040iKCH10,VCH10,22199508-200501

48190CAM ASSY, CAMBER ADJUST

main48190-26020iKCH10,VCH10,22199508-200501

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iKCH10,12,RCH11,VCH10199508-200501

48331ABUMPER, FRONT SPRING, NO.1

main48331-26091iKCH10,12,RCH11,VCH10199508-200501

main48331-26120iKCH16199510-199607

sub48331-26121

main48331-26121iKCH16,VCH16199607-199910

sub48331-26122

main48331-26122iKCH16,VCH16,28199910-200501

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iKCH1#,RCH11,VCH1#199508-200501

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02142iKCH10,VCH10,22199508-200501

main90948-02143iKCH10,VCH10,22199508-200501

48632BUSH, UPPER ARM

main48632-26010iKCH10,12,RCH11,VCH10199508-199907

main48632-26090iKCH10,VCH10,22199907-200501

main48635-26010iKCH12199508-199708

main48635-26040iKCH10,RCH11,VCH10199508-200501

48654BUSH, LOWER ARM

main48061-26040iKCH16,VCH16199510-200501

main48061-26050iKCH10,12,RCH11,VCH10199508-200501

9010114041

main90101-14041

9010212005

main90102-12005

9010512284

main90105-12284

9010512285

main90105-12285

9017016023

main90170-16023

9017112011

main90171-12011

9017116005

main90171-16005

9017908038

main90179-08038

9017918004

main90179-18004

9025203011

main90252-03011

9025204003

main90252-04003

9413061200

main94130-61200

9415010801

main94150-10801

9453101200

main94531-01200

9462211400

main94622-11400

9462211600

main94622-11600

42 parts on this diagram · 2 diagrams in section
