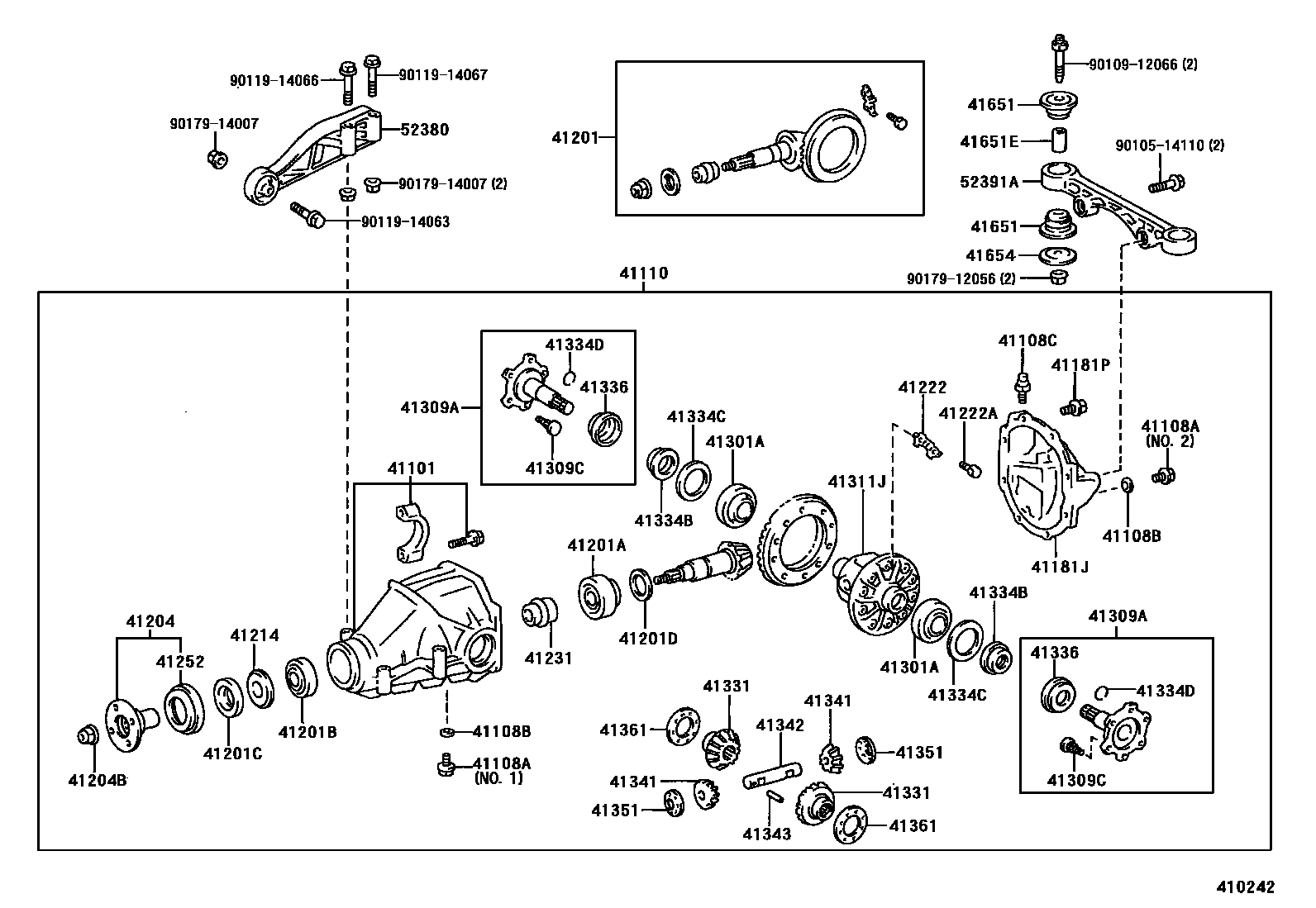

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1������ ����� ���������� 0008 1������ ����� ���������� 0009 1������ ����� ����������

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30050iKCH16,RCH11,VCH16199508-200311

main41101-30071iKCH16,VCH16199510-200501

main41101-30071iKCH10199508-200108

41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

main90341-18006iKCH1#,RCH11,VCH1#199508-200307

main90341-18030iKCH1#,RCH11,VCH1#199508-200307

main90341-18032iVCH2#200307-200501

main90341-18035iVCH2#200307-200501

41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)

main12157-10010iKCH1#,RCH11,VCH1#199508-200501

41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

main90930-03031iKCH1#,RCH11,VCH1#199508-200404

main90930-03077iVCH2#200404-200501

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26230iVCH16,28199510-200311

main41110-26290iVCH10,22199508-200501

sub41110-26730

main41110-26370iRCH11199508-199804

main41110-26450iKCH16,VCH16199510-200501

main41110-26580iKCH10199907-200205

sub41110-26790

main41110-26590iKCH16..G199907-200205

main41110-26600iKCH16199907-200205

main41110-26700iVCH28200311-200501

sub41110-26760

41181JCOVER, REAR DIFFERENTIAL CARRIER

main41181-22030iKCH16,VCH16,28199508-200311

main41181-22050iKCH10,VCH10,22199510-200501

main41181-22050iKCH10,12,VCH10199508-199907

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90105-10117iKCH16,VCH16199510-199907

sub90105-10417

main90105-10117iKCH10,12,VCH10199508-199907

sub90105-10417

main90105-10328iKCH16,RCH11,VCH16199508-200311

main90105-10417iVCH16;KCH16,VCH28..DX,G199907-200501

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19535iKCH16..G199907-200205

sub41201-19805

main41201-19545iKCH16,VCH16199510-200501

main41201-19605iVCH28200311-200501

sub41201-19606

main41201-80004iRCH11199508-199804

main41201-80050iKCH10199907-200205

sub41201-80781

main41201-80052iKCH10,12,VCH10199508-200501

sub41201-59265

main41201-80054iVCH28199510-200501

main41201-80109iKCH16199907-200205

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iKCH16,VCH16,28199508-200311

main90366-35028iKCH10,12199508-199609

sub90366-35087

main90366-35028iKCH16199510-199609

sub90366-35087

main90366-35087iVCH16;KCH16,VCH28..DX,G199609-200501

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iKCH16,RCH11,VCH16199508-200206

sub90366-30078

main90366-30025iKCH10199907-200108

sub90366-30067

main90366-30025iKCH10,12,VCH10199508-199907

sub90366-30067

main90366-30025iKCH16,VCH16199510-199907

sub90366-30067

main90366-30067iVCH10,22200108-200501

main90366-30067iVCH1#;KCH16,VCH2#..DX,G199907-200108

main90366-30078iKCH16,VCH16,28199907-200311

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iKCH1#,RCH11,VCH1#199508-200311

main90311-38070iVCH28200108-200501

main90311-38070iVCH28200108-200501

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iKCH16,VCH16,28199508-200311

main90201-35397iKCH16,VCH16,28199508-200311

main90201-35398iKCH16,VCH16,28199508-200311

main90201-35399iKCH16,RCH11,VCH16199508-200311

main90201-35400iKCH16,RCH11,VCH16199508-200311

main90201-35401iKCH16,VCH16,28199508-200311

main90201-35402iKCH16,RCH11,VCH16199508-200311

main90201-35403iKCH16,RCH11,VCH16199508-200311

main90201-35404iKCH16,RCH11,VCH16199508-200311

main90201-35438iKCH16,VCH16,28199508-200311

main90201-35439iKCH16,VCH16,28199508-200311

main90201-35440iKCH16,RCH11,VCH16199508-200311

main90201-35441iKCH16,RCH11,VCH16199508-200311

main90201-35497iKCH1#,VCH1#199508-200501

main90201-35498iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35499iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35500iKCH1#,VCH1#199508-200501

main90201-35501iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35502iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35503iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35504iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35505iKCH1#,VCH1#199508-200501

main90201-35506iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35507iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35508iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35509iKCH1#,VCH1#199508-200501

main90201-35510iKCH1#,VCH1#199508-200501

main90201-35511iKCH1#,VCH1#199508-200501

main90201-35512iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35513iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35514iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-35515iKCH1#,RCH11,VCH1#199508-200501

main90201-35516iKCH1#,VCH1#,2#199508-200501

main90201-35517iKCH1#,RCH11,VCH1#199508-200501

main90201-35518iKCH1#,VCH1#,2#199508-200501

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35041iKCH10,12,VCH10199508-199907

main41204-35041iKCH10,VCH10,22199510-200501

main41204-35050iKCH16,RCH11,VCH16199508-200311

41204BNUT (FOR REAR DRIVE PINION)

main90179-18020iKCH16,VCH16,28199508-200311

main90179-20018iVCH16;KCH16,VCH28..DX,G199508-200501

main90179-20018iKCH16,VCH16199510-200501

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iKCH10,12,VCH10199508-199907

main41214-26010iKCH10,VCH10,22199510-200501

main41214-30021iKCH16,RCH11,VCH16199508-200311

main41214-35020iKCH16,VCH16,28200108-200307

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-22010iKCH10,12,VCH10199508-200501

main41222-35020iVCH16;KCH16,VCH28..DX,G199510-200501

main41222-35030iKCH16,VCH16,28199508-200311

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iKCH1#,RCH11,VCH1#199508-200501

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iKCH16,RCH11,VCH16199508-200311

main41231-24010iKCH10,VCH10,22199510-200501

main41231-24010iKCH10,12,VCH10199508-199907

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iKCH16,VCH16,28199508-200311

main41252-35020iVCH16;KCH16,VCH28..DX,G199510-200501

main41252-35020iKCH10,12,VCH10199508-199907

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50001iKCH10,VCH10,22199510-200501

main90366-50001iKCH10,12,VCH10199508-199907

main90368-50006iKCH16,VCH16,28199508-200311

41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR

main41309-22030iVCH28200311-200501

main41309-22040iKCH16,VCH16199510-200501

main41309-30010iKCH16,RCH11,VCH16199508-200311

main41309-30020iKCH10,VCH10,22199508-200501

41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-10028iKCH10,12,VCH10199508-200501

main90114-10028iKCH16,VCH16199510-200310

41311JCASE, REAR DIFFERENTIAL

main41311-22060iKCH16,VCH16,28199508-200311

main41311-22080iKCH10,12,VCH10199508-200501

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-14040iKCH16,RCH11,VCH16199508-199907

sub41331-14041

main41331-14041iKCH16,VCH16,28199907-200005

main41331-22060iVCH10,22199508-200205

main41331-24020iKCH16,VCH16199510-200005

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-38011iKCH16,VCH16,28199508-200311

main90311-38071iKCH16,VCH16,28200108-200306

main90311-43001iKCH16,VCH16199510-200412

sub90311-43009

main90311-43001iKCH10,12,VCH10199508-199907

sub90311-43009

main90311-43009iVCH2#200412-200501

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-50021iKCH10200108-200205

main90201-52001iKCH1#,VCH1#199508-200501

main90201-52002iKCH16..G;KCH10,VCH1#,2#199508-200108

main90201-52003iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52004iKCH1#,VCH1#199508-200108

main90201-52005iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52006iKCH16..G;KCH10,VCH1#,2#199508-200108

main90201-52007iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52008iKCH16..G;KCH10,VCH1#,2#199508-200108

main90201-52009iKCH1#,VCH1#199508-200501

main90201-52010iKCH1#,VCH1#199508-200108

main90201-52011iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52012iKCH16..G;KCH10,VCH1#,2#199508-200108

main90201-52013iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52014iKCH16..G;KCH10,VCH1#,2#199508-200108

main90201-52015iKCH1#,VCH1#199508-200501

main90201-52016iKCH16..G;KCH10,VCH1#,2#199508-200108

main90201-52017iKCH1#,VCH1#199508-200501

main90201-52018iKCH16..G;KCH10,VCH1#,2#199508-200108

main90201-52019iKCH1#,VCH1#199508-200501

main90201-52020iKCH1#,VCH1#199508-200108

main90201-52021iVCH1#;KCH16,VCH2#..DX,G199508-200501

main90201-52022iKCH1#,VCH1#199508-200108

main90201-52023iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52024iKCH1#,VCH1#199508-200108

main90201-52025iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52026iKCH16..G;KCH10,VCH1#,2#199508-200108

main90201-52027iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52028iKCH1#,VCH1#199508-200108

main90201-52029iKCH16..G;KCH10,VCH1#,2#199508-200501

main90201-52030iKCH1#,VCH1#199508-200108

main90201-52031iKCH1#,VCH1#199508-200501

main90201-65007iKCH16,VCH16,28199508-200311

main90201-65008iKCH16,RCH11,VCH16199508-200311

main90201-65009iKCH16,VCH16,28199508-200311

main90201-65010iKCH16,VCH16,28199508-200311

main90201-65011iKCH16,RCH11,VCH16199508-200311

main90201-65012iKCH16,RCH11,VCH16199508-200311

main90201-65013iKCH16,RCH11,VCH16199508-200311

main90201-65014iKCH16,RCH11,VCH16199508-200311

main90201-65015iKCH16,VCH16,28199508-200311

main90201-65016iKCH16,VCH16,28199508-200311

main90201-65017iKCH16,RCH11,VCH16199508-200311

main90201-65018iKCH16,VCH16,28199508-200311

main90201-65019iKCH16,VCH16,28199508-200311

main90201-65020iKCH16,VCH16,28199508-200311

main90201-65021iKCH16,VCH16,28199508-200311

main90201-65022iKCH16,RCH11,VCH16199508-200311

main90201-65023iKCH16,RCH11,VCH16199508-200311

main90201-65024iKCH16,RCH11,VCH16199508-200311

main90201-65025iKCH16,VCH16,28199508-200311

main90201-65026iKCH16,VCH16,28199508-200311

main90201-65027iKCH16,RCH11,VCH16199508-200311

main90201-65028iKCH16,RCH11,VCH16199508-200311

main90201-65029iKCH16,VCH16,28199508-200311

main90564-46014iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46015iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46016iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46017iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46018iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46019iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46020iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46021iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46022iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46023iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46024iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46025iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46026iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46027iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46028iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46029iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46030iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46031iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46032iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46033iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46034iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46035iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46036iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46037iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46038iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46039iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46040iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46041iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46042iKCH16..G;KCH10,VCH1#,2#200108-200501

main90564-46043iKCH16..G;KCH10,VCH1#,2#200108-200501

41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iVCH28199907-200311

main90521-29002iKCH16,RCH11,VCH16199508-199907

main90521-34003iVCH16;KCH16,VCH28..DX,G199510-200501

main90521-34003iKCH10,12,VCH10199508-200501

41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iKCH16,RCH11,VCH16199508-200311

main41336-24010iKCH10,12,VCH10199508-199907

main41336-24010iKCH10,VCH10,22199510-200501

41341PINION, REAR DIFFERENTIAL

main41341-30020iVCH16;KCH16..G199907-200005

sub41341-30050

main41341-30020iKCH16,RCH11,VCH16199508-199907

sub41341-30050

main41341-30040iKCH10,12,VCH10199508-200205

main41341-35010iKCH16,VCH16199510-199907

sub41341-14041

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iKCH16,VCH16,28199508-200005

sub41342-22021

main41342-22021iKCH16,VCH16,28200005-200311

main41342-22030iVCH28199508-200501

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iKCH1#,VCH1#,2#199508-200501

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iKCH10,12,VCH10199508-200501

main41351-30060iKCH16,VCH16,28199508-200311

main41351-30060iVCH16;KCH16,VCH28..DX,G199510-200501

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-14200iVCH16;KCH16,VCH28..DX,G199907-200302

sub41361-14201

main41361-14201iVCH28200302-200501

main41361-14210iKCH16,VCH16199510-200302

sub41361-14211

main41361-14210iKCH16,VCH16..G..5D200004-200205

sub41361-14211

main41361-14211iVCH28200302-200501

main41361-30040iKCH16,VCH16,28199508-200311

main41361-30050iKCH16,RCH11,VCH16199508-200311

main41361-30060iKCH16,VCH16,28199508-200311

main41361-30070iKCH16,VCH16,28199508-200311

main41361-30080iKCH16,RCH11,VCH16199508-200108

main41361-30090iKCH16,RCH11,VCH16199508-200108

main41361-30100iKCH16,VCH16,28199508-200108

main41361-40021iKCH10,VCH10,22199508-200501

main41361-40100iKCH10199712-200501

main41361-40110iKCH10,VCH10199712-200501

main41361-40120iVCH10,22199712-200501

main41361-40130iKCH10199712-200501

main41361-40140iKCH10,VCH10199712-200501

main41361-40150iVCH10,22199907-200501

main41362-40021iKCH10,12,VCH10199508-200501

main41363-40021iKCH10,12,VCH10199508-200501

41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1

main41651-26040iKCH10,16,RCH11199508-200501

41651ECOLLAR (FOR REAR DIFFERENTIAL MOUNT CUSHION)

main90387-22007iKCH10,16,RCH11199508-200501

41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER

main41654-26050iKCH1#,VCH1#,2#199508-200501

52380SUPPORT, REAR DIFFERENTIAL, NO.1

main52380-26080iKCH10,16,RCH11199508-200106

sub52380-26081

main52380-26081iKCH1#,VCH1#,2#200106-200409

sub52380-26082

main52380-26082iVCH2#200410-200501

52391ASUPPORT, REAR DIFFERENTIAL

main52391-26150iKCH10,16,RCH11199508-200501

main52391-26200iVCH1#199708-200205

9010514110

main90105-14110

9010912066

main90109-12066

9011914063

main90119-14063

9011914066

main90119-14066

9011914067

main90119-14067

9017912056

main90179-12056

9017914007

main90179-14007

45 parts on this diagram · 9 diagrams in section
