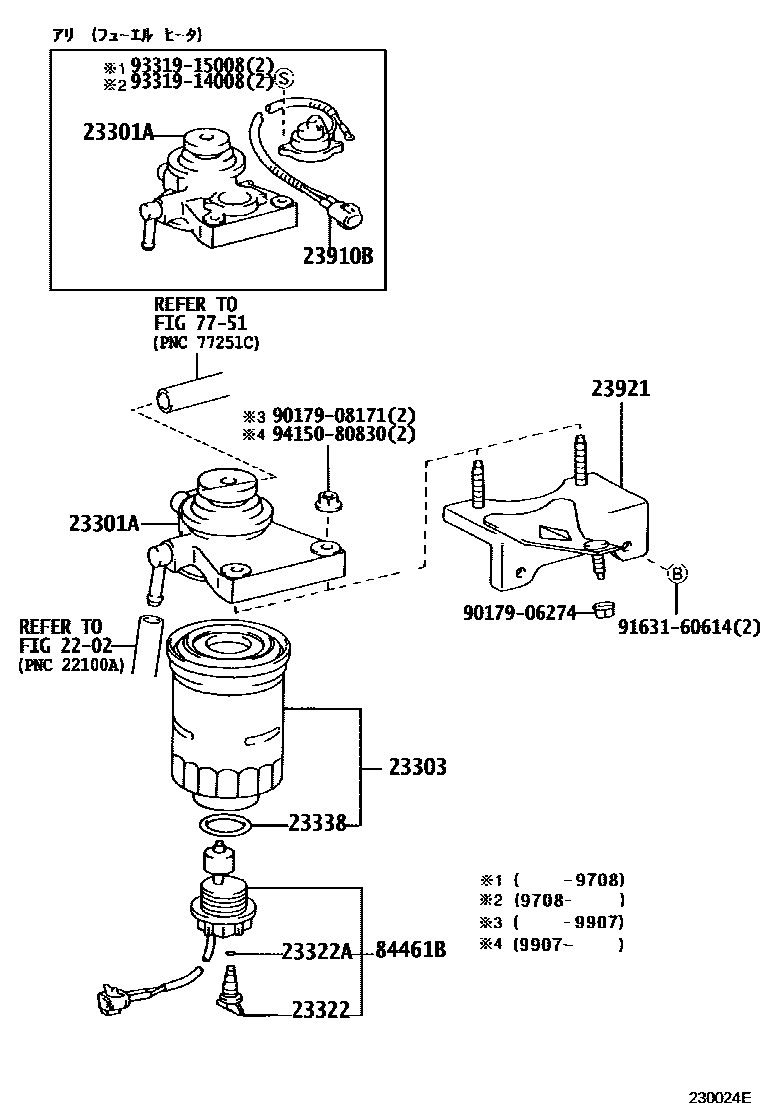

FUEL FILTER

2202

23301ACAP ASSY, FUEL FILTER

main23380-67090i1KZTE..KCH1#199508-199708

main23380-67100i1KZTE..KCH1#199508-199708

main23380-67240i1KZTE..KCH1#199708-199907

sub23380-67241

main23380-67250i1KZTE..KCH1#..4D199907-200205

sub23380-67251

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1KZTE..KCH1#199508-199708

main23390-64450i1KZTE..KCH1#199708-199907

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i1KZTE..KCH1#199508-199708

main23388-64470i1KZTE..KCH1#199708-199907

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KZTE..KCH1#199508-199907

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KZTE..KCH1#199508-199907

23910BHEATER ASSY, FUEL

main23910-54070i1KZTE..KCH1#199508-199708

main23910-54120i1KZTE..KCH1#199708-199907

23921SUPPORT, FUEL FILTER

main23921-54370i1KZTE..KCH1#199508-199907

7751

84461BSWITCH, LEVEL WARNING

main84461-26080iKCH1#199508-199708

sub84461-35110

main84461-26090iKCH1#199708-199907

sub84461-26091

9017906274

main90179-06274

9017908171

main90179-08171

9163160614

main91631-60614

9331914008

main93319-14008

9331915008

main93319-15008

9415080830

main94150-80830

16 parts on this diagram · 1 diagram in section
