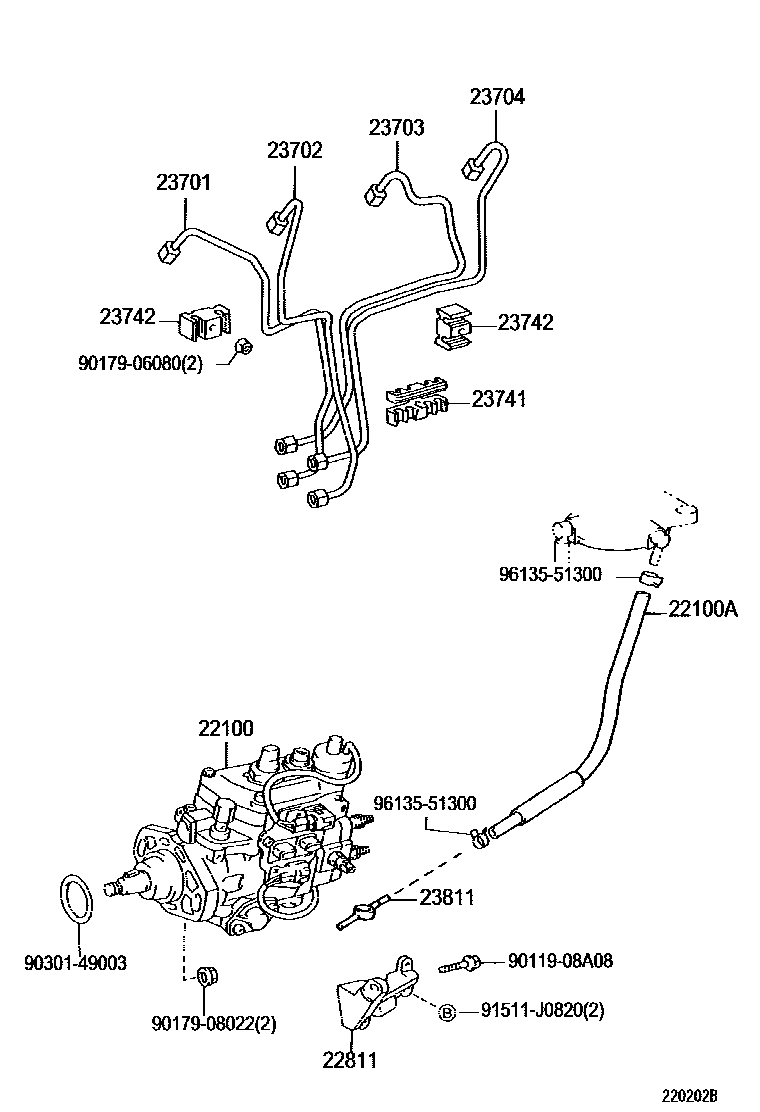

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22811STAY, INJECTION PUMP, NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
9011908A08
9017906080
9017908022
9030149003
91511J0820
9613551300
16 parts on this diagram · 1 diagram in section
