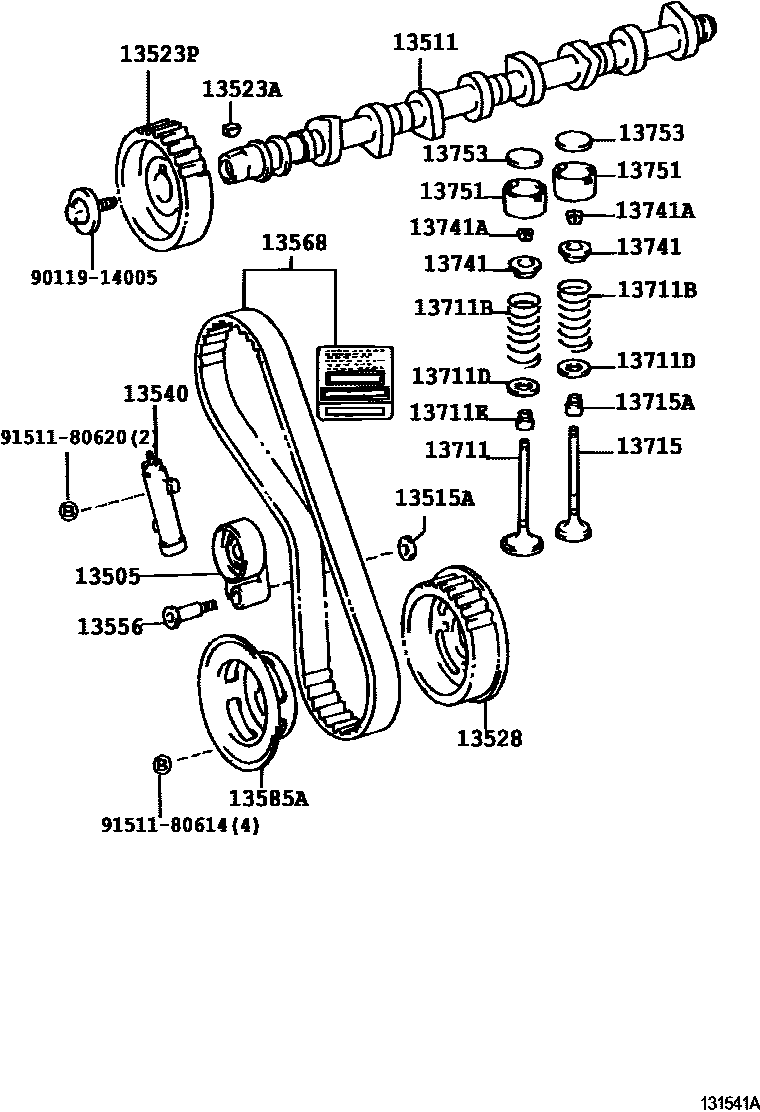

CAMSHAFT & VALVE
13515GEAR, DISTRIBUTOR DRIVE
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13528GEAR, CAMSHAFT DRIVE
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13585AFLANGE, CAMSHAFT TIMING PULLEY, NO.1
13711VALVE, INTAKE
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
9011914005
main90119-14005
9151180614
main91511-80614
9151180620
main91511-80620
25 parts on this diagram · 3 diagrams in section
