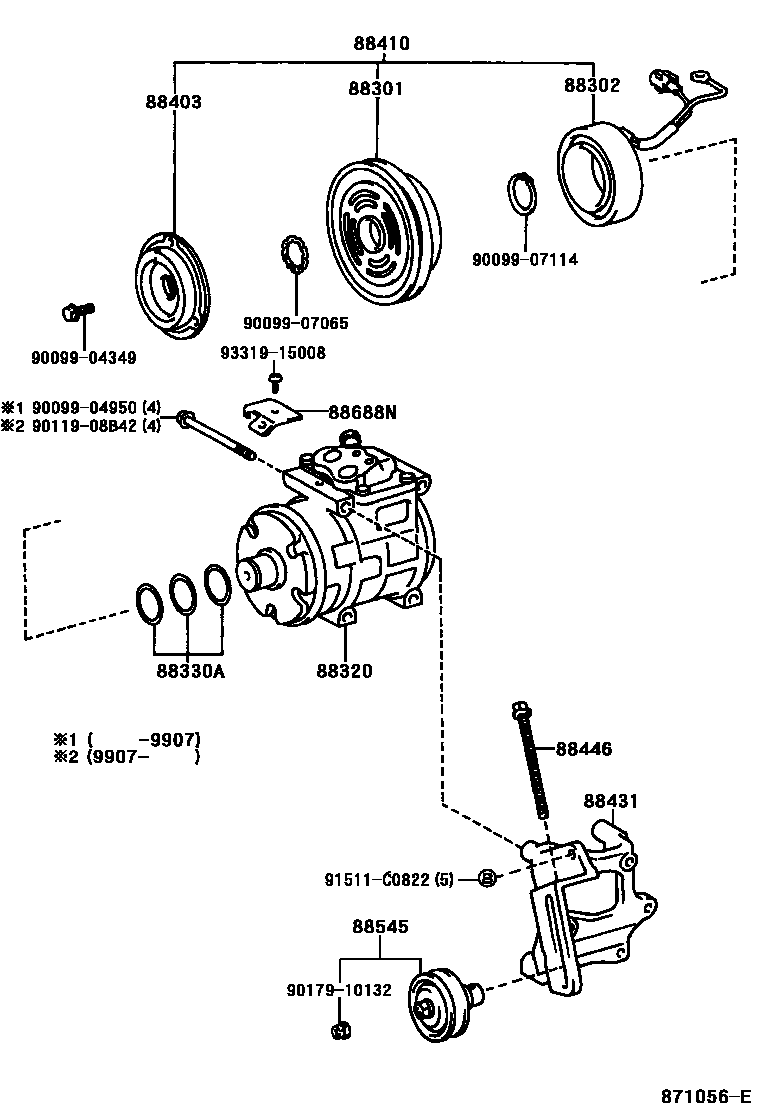

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRCH41,47199704-199907

main88412-22070iKCH4#199704-199907

main88412-26030iLXH4#199706

main88412-26070iKCH4#199907

main88412-26080iRCH41,47199907

main88412-95J00iRCH42199706

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iKCH4#,LXH4#,RCH4#199704-199708

sub88411-2A030

main88411-2A030iKCH4#,LXH4#,RCH4#199708

88320COMPRESSOR ASSY, COOLER

main88320-26590iRCH41,47199704-199907

sub88320-26H91

main88320-26600iLXH4#,RCH42..STD199706

sub88320-60H91

main88320-26610iLXH4#..G;KCH4#..G07S;KCH4#..E,STD,WINT199704

sub88320-26H91

main88320-26660iKCH4#199907

main88320-26670iRCH41,47199907

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iKCH4#,LXH4#,RCH4#199704

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iKCH4#,RCH41,47199907

main88403-30290iKCH4#,LXH4#,RCH4#199704-199907

88410CLUTCH ASSY, MAGNET

main88410-26210iKCH4#199907

main88410-26220iRCH41,47199907

main88410-34020iRCH42199706

main88410-34040iRCH41,47199704-199907

main88410-35250iLXH4#199706

main88410-60330iKCH4#199704-199907

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26300iLXH4#199706

main88431-26320iRCH41,47199704-199907

main88431-26370iKCH4#199907

main88431-26390iRCH41,47199907

main88431-60220iKCH4#199704-199907

main88431-95J01iLXH4#..STD199706

88446BOLT, IDLE PULLEY

main88446-60040iKCH4#199704

main90099-04306iRCH41,47199704

88545PULLEY ASSY, IDLE

main88440-26070iLXH4#199706

main88440-26100iRCH41,47199704

main88440-60050iKCH4#199704

88688NBRACKET, COOLER

main88688-25200iRCH41,47199704-199907

main88688-2D770iKCH4#,LXH4#,RCH42199704-199907

main88688-2D770iKCH4#,LXH4#,RCH4#199907

main88688-37320iKCH4#199704-199907

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9017910132

main90179-10132

91511C0822

main91511-C0822

9331915008

main93319-15008

18 parts on this diagram · 4 diagrams in section
