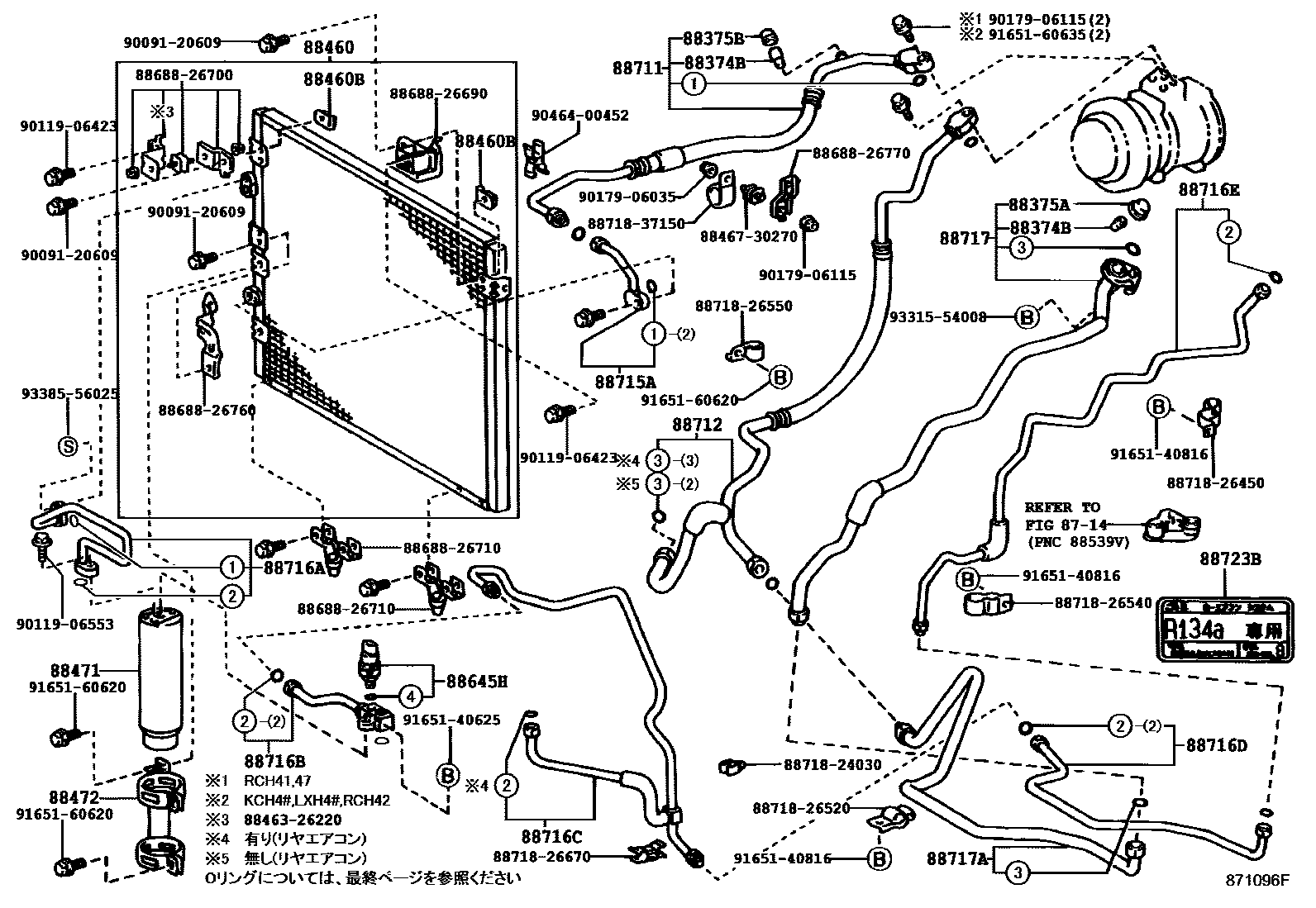

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1���� 0004 1���� ��(�-� �����) 0005 1���� ��(��� �����) 0006 1���� ��(�-� �����) 0007 1�� 0008 1�� ��(�-� �����) 0009 1�� 0010 1��� ����� 0011 1O-RING

8714

88374BVALVE, SERVICE, NO.1

main88374-30010iKCH4#,LXH4#,RCH4#199704-199804

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30290iKCH4#,LXH4#,RCH4#199704-199804

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iKCH4#,LXH4#,RCH4#199704-199804

88460CONDENSER ASSY, COOLER

main88460-26420iKCH4#,LXH4#199704-199804

main88460-26430iRCH4#199704-199804

main88460-26490iRCH4#199804-199907

main88460-26491iRCH4#199907

main88460-26500iKCH4#,LXH4#199804-199907

main88460-26501iKCH4#,LXH4#199907

88460BBRACKET, COOLER CONDENSER, NO.1

main88463-35120iKCH4#,LXH4#,RCH4#199704-199907

88471TANK, RECEIVER AIR CONDITIONER

main88471-28070iKCH4#,LXH4#,RCH4#199704-199804

88472BRACKET, RECEIVER TANK, NO.1

main88472-26140iKCH4#,LXH4#,RCH4#199704-199804

88645HSWITCH, PRESSURE NO.1

main88645-26020iLXH4#..G;KCH4#,RCH41,47199704

sub88645-48020

main88645-34010iLXH4#,RCH42..STD199706

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-26780iKCH4#199704-199907

main88711-26781iKCH4#199907

main88711-26790iRCH41,47199704-199907

main88711-26791iRCH41,47199907

main88711-26800iLXH4#199706

main88711-26810iRCH42199706

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-26690iKCH4#199704-199907

main88712-26691iKCH4#199907

main88712-26700iRCH41,47199704-199907

main88712-26701iRCH41,47199907

main88712-26710iLXH4#..G199706

main88712-26720iLXH4#..STD199706

main88712-26730iRCH42199706

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-26270iKCH4#,LXH4#,RCH4#199704-199804

main88715-26320iKCH4#,LXH4#,RCH4#199804

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2F310iKCH4#,LXH4#,RCH4#199704-199804

main88716-2F470iKCH4#,LXH4#,RCH4#199804-199907

main88716-2F471iKCH4#,LXH4#,RCH4#199907

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-2F350iKCH4#,LXH4#,RCH4#199704-199907

main88716-2F351iKCH4#,LXH4#,RCH4#199907

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-2F290iLXH4#,RCH42..STD199706

main88716-2F300iLXH4#..G;KCH4#,RCH41,47199704

88716DPIPE, COOLER REFRIGERANT LIQUID, D

main88716-2F260iKCH4#,LXH4#,RCH4#199704

main88716-2F320iKCH4#,RCH41..G,STD,WINT199704-199804

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-2F270iRCH4#199704

main88716-2F280iKCH4#,LXH4#199704

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-26810iRCH4#199704

main88717-26820iKCH4#,LXH4#199704

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-26800iKCH4#,LXH4#,RCH4#199704

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iKCH4#,LXH4#,RCH4#199704-199804

sub88733-30040

main88723-22060iKCH4#,LXH4#,RCH4#199804-200202

main88733-27010iLXH4#,RCH42..STD200202

main88733-30050iKCH4#,LXH4#,RCH41,47..G,V,WISTD200202

sub88733-37050

main88733-50010iKCH4#,RCH41,47..W08S200202

sub88733-40020

8846326220BRACKET, COOLER CONDENSER, NO.1

main88463-26220

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8868826690BRACKET, COOLER DIAPHRAGM

main88688-26690

8868826700BRACKET, COOLER DIAPHRAGM

main88688-26700

8868826710BRACKET, COOLER DIAPHRAGM

main88688-26710

8868826760BRACKET, COOLER DIAPHRAGM

main88688-26760

8868826770BRACKET, COOLER DIAPHRAGM

main88688-26770

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

8871826450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26450

8871826520PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26520

8871826540PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26540

8871826550PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26550

8871826670PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26670

8871837150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37150

9009120609

main90091-20609

9011906423

main90119-06423

9011906553

main90119-06553

9017906035

main90179-06035

9017906115

main90179-06115

9046400452

main90464-00452

9165140625

main91651-40625

9165140816

main91651-40816

9165160620

main91651-60620

9165160635

main91651-60635

9331554008

main93315-54008

9338556025

main93385-56025

46 parts on this diagram · 11 diagrams in section
