HEATING & AIR CONDITIONING - WATER PIPING

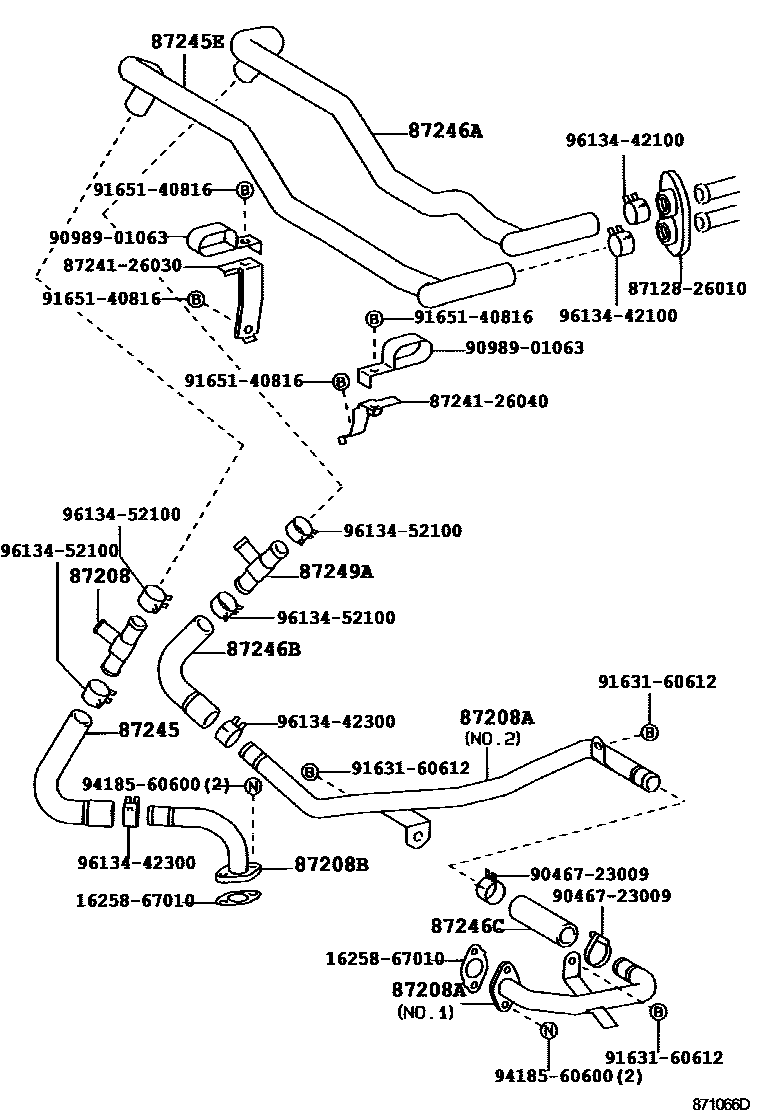

Parts diagram
87208PIPE SUB-ASSY, HEATER WATER
main16206-67020i199907-199911
sub16206-67021
main16206-67021i199911-200205
main87208-26450i199704
main87208-26630i199706
main87208-26640i199706
main87208-26650i199706
main87248-60460i199704-199907
87208APIPE SUB-ASSY, HEATER WATER, A
main87208-26260i199704-199907
main87208-26460i199704
main87208-26480i199704-199907
87208BPIPE SUB-ASSY, HEATER WATER, B
main87208-26220i199704
main87208-26470i199704
87245HOSE, HEATER WATER, INLET
main87245-26590i199704
main87245-26600i199704-199907
87245EHOSE, HEATER WATER, INLET E
main87245-26330i199704-199907
main87245-26800i199704
main87245-26870i199706
main87245-2F170i199706
main87245-2F550i199907
87246AHOSE, HEATER WATER, OUTLET A
main87245-26640i199704-199907
main87245-26770i199704
main87245-26860i199706
main87245-2F010i199706
main87245-2F040i199706
main87245-2F560i199907
87246BHOSE, HEATER WATER, OUTLET B
main87245-26650i199704-199907
main87245-26830i199706
main87245-2F160i199704
main87245-2F590i199907
main99556-20300i199706
87246CHOSE, HEATER WATER, OUTLET C
main87245-26650i199907
main87245-26780i199704
main87245-26820i199706
main87245-2F020i199706
main87245-2F280i199704-199907
87249APIPE, HEATER WATER OUTLET, A
main87248-26150i199706
main87248-60460i199704
1625867010GASKET(FOR HEATER RETURN)
main16258-67010
8712826010GROMMET, HEATER
main87128-26010
8724126030CONTROLLER, WATER VALVE
main87241-26030
8724126040CONTROLLER, WATER VALVE
main87241-26040
9046723009
main90467-23009
9098901063
main90989-01063
9163160612
main91631-60612
9165140816
main91651-40816
9418560600
main94185-60600
9613442100
main96134-42100
9613442300
main96134-42300
9613452100
main96134-52100

21 parts on this diagram · 9 diagrams in section
