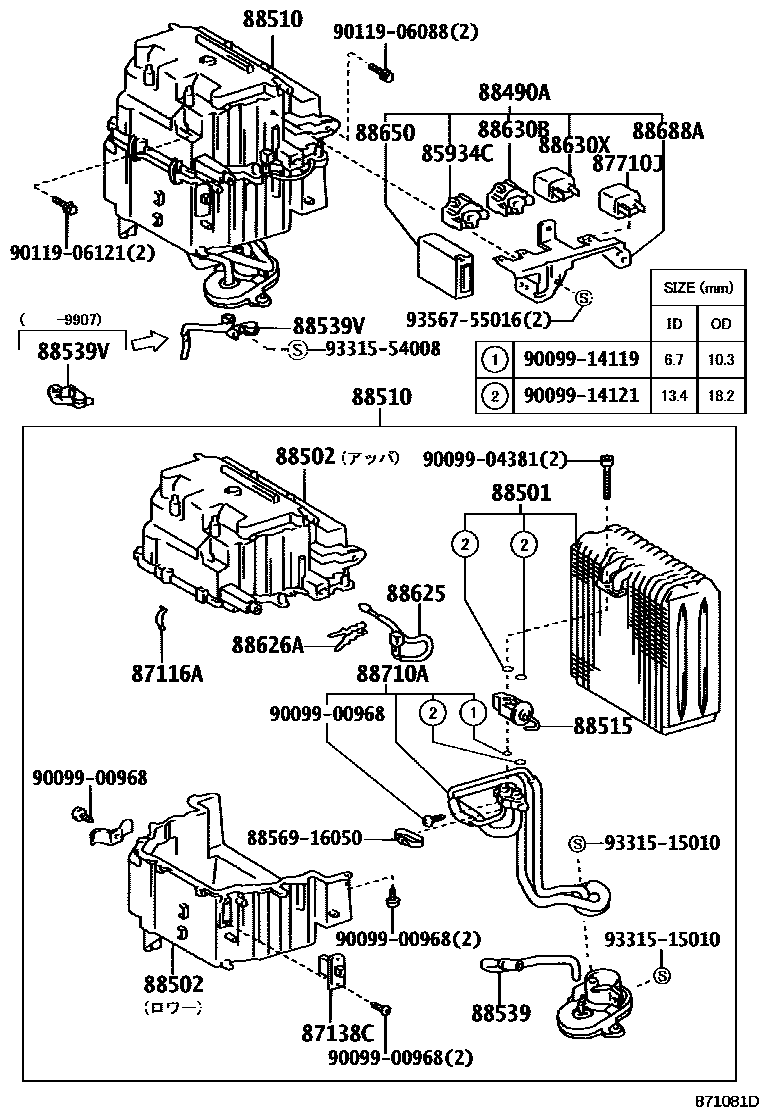

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1����---����� 0002 1����---�-� 0003 1��---����� 0004 1��---����� 0005 1��---�-� 0006 1�-� �����

85934CRELAY, MAGNET-CLUTCH

main88630-26040iKCH4#,LXH4#,RCH4#199709-199907

main90987-05003iLXH4#;KCH4#,RCH4#..E,STD199704-199709

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iKCH4#,LXH4#,RCH4#199704

87138CRESISTOR, BLOWER

main87138-26040iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199704-199907

main87138-26040iRCH41..5D;RCH41..(G,V,WISTD)..W08S;KCH4#,RCH47..(G,V,WISTD)..(W07S,W08S)199804

main87138-26050iLXH4#;KCH4#,RCH4#..E,STD199704-199804

87710JRELAY, QUICK HEATER

main90987-02009iKCH4#199704

88490APARTS ASSY, ELECTRICAL

main88490-26030iLXH4#..G;KCH4#,RCH41,47..E,STD199704-199804

main88490-26040iRCH42199706

main88490-26050iLXH4#..STD199706

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-26101iKCH4#,LXH4#,RCH4#199704

88502CASE SUB-ASSY, COOLING UNIT

main88502-26010iKCH4#,LXH4#,RCH4#199704

main88502-26021iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199704-199907

main88502-26021iRCH41..5D;RCH47..W07S199804

main88502-26021iKCH4#;RCH41,47..W08S199907

main88502-26031iLXH4#;KCH4#,RCH4#..E,STD199704-199804

88510UNIT ASSY, COOLER

main88510-2F200iLXH4#;KCH4#,RCH4#..E,STD199704-199804

main88510-2F210iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199704-199907

main88510-2F210iRCH41..5D;RCH41..(G,V,WISTD)..W08S;KCH4#,RCH47..(G,V,WISTD)..(W07S,W08S)199804

88515VALVE, COOLER EXPANSION

main88515-20100iKCH4#,LXH4#,RCH4#199704-199904

sub88515-22240

main88515-22240iKCH4#,LXH4#,RCH4#199904

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-26360iKCH4#,LXH4#,RCH4#199704

88539VHOSE, COOLER UNIT DRAIN, NO.2

main88539-26340iKCH4#,LXH4#,RCH4#199704-199907

sub88539-26341

main88539-26341iKCH4#,LXH4#,RCH4#199907

88625THERMISTOR, COOLER, NO.1

main88625-26070iKCH4#,LXH4#,RCH4#199704

88626AHOLDER, THERMISTOR

main88626-33010iKCH4#,LXH4#,RCH4#199704

88630RELAY ASSY, COOLER

main88630-26020iKCH4#,RCH41,47..G,STD,WINT199704-199907

main88630-26170iKCH4#,RCH41,47199907

88630BRELAY ASSY, COOLER

main90987-05007iLXH4#;KCH4#,RCH4#..E,STD,WINT199704-199804

88630XRELAY ASSY

main85940-28020iLXH4#..G;KCH4#,RCH41,47..E,STD199704-199804

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-26211iLXH4#..G;KCH4#,RCH41,47..E,STD199704-199804

main88650-26220iRCH42199706

main88650-37060iLXH4#..STD199706

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-26630iLXH4#;KCH4#,RCH4#..E,STD199704-199804

88710ATUBE ASSY, AIR CONDITIONER

main88710-26710iKCH4#,LXH4#,RCH4#199704

8856916050CLAMP (FOR COOLER RELAY)

main88569-16050

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9011906088

main90119-06088

9011906121

main90119-06121

9331515010

main93315-15010

9331554008

main93315-54008

9356755016

main93567-55016

29 parts on this diagram · 6 diagrams in section
