HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1���� 0002 1��---������ ���� 0003 1��---������ ����,��(�-� ����)0004 1��---��� �� ����

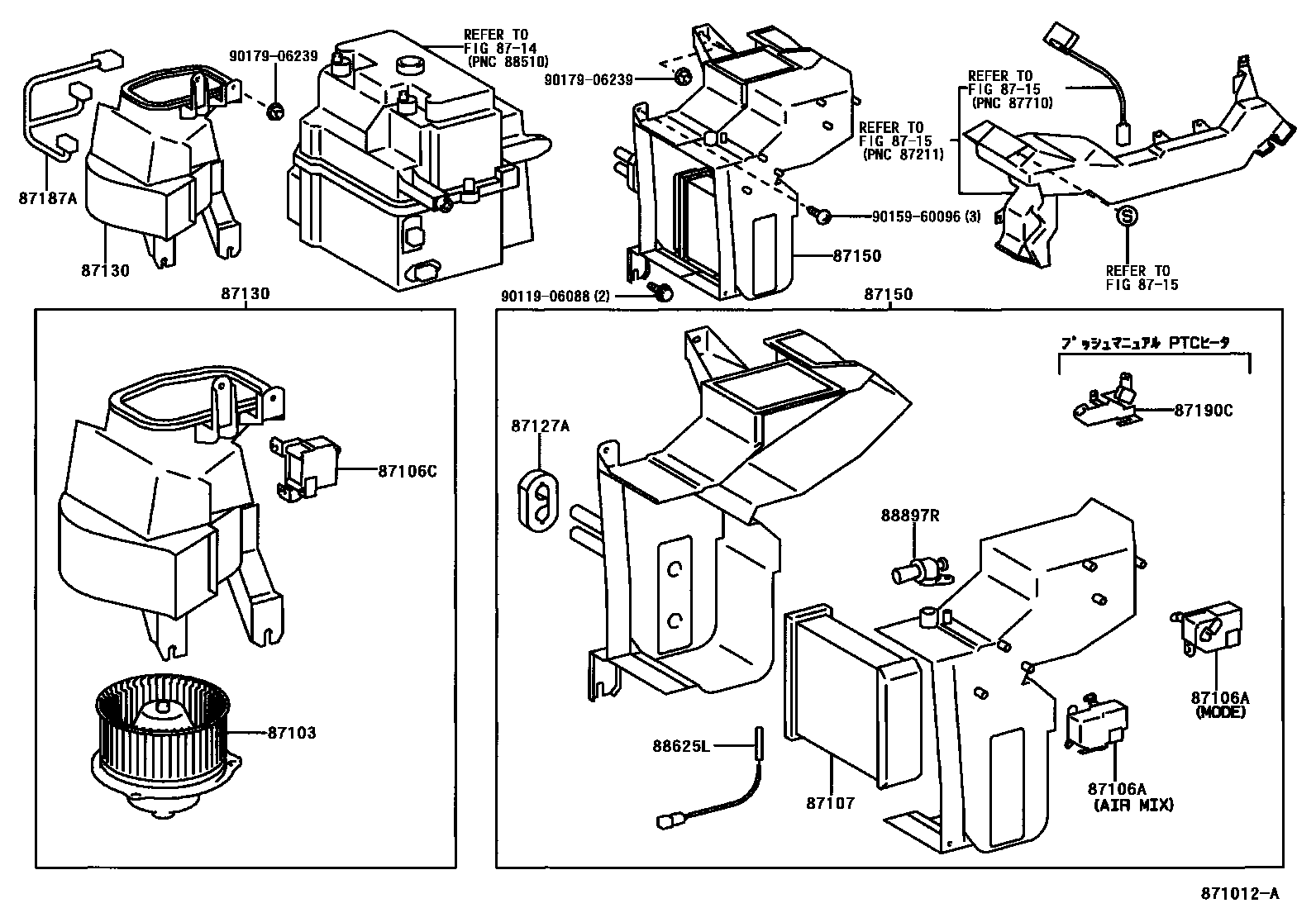

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-33030iKCH4#,LXH4#,RCH4#199808-199811

sub87103-33031

main87103-33031iKCH4#,LXH4#,RCH4#199811

main87103-44020iKCH4#,LXH4#,RCH4#199704-199807

87106ASERVO SUB-ASSY, DAMPER

main87106-26080iKCH4#,RCH41,47..STD199704-199907

main87106-26080iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main87106-26090iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199704-199907

main87106-26090iRCH41..5D;RCH41..(G,V,WISTD)..W08S;KCH4#,RCH47..(G,V,WISTD)..(W07S,W08S)199804

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-26070iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-26010iKCH4#,LXH4#,RCH4#199704

87127APACKING, HEATER RADIATOR PIPE

main87127-26010iKCH4#,LXH4#,RCH4#199704

87130BLOWER ASSY, HEATER, FRONT

main87130-26040iKCH4#,RCH41,47..G,STD,WINT199704-199810

sub87130-26041

main87130-26041iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199810

main87130-26070iKCH4#..E;LXH4#,RCH42199704-199810

main87130-26070iRCH42199706-199907

main87130-26070iLXH4#199706

8714

8715

87150RADIATOR ASSY, HEATER

main87150-26210iKCH4#,RCH41,47..STD199704-199907

main87150-26220iKCH4#..E;LXH4#,RCH42199704

main87150-26230iKCH4#..E199704-199907

main87150-26240iKCH4#..STD199704-199907

main87150-26250iRCH41..5D;RCH41..(G,V,WISTD)..W08S;KCH4#,RCH47..(G,V,WISTD)..(W07S,W08S)199804

main87150-26250iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199704-199907

87187AWIRE, BLOWER MOTOR LEAD

main87187-26050iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main87187-26060iKCH4#..E199704-199907

87190CSWITCH ASSY, TEMPERATURE CONTROL

main87190-26011iKCH4#..G08S199704-199907

88625LTHERMISTOR, COOLER

main88790-26020iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

88897RASPIRATOR

main88897-26070iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

9011906088

main90119-06088

9015960096

main90159-60096

9017906239

main90179-06239
