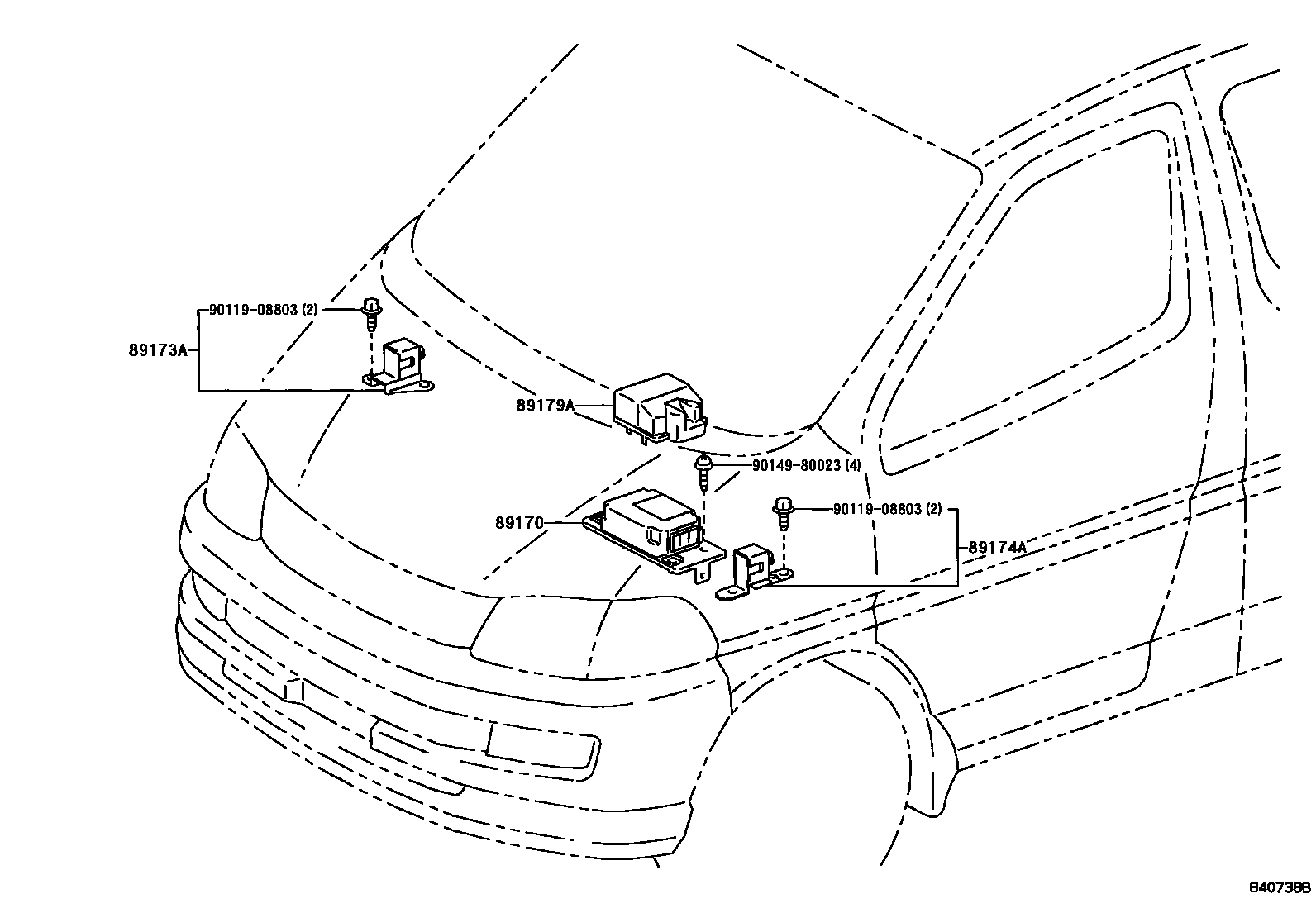

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-26060iKCH4#,LXH4#,RCH4#199704-199907

main89170-26070iLXH4#,RCH42199706-199907

main89170-26230iKCH4#,LXH4#,RCH4#199907

main89170-26240iLXH4#,RCH42199907

89173ASENSOR, AIRBAG, FRONT RH

main89173-29175iKCH4#,LXH4#,RCH4#199907

89174ASENSOR, AIRBAG, FRONT LH

main89174-29055iKCH4#,LXH4#,RCH4#199907

89179ACOVER, AIRBAG SENSOR

main89179-26030iKCH4#,LXH4#,RCH4#199704

9011908803

main90119-08803

9014980023

main90149-80023

6 parts on this diagram · 1 diagram in section
