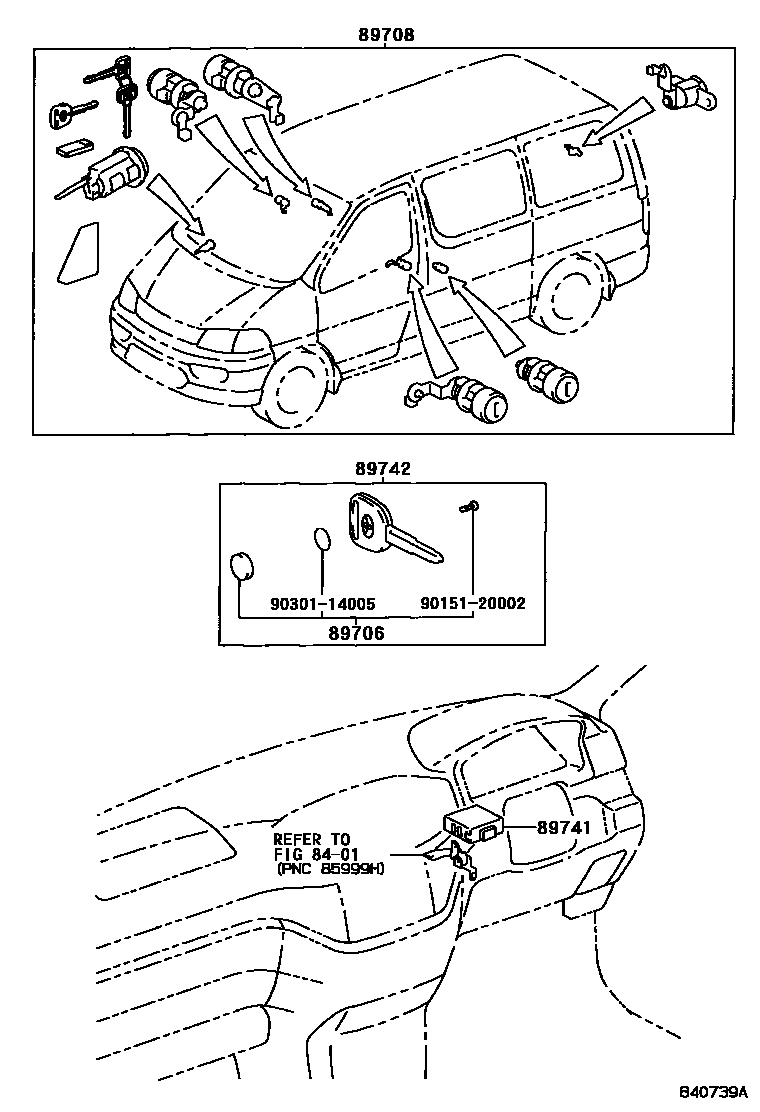

WIRELESS DOOR LOCK

0001 1 0002 1

8401

89706BATTERY SET, TRANSMITTER

main89706-50010iKCH4#,RCH41..G199704-199907

sub89745-48020

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-26010iKCH4#,RCH41..G199704-199804

main89708-26011iKCH4#,RCH41,47..4D..(G,STD,WINT)199804-199907

main89708-26061iRCH41,47..5D199804-199907

89741RECEIVER, DOOR CONTROL

main89741-26061iKCH4#,RCH41..G199704-199907

main89741-26080iKCH4#,RCH41,47199907

89742TRANSMITTER, DOOR CONTROL

main89742-26050iKCH4#,RCH41..G199704-199907

9015120002

main90151-20002

9030114005

main90301-14005

7 parts on this diagram · 2 diagrams in section
