SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1������-� 0005 1��� 0006 1��� 0007 1R/B,J/B,F/B 0008 1������������ ���� 0009 1�����-��� ���� 0010 1��� 0011 1�-�,���,��� & �-�

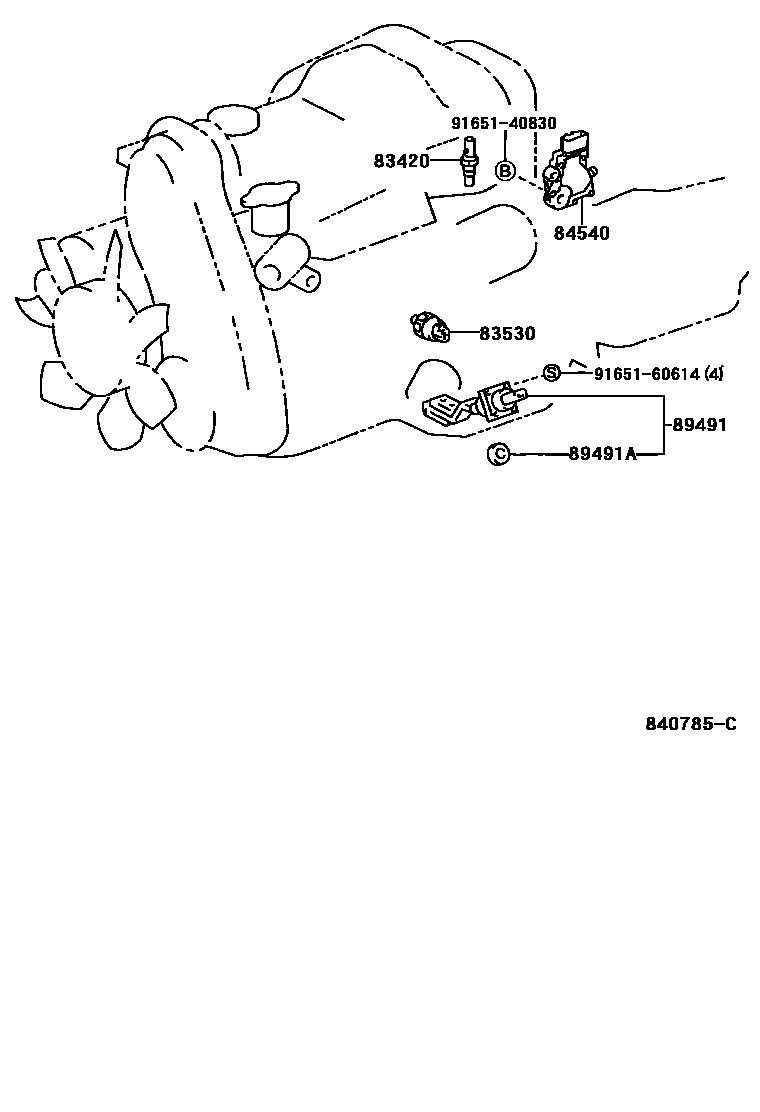

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iKCH4#,LXH4#,RCH42199704

main83420-20040iRCH41,47199704

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRCH4#199803

main83530-30060iLXH4#199706-199803

sub83530-60030

main83530-30090iRCH4#199704-199803

sub83530-60020

main83530-60010iKCH4#199704

main83530-60030iLXH4#199803

84540SWITCH ASSY, NEUTRAL START

main84540-30270iKCH4#;RCH41..5D;RCH47..W07S199704-199907

main84540-30290iLXH4#,RCH42..ATM199907

main84540-30290iRCH41..4D;LXH4#..ATM;RCH47..W08S199704-199907

main84540-30300iRCH41..4D;LXH4#..ATM;RCH47..W08S199704-199907

main84540-50020iKCH4#,RCH41,47200202

main84540-51010iKCH4#,RCH41,47199907-200202

89491SENSOR, ENGINE OIL LEVEL

main89491-26090iKCH46199704-199708

sub89491-26091

main89491-26091iKCH46199708

main89491-26120iKCH40199704-199708

sub89491-26121

main89491-26121iKCH40199708

main89491-26140iRCH42199706-199711

sub89491-26141

main89491-26141iRCH42199711

main89491-26150iRCH47199704

main89491-26160iLXH4#199706

main89491-37010iRCH41199704-199711

sub89491-37011

main89491-37011iRCH41199711

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iKCH4#,LXH4#,RCH47199704-199711

main90430-27001iRCH41,42199704-199711

9165140830

main91651-40830

9165160614

main91651-60614

7 parts on this diagram · 11 diagrams in section
