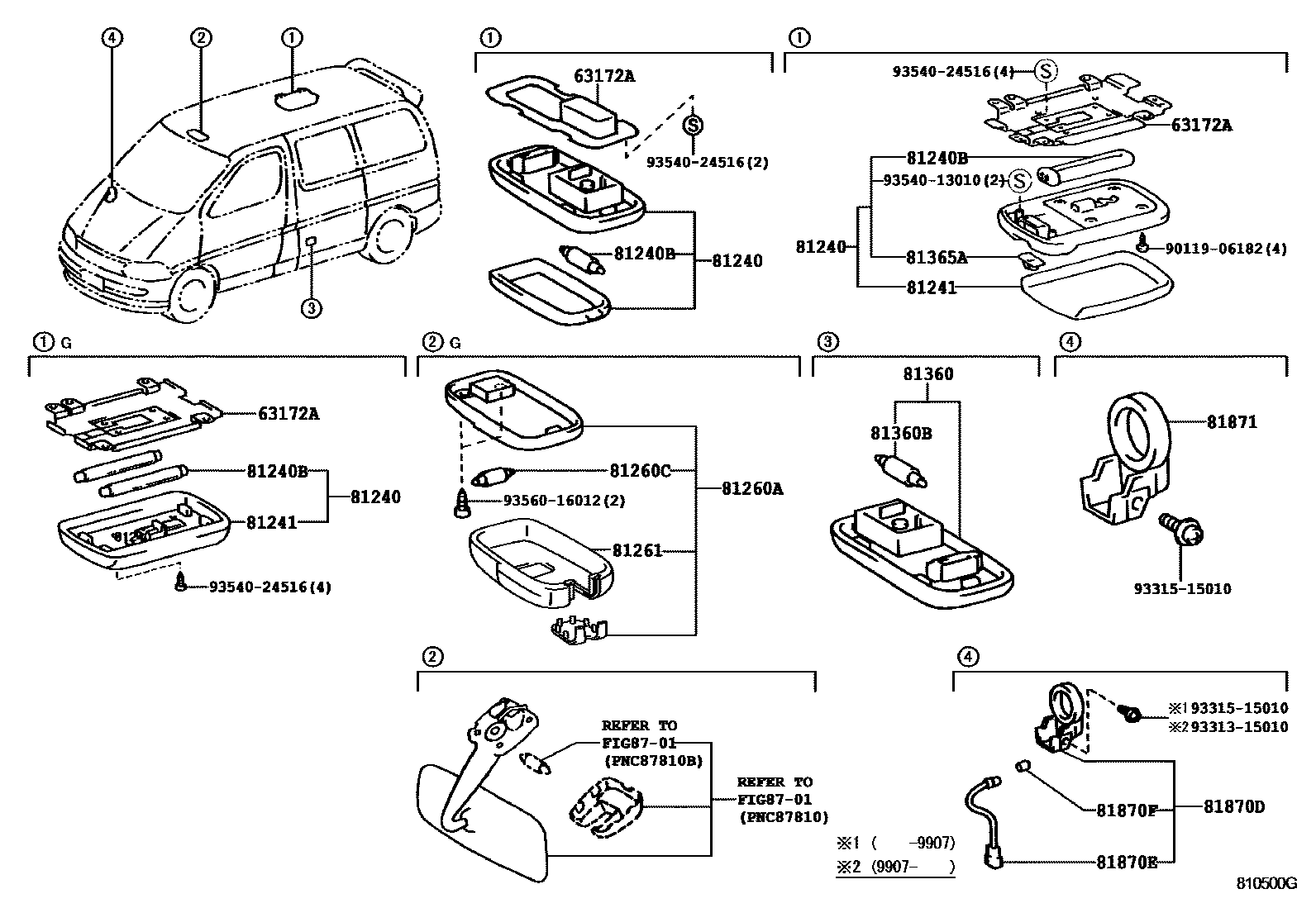

INTERIOR LAMP

0001 1 0002 1

63172ABASE, ROOM LAMP

main63172-26040iKCH4#..E199704-199907

main63172-26050iLXH4#..G199706

main63172-26060iLXH4#,RCH42..STD199706

81240LAMP ASSY, ROOM, NO.1

main81240-12020-B4iLXH4#,RCH42..STD199706

LT.GRAY,TRIM1#

sub81240-12020

main81240-26040-B2iKCH4#..E;LXH4#..G199704-199804

LT.GRAY,TRIM1#

sub81240-26040

main81240-26110-B0iKCH4#..E;LXH4#..G199804

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11033iKCH4#..E;LXH4#..G199704-199804

main90981-11046iKCH4#,RCH41,47..G,STD,WINT199704-199804

main99132-12100iLXH4#,RCH42..STD199706

81241LENS, ROOM LAMP, NO.1

main81241-12020iLXH4#,RCH42..STD199706

main81241-26110iKCH4#..E;LXH4#..G199804

main81241-95J04-B2iKCH4#..E;LXH4#..G199704-199804

LT.BLUISH GRAY,TRIM1#

sub81241-95J04

sub81240-95J04

81260ALAMP ASSY, MAP

main81240-26090-B0iKCH4#..E;LXH4#..G199704

LT.GRAY,TRIM1#

main81240-95J08-B2iKCH4#,RCH41,47..STD,WINT199704-199907

LT.GRAY,TRIM1#

sub81240-95J08

main81240-95J08-B5iRCH41,47..STD;RCH41,47..W07S;KCH4#..(G,STD)..(G07S,G08S)199704

LT.GRAY,TRIM6#

sub81240-95J08

main81240-95J08-B7iKCH4#,RCH41,47..WISTD199907

LT.GRAY,TRIM1#

sub81240-95J08

main81240-95J08-B9iKCH4#,RCH41,47..G,V199907

MD.CHARCOAL,TRIM4#

sub81240-95J08

81260CBULB(FOR MAP LAMP)

main90981-12020iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main90981-14011iKCH4#..E;LXH4#..G199704

81261LENS AND COVER, MAP LAMP

main81241-26090iKCH4#..E;LXH4#..G199704

main81241-95J08iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

main81245-95J07-B1iKCH4#,RCH41,47..STD,WINT199704-199907

sub81245-95J07

main81245-95J07-B2iKCH4#,RCH41,47..G,STD,WINT199704-199907

sub81245-95J07

main81245-95J07-B3iKCH4#,RCH41,47..G,V199907

sub81245-95J07

81360LAMP ASSY, STEP OR SPOT

main81250-95J05-B0iLXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD199704

BLUISH GRAY,TRIM1#

sub81250-95J05

main81250-95J05-E3iKCH4#,RCH41,47..(G,V)..W08S199907

ORCHID BROWN,TRIM4#

sub81250-95J05

main81250-95J05-G0iRCH41,47..5D199704-199907

DK.SAGE,TRIM6#

sub81250-95J05

81360BBULB, STEP OR SPOT LAMP

main99132-13050iLXH4#..G;KCH4#,RCH41,47..4D199704

81365AKNOB, ROOM LAMP SWITCH

main81365-26010iKCH4#,RCH41,47..G,STD,WINT199704-199907

main81365-26010-C0iKCH4#,RCH41,47..WISTD199907

BLACK,TRIM1#

sub81365-26010

main81365-26010-C0iKCH4#,RCH41,47..WISTD199907

BLACK,TRIM4#

sub81365-26010

main81365-26020-B0iKCH4#..E;LXH4#..G199804

LT.GRAY,TRIM1#

sub81365-26020

81870DLAMP ASSY, KEY CYLINDER

main81870-26011iLXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

81870EBULB, KEY CYLINDER LAMP

main90981-11014iLXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iLXH4#..G;KCH4#,RCH41,47..G,STD,WINT199704-199907

81871LENS, KEY ILLUMINATION

main81871-95J00iKCH4#..E;LXH4#,RCH42..STD199704

8701

9011906182

main90119-06182

9331315010

main93313-15010

9331515010

main93315-15010

9354013010

main93540-13010

9354024516

main93540-24516

9356016012

main93560-16012

21 parts on this diagram · 2 diagrams in section
