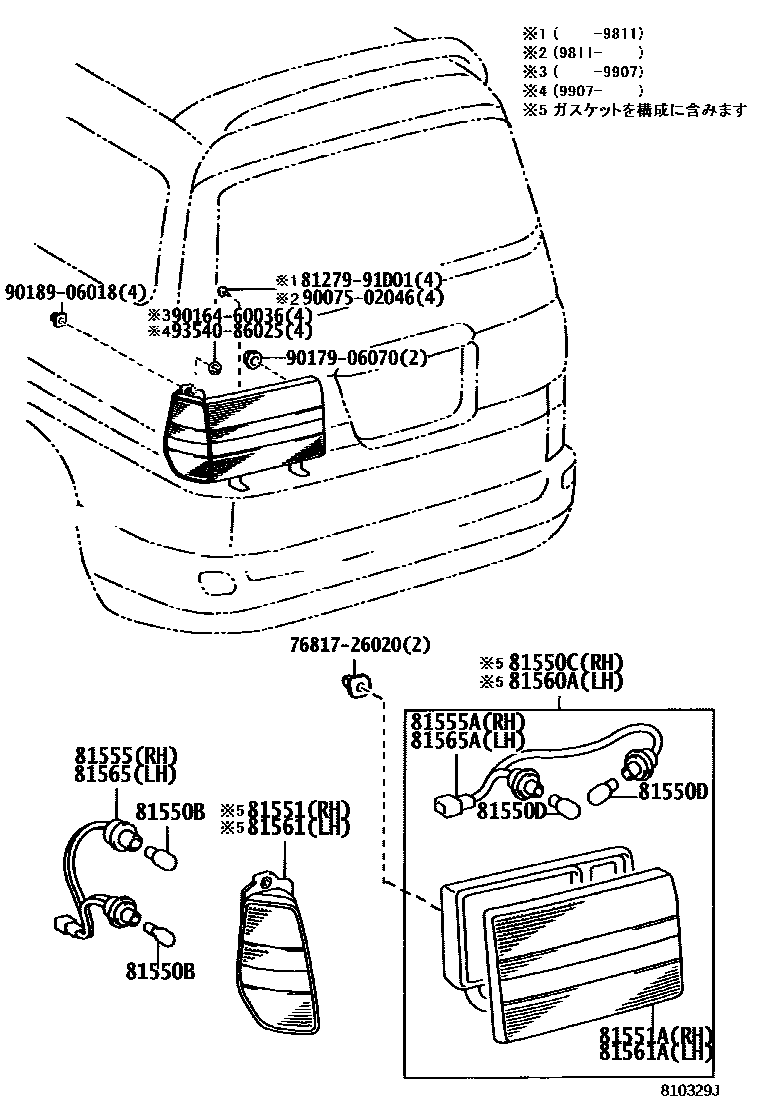

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043iKCH4#,LXH4#,RCH4#199704-199907

main90981-13044iKCH4#,LXH4#,RCH4#199704

main90981-15011iKCH4#,RCH41,47199907

81550CLAMP ASSY, REAR COMBINATION, RH

main81550-26230iKCH4#,RCH41,47..E,G,STD199704-199811

sub81550-26231

main81550-26231iKCH4#,RCH41,47..E,G,STD199811-199907

main81550-26250iKCH4#,RCH41,47..WINT199704-199811

sub81550-26251

main81550-26251iKCH4#,RCH41,47..WINT199811-199907

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-11059iKCH4#,RCH41,47199907

main90981-11059iKCH4#,RCH41,47199907

main90981-13043iKCH4#,RCH41,47199704-199907

main90981-13044iKCH4#,RCH41,47199704-199907

main90981-15011iKCH4#,RCH41,47199907

81551LENS, REAR COMBINATION LAMP, RH

main81551-26210iLXH4#,RCH42199706

main81551-26220iKCH4#,RCH41,47..E,G,STD199704-199907

main81551-26240-A0iKCH4#,RCH41,47..WINT199804-199907

main81551-26240-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main81551-26240-A0iKCH4#,RCH41,47..WINT199708-199907

main81551-26240-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main81551-26240-B1iKCH4#,RCH41,47..WINT199804-199907

main81551-26240-C0iKCH4#,RCH41,47..WINT199804-199907

main81551-26240-K0iKCH4#,RCH41,47..WINT199704-199907

DK. PURPLE MC.,936

main81551-26350-A0iKCH4#,RCH41,47..G,V199907

WHITE P.M.,2FZ

main81551-26350-A1iKCH4#,RCH41,47..V199907

WHITE,056

main81551-26350-A2iKCH4#,RCH41,47..V200004-200103

main81551-26350-B0iKCH4#,RCH41,47..V199912-200204

main81551-26350-B0iKCH4#,RCH41,47..G,V199907

SILVER ME.,2FY

main81551-26350-B1iKCH4#,RCH41,47..V199907

SILVER ME.,199

main81551-26350-C0iKCH4#,RCH41,47..G,V199907

BLACK MC.,2GA

main81551-26350-J0iKCH4#,RCH41,47..V199907

DK. BLUE MC.,2GB

main81551-26370-A0iKCH4#,RCH41,47..WISTD200008-200204

main81551-26370-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main81551-26370-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

main81551-26370-B1iKCH4#,RCH41,47..WISTD200008-200204

main81551-26370-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

81551ALENS, REAR COMBINATION LAMP, RH

main81551-26230iKCH4#,RCH41,47..E,G,STD199704-199811

sub81551-26231

main81551-26231iKCH4#,RCH41,47..E,G,STD199811-199907

main81551-26250iKCH4#,RCH41,47..WINT199704-199811

sub81551-26251

main81551-26251iKCH4#,RCH41,47..WINT199811-199907

main81551-26360iKCH4#,RCH41,47..G,V199907

main81551-26380iKCH4#,RCH41,47..WISTD199907

main81551-26390iKCH4#,RCH41,47..G,V199907

main81551-26400iKCH4#,RCH41,47..WISTD199907

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-26220iKCH4#,LXH4#,RCH4#199704-199907

main90075-60002iKCH4#,RCH41,47199907

main90075-60026iKCH4#,RCH41,47199907

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-26230iKCH4#,RCH41,47199704-199907

main81555-26360iKCH4#,RCH41,47199907

main81555-26390iKCH4#,RCH41,47199907

81560ALAMP ASSY, REAR COMBINATION, LH

main81560-26230iKCH4#,RCH41,47..E,G,STD199704-199811

sub81560-26231

main81560-26231iKCH4#,RCH41,47..E,G,STD199811-199907

main81560-26250iKCH4#,RCH41,47..WINT199704-199811

sub81560-26251

main81560-26251iKCH4#,RCH41,47..WINT199811-199907

81561LENS, REAR COMBINATION LAMP, LH

main81561-26210iLXH4#,RCH42199706

main81561-26220iKCH4#,RCH41,47..E,G,STD199704-199907

main81561-26240-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main81561-26240-A0iKCH4#,RCH41,47..WINT199708-199907

main81561-26240-A0iKCH4#,RCH41,47..WINT199804-199907

main81561-26240-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main81561-26240-B1iKCH4#,RCH41,47..WINT199804-199907

main81561-26240-C0iKCH4#,RCH41,47..WINT199804-199907

main81561-26240-K0iKCH4#,RCH41,47..WINT199704-199907

DK. PURPLE MC.,936

main81561-26350-A0iKCH4#,RCH41,47..G,V199907

WHITE P.M.,2FZ

main81561-26350-A1iKCH4#,RCH41,47..V199907

WHITE,056

main81561-26350-A2iKCH4#,RCH41,47..V200004-200103

main81561-26350-B0iKCH4#,RCH41,47..V199912-200204

main81561-26350-B0iKCH4#,RCH41,47..G,V199907

SILVER ME.,2FY

main81561-26350-B1iKCH4#,RCH41,47..V199907

SILVER ME.,199

main81561-26350-C0iKCH4#,RCH41,47..G,V199907

BLACK M.C.,2GA

main81561-26350-J0iKCH4#,RCH41,47..V199907

DK. BLUE MC.,2GB

main81561-26370-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main81561-26370-A0iKCH4#,RCH41,47..WISTD200008-200204

main81561-26370-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME.,199

main81561-26370-B1iKCH4#,RCH41,47..WISTD200008-200204

main81561-26370-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

81561ALENS, REAR COMBINATION LAMP, LH

main81561-26230iKCH4#,RCH41,47..E,G,STD199704-199811

sub81561-26231

main81561-26231iKCH4#,RCH41,47..E,G,STD199811-199907

main81561-26250iKCH4#,RCH41,47..WINT199704-199811

sub81561-26251

main81561-26251iKCH4#,RCH41,47..WINT199811-199907

main81561-26360iKCH4#,RCH41,47..G,V199907

main81561-26380iKCH4#,RCH41,47..WISTD199907

main81561-26390iKCH4#,RCH41,47..G,V199907

main81561-26400iKCH4#,RCH41,47..WISTD199907

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-26220iKCH4#,LXH4#,RCH4#199704-199907

main90075-60002iKCH4#,RCH41,47199907

main90075-60026iKCH4#,RCH41,47199907

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-26230iKCH4#,RCH41,47199704-199907

main81555-26360iKCH4#,RCH41,47199907

main81555-26390iKCH4#,RCH41,47199907

7681726020CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26020

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

9007502046

main90075-02046

9016460036

main90164-60036

9017906070

main90179-06070

9018906018

main90189-06018

9354086025

main93540-86025

19 parts on this diagram · 3 diagrams in section
