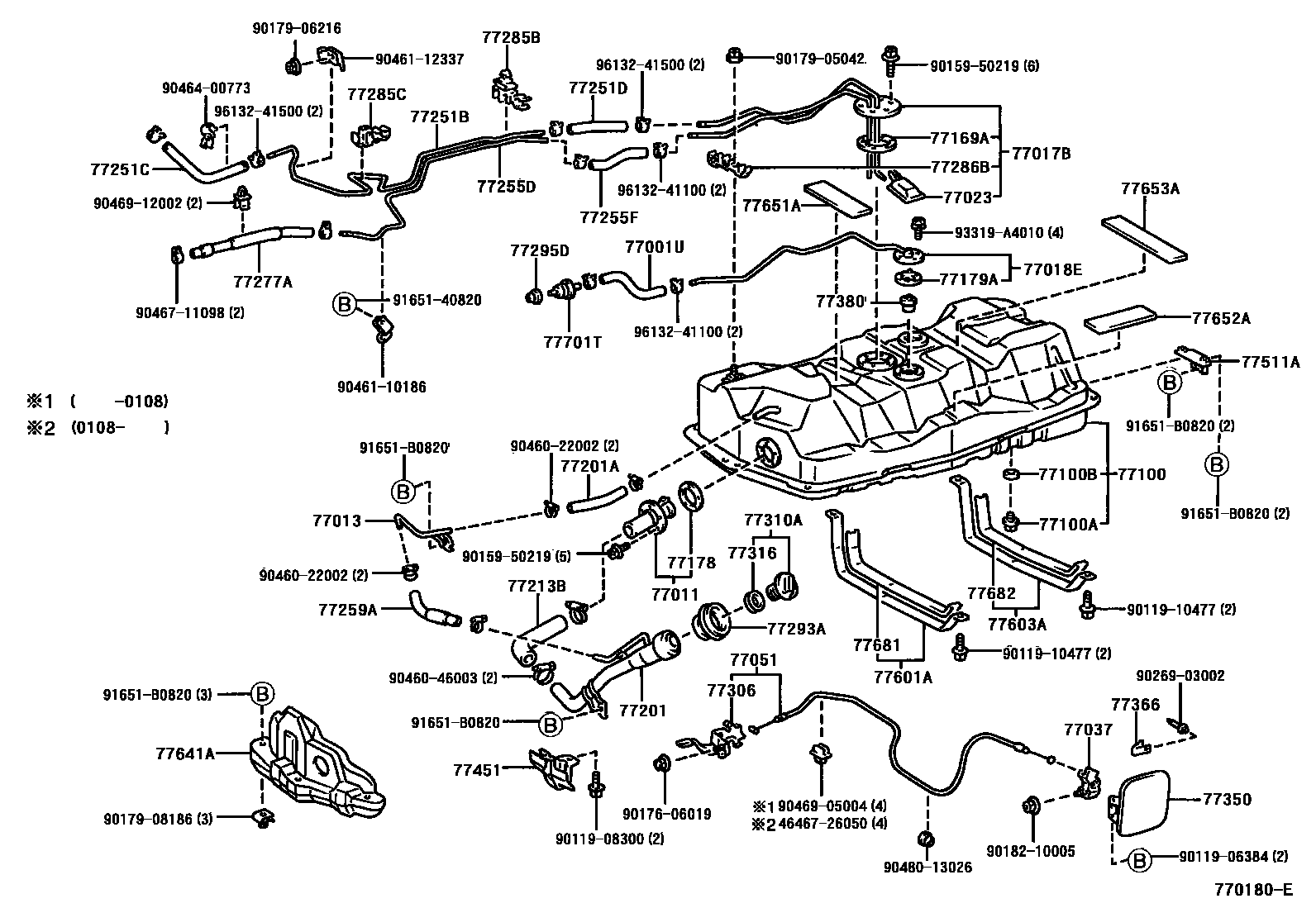

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77001UHOSE, FUEL

main95333-06040iKCH4#,LXH4#199704

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-26050iKCH4#,LXH4#,RCH4#199704

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-26110iKCH4#,LXH4#,RCH4#199704

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-26190iLXH4#199706

main77017-26210iKCH4#199704

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-26220iKCH4#,LXH4#,RCH4#199704

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-26010iKCH4#199704

main77023-32040iLXH4#199706

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95D01iKCH4#,LXH4#,RCH4#199704

77051LEVER SUB-ASSY, FUEL LID OPEN

main77050-26030iKCH4#,LXH4#,RCH4#199704-200105

main77050-26032iKCH4#,LXH4#,RCH4#200105

77100TANK ASSY, FUEL

main77001-26630iKCH4#,LXH4#,RCH4#199704

77100APLUG(FOR FUEL TANK)

main90105-12116iKCH4#,LXH4#,RCH4#199704-199903

77100BGASKET(FOR FUEL TANK)

main90430-12245iKCH4#,LXH4#,RCH4#199704-199903

77169AGASKET, FUEL SUCTION TUBE SET

main77169-32010iKCH4#,LXH4#,RCH4#199704

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iKCH4#,LXH4#,RCH4#199704

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iKCH4#,LXH4#,RCH4#199704

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26200iKCH4#,LXH4#,RCH4#199704

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95313-13017iKCH4#,LXH4#,RCH4#199704

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-26100iKCH4#,LXH4#,RCH4#199704

sub77213-26110

77251BTUBE, FUEL MAIN

main77251-26770iLXH4#199706-199805

main77251-26780iKCH4#199704-199805

main77251-26790iRCH42199706-199805

main77251-26800iRCH41,47199704-199805

main77251-26840iRCH42199805

main77251-26850iRCH41,47199805

main77251-26860iLXH4#199805

main77251-26870iKCH4#199805-199907

main77251-26880iKCH4#199907

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main77259-26061iKCH4#199704

main77259-26070iLXH4#199706

main95333-06020iRCH4#199704-199708

sub95337-06020

main95333-06020iRCH4#199708

sub95337-06020

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95332-10018iKCH4#199704

sub95338-10018

main95333-06020iRCH4#199704

sub95337-06020

main95333-08020iLXH4#199706

sub95337-08020

77255DTUBE, FUEL RETURN

main77255-26480iLXH4#199706-199805

main77255-26490iKCH4#199704-199805

main77255-26500iRCH42199706-199805

main77255-26510iRCH41,47199704-199805

main77255-26540iRCH42199805

main77255-26550iRCH41,47199805

main77255-26560iLXH4#199805

main77255-26570iKCH4#199805-199907

main77255-26580iKCH4#199907

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-06020iKCH4#,LXH4#199704

sub95337-06020

main95333-06040iRCH4#199704

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-26050iKCH4#,LXH4#,RCH4#199704

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main23273-54040iLXH4#199706

main23273-67020iKCH4#199704-199907

main23273-67090iKCH4#199907

main23273-75020iRCH42199706

main23273-75070iRCH41,47199704

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-26030iKCH4#,LXH4#,RCH4#199704

77285CCLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)

main77285-26040iKCH4#,LXH4#,RCH4#199704

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-26020iKCH4#,LXH4#,RCH4#199704

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-26010iKCH4#,LXH4#,RCH4#199704

77295DGROMMET, FUEL TUBE

main77295-27010iKCH4#,LXH4#199704

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-26020iKCH4#,LXH4#,RCH4#199704

77310ACAP ASSY, FUEL TANK

main77310-12150iKCH4#,LXH4#199803

main77310-35070iRCH4#199704-199803

sub77310-48010

main77310-35110iKCH4#,LXH4#199704-199803

sub77310-12150

main77310-48010iRCH4#199803

77316GASKET, FUEL TANK CAP

main77316-16010iKCH4#,LXH4#,RCH4#199704

77350LID ASSY, FUEL FILLER OPENING

main77350-26020iKCH4#,LXH4#,RCH4#199704

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-95J01iKCH4#,LXH4#,RCH4#199704

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iKCH4#,LXH4#,RCH4#199704

77451PROTECTOR, FUEL INLET HOSE

main77451-26030iKCH4#,LXH4#,RCH4#199704

77511ABRACKET, FUEL TANK

main77511-26030iKCH4#,LXH4#,RCH4#199704

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26090iKCH4#,LXH4#,RCH4#199704

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-26060iKCH4#,LXH4#,RCH4#199704

77641APROTECTOR, FUEL TANK, NO.1

main77641-26030iKCH4#,LXH4#,RCH4#199704

77651ACUSHION, FUEL TANK, NO.1

main77651-26070iKCH4#,LXH4#,RCH4#199704

77652ACUSHION, FUEL TANK, NO.2

main77653-26040iKCH4#,LXH4#,RCH4#199704

77653ACUSHION, FUEL TANK, NO.3

main77653-26040iKCH4#,LXH4#,RCH4#199704

77681SEAT, FUEL TANK BAND, RH

main77681-32060iKCH4#,LXH4#,RCH4#199704

77682SEAT, FUEL TANK BAND, LH

main77681-32060iKCH4#,LXH4#,RCH4#199704

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10082iKCH4#,LXH4#199704

4646726050CLAMP, CABLE

main46467-26050

9011906384

main90119-06384

9011908300

main90119-08300

9011910477

main90119-10477

9015950219

main90159-50219

9017606019

main90176-06019

9017905042

main90179-05042

9017906216

main90179-06216

9017908186

main90179-08186

9018210005

main90182-10005

9026903002

main90269-03002

9046022002

main90460-22002

9046046003

main90460-46003

9046110186

main90461-10186

9046112337

main90461-12337

9046400773

main90464-00773

9046711098

main90467-11098

9046905004

main90469-05004

9046912002

main90469-12002

9048013026

main90480-13026

9165140820

main91651-40820

91651B0820

main91651-B0820

93319A4010

main93319-A4010

9613241100

main96132-41100

9613241500

main96132-41500

71 parts on this diagram · 3 diagrams in section
