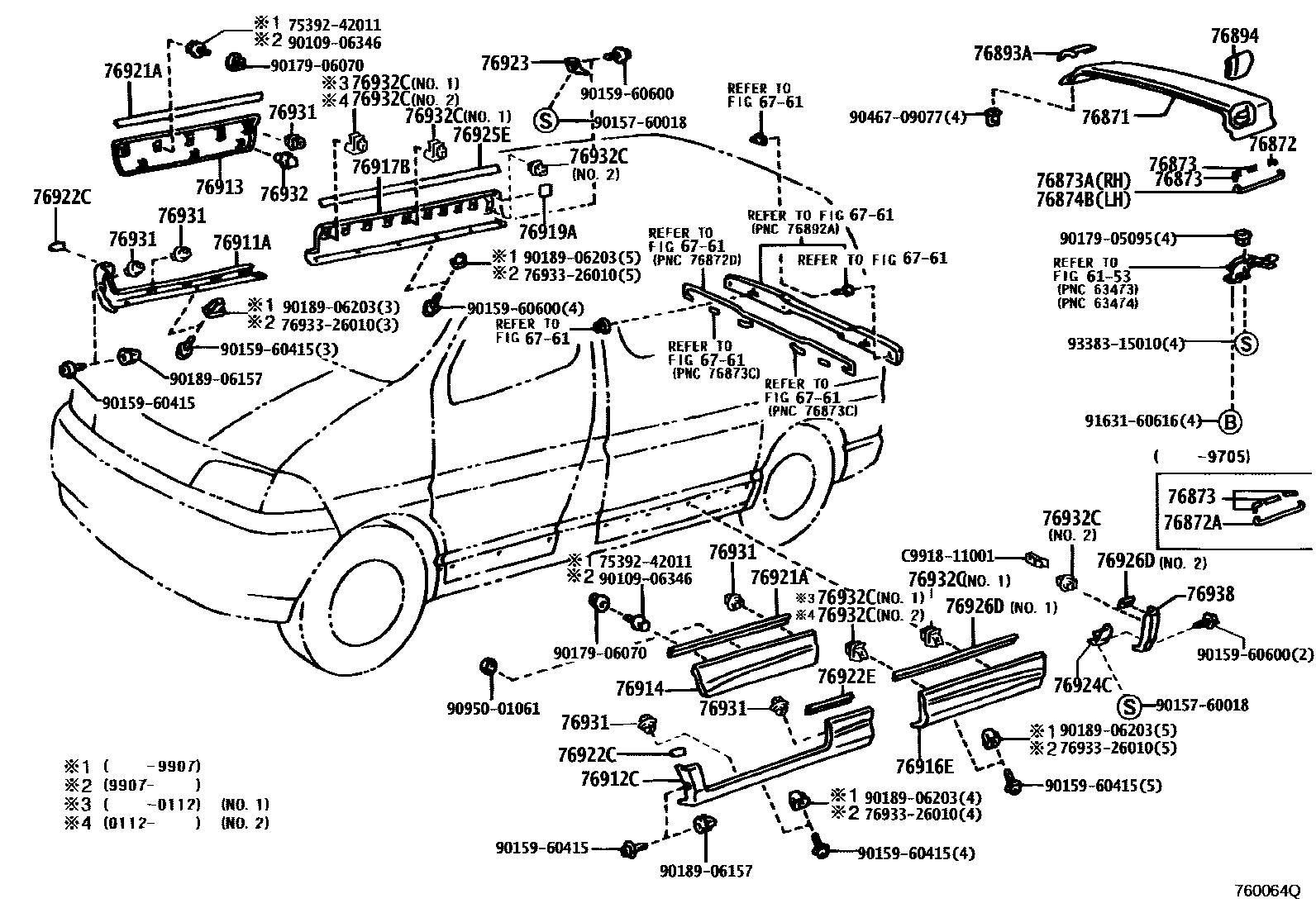

SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1

6153

6761

76871SPOILER, REAR

main76871-26901iKCH4#,RCH41,47..WINT199804-199907

main76871-26901iRCH41,47..STD199804-199908

main76871-26901iKCH4#,RCH41,47..G,STD,V199704

main76871-26902iKCH4#,RCH41,47..WINT199704-199907

main76871-26904iKCH4#,RCH41,47..WISTD199907

76872PROTECTOR, REAR SPOILER, NO.1

main76872-26030iKCH4#,RCH41,47..WISTD199907

main76872-26060iKCH4#,RCH41,47..WINT199704-199907

76872APROTECTOR, REAR SPOILER, NO.1

main76872-26050iKCH4#,RCH4#..WINT199704-199705

sub76873-26070

sub76874-26040

76873PROTECTOR, REAR SPOILER, NO.2

main76873-26030iKCH4#,RCH41,47..WINT199804-199907

main76873-26030iRCH41,47..STD199804-199908

main76873-26030iKCH4#,RCH41,47..G,STD,V199704

main76873-26060iKCH4#,RCH41,47..WINT199704-199907

sub76874-26030

76873APROTECTOR, REAR SPOILER, RH

main76873-26070iKCH4#,RCH41,47..WINT199705-199907

76874PROTECTOR, REAR SPOILER, NO.3

main76874-26030iKCH4#,RCH41,47..G,STD,V199704

main76874-26030iRCH41,47..STD199804-199908

main76874-26030iKCH4#,RCH41,47..WINT199804-199907

76874BPROTECTOR, REAR SPOILER, LH

main76874-26040iKCH4#,RCH41,47..WINT199705-199907

76893COVER, REAR SPOILER, NO.1

main76893-26020iKCH4#,RCH41,47..WINT199804-199907

main76893-26020iRCH41,47..STD199804-199908

main76893-26020iKCH4#,RCH41,47..G,STD,V,WISTD199704

76893ACOVER, REAR SPOILER, RH

main76893-26030iKCH4#,RCH41,47..WINT199704-199907

76894COVER, REAR SPOILER, LH

main76894-26010iKCH4#,RCH41,47..WINT199704-199907

76911AMUDGUARD, FENDER PANEL, RH

main76911-26010-A0iKCH4#,RCH41,47..WINT199709

main76911-26010-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main76911-26010-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main76911-26010-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main76911-26030-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main76911-26030-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

main76911-26030-B2iKCH4#,RCH41,47..WISTD200008-200204

main76911-26030-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

76912CMUDGUARD, FENDER PANEL, LH

main76912-26010-A0iKCH4#,RCH41,47..WINT199709

main76912-26010-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main76912-26010-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main76912-26010-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main76912-26030-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main76912-26030-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

main76912-26030-B2iKCH4#,RCH41,47..WISTD200008-200204

main76912-26030-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

76913MUDGUARD, FRONT DOOR, RH

main76913-26010-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main76913-26010-A0iKCH4#,RCH41,47..WINT199709

main76913-26010-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main76913-26010-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main76913-26030-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main76913-26030-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

main76913-26030-B2iKCH4#,RCH41,47..WISTD200008-200204

main76913-26030-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

76914MUDGUARD, FRONT DOOR, LH

main76914-26010-A0iKCH4#,RCH41,47..WINT199709

main76914-26010-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main76914-26010-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main76914-26010-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main76914-26030-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main76914-26030-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

main76914-26030-B2iKCH4#,RCH41,47..WISTD200008-200204

main76914-26030-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

76916EMUDGUARD, SLIDE DOOR, LH

main76916-26010-A0iKCH4#,RCH41,47..WINT199709

main76916-26010-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main76916-26010-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main76916-26010-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main76916-26030-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main76916-26030-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

main76916-26030-B2iKCH4#,RCH41,47..WISTD200008-200204

main76916-26030-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

76917BMUDGUARD, QUARTER PANEL, RH

main76917-26010-A0iKCH4#,RCH41,47..WINT199709

main76917-26010-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main76917-26010-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main76917-26010-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main76917-26030-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main76917-26030-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

main76917-26030-B2iKCH4#,RCH41,47..WISTD200008-200204

main76917-26030-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

76919APAD, SIDE MUDGUARD

main76919-26020iKCH4#,RCH41,47..WISTD199907

76921APROTECTOR, SIDE MUDGUARD, NO.1

main76921-26010-B1iRCH47..WINT199709-199711

GRAY,040

main76921-26010-B1iKCH4#,RCH41,47..WINT199704-199907

GRAY,1A0

main76921-26010-B1iKCH4#,RCH41,47..WINT199709

main76921-26010-C0iKCH4#,RCH41,47..WINT199704-199907

BLACK,936

main76921-26030-A0iKCH4#,RCH41,47..WISTD200008-200204

sub76926-26050

sub76921-26030

main76921-26030-A0iKCH4#,RCH41,47..WISTD200001-200205

GRAY,056 ,199

sub76926-26050

sub76921-26030

main76921-26030-A1iKCH4#,RCH41,47..WISTD200001-200205

BLACK,209

sub76926-26050

sub76921-26030

main76921-26030-B0iKCH4#,RCH41,47..WISTD199907-200001

DK. GRAY,056 ,199

sub76926-26050

sub76921-26030

main76921-26030-C0iKCH4#,RCH41,47..WISTD199907-200001

BLACK,209

sub76926-26050

sub76921-26030

76922CPROTECTOR, SIDE MUDGUARD, NO.2

main76922-26010-B1iRCH47..WINT199709-199711

GRAY,040

main76922-26010-B1iKCH4#,RCH41,47..WINT199704-199907

GRAY,1A0

main76922-26010-B1iKCH4#,RCH41,47..WINT199709

main76922-26010-C0iKCH4#,RCH41,47..WINT199704-199907

BLACK,936

main76922-26070-A0iKCH4#,RCH41,47..WISTD200008-200204

sub76922-26070

main76922-26070-A0iKCH4#,RCH41,47..WISTD200001-200205

GRAY,056 ,199

sub76922-26070

main76922-26070-A1iKCH4#,RCH41,47..WISTD200001-200205

BLACK,209

sub76922-26070

main76922-26070-B0iKCH4#,RCH41,47..WISTD199907-200001

DK. GRAY,056 ,199

sub76922-26070

main76922-26070-C0iKCH4#,RCH41,47..WISTD199907-200001

BLACK,209

sub76922-26070

76922EPROTECTOR, SIDE MUDGUARD, NO.2

main76922-26040-B1iRCH47..WINT199709-199711

GRAY,040

main76922-26040-B1iKCH4#,RCH41,47..WINT199709

main76922-26040-B1iKCH4#,RCH41,47..WINT199704-199907

GRAY,1A0

main76922-26040-C0iKCH4#,RCH41,47..WINT199704-199907

BLACK,936

main76922-26080-A0iKCH4#,RCH41,47..WISTD200001-200205

GRAY,056 ,199

sub76922-26080

main76922-26080-A0iKCH4#,RCH41,47..WISTD200008-200204

sub76922-26080

main76922-26080-A1iKCH4#,RCH41,47..WISTD200001-200205

BLACK,209

sub76922-26080

main76922-26080-B0iKCH4#,RCH41,47..WISTD199907-200001

DK. GRAY,056 ,199

sub76922-26080

main76922-26080-C0iKCH4#,RCH41,47..WISTD199907-200001

BLACK,209

sub76922-26080

76923RETAINER, SIDE MUDGUARD

main76923-26010iKCH4#,RCH41,47..WINT,WISTD199704

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-26010iKCH4#,RCH41,47..WINT,WISTD199704

76925EPROTECTOR, SIDE MUDGUARD, FRONT RH

main76925-26020-B1iRCH47..WINT199709-199711

GRAY,040

main76925-26020-B1iKCH4#,RCH41,47..WINT199704-199907

GRAY,1A0

main76925-26020-B1iKCH4#,RCH41,47..WINT199709

main76925-26020-C0iKCH4#,RCH41,47..WINT199704-199907

BLACK,936

main76925-26040-A0iKCH4#,RCH41,47..WISTD200008-200204

sub76925-26040

main76925-26040-A0iKCH4#,RCH41,47..WISTD200001-200205

GRAY,056 ,199

sub76925-26040

main76925-26040-A1iKCH4#,RCH41,47..WISTD200001-200205

BLACK,209

sub76925-26040

main76925-26040-B0iKCH4#,RCH41,47..WISTD199907-200001

DK. GRAY,056 ,199

sub76925-26040

main76925-26040-C0iKCH4#,RCH41,47..WISTD199907-200001

BLACK,209

sub76925-26040

76926DPROTECTOR, SIDE MUDGUARD, LH

main76926-26010-B1iRCH47..WINT199709-199711

main76926-26010-B1iKCH4#,RCH41,47..WINT199709

main76926-26010-B1iKCH4#,RCH41,47..WINT199704-199907

main76926-26010-C0iKCH4#,RCH41,47..WINT199704-199907

main76926-26020-B1iKCH4#,RCH41,47..WINT199709

main76926-26020-B1iRCH47..WINT199709-199711

main76926-26020-B1iKCH4#,RCH41,47..WINT199704-199907

main76926-26020-C0iKCH4#,RCH41,47..WINT199704-199907

main76926-26050-A0iKCH4#,RCH41,47..WISTD200001-200205

sub76926-26050

main76926-26050-A0iKCH4#,RCH41,47..WISTD200008-200204

sub76926-26050

main76926-26050-A1iKCH4#,RCH41,47..WISTD200001-200205

sub76926-26050

main76926-26050-B0iKCH4#,RCH41,47..WISTD199907-200001

sub76926-26050

main76926-26050-C0iKCH4#,RCH41,47..WISTD199907-200001

sub76926-26050

main76926-26060-A0iKCH4#,RCH41,47..WISTD200008-200204

sub76926-26060

main76926-26060-A0iKCH4#,RCH41,47..WISTD200001-200205

sub76926-26060

main76926-26060-A1iKCH4#,RCH41,47..WISTD200001-200205

sub76926-26060

main76926-26060-B0iKCH4#,RCH41,47..WISTD199907-200001

sub76926-26060

main76926-26060-C0iKCH4#,RCH41,47..WISTD199907-200001

sub76926-26060

76931RETAINER, SIDE MUDGUARD, NO.3

main76931-26010iKCH4#,RCH4#..WINT199704-200112

76932RETAINER, SIDE MUDGUARD, NO.4

main76932-26010iKCH4#,RCH41,47..WISTD199907

76932CRETAINER, FENDER PANEL MUDGUARD

main76931-26010iKCH4#,RCH4#..WINT199704-200109

NO.1 OR NO.2

main76931-26010iKCH4#,RCH41,47..WISTD200109-200112

NO.2

main76934-26020iKCH4#,RCH41,47..WISTD200109-200112

NO.1

76938MUDGUARD, QUARTER PANEL, REAR LH

main76938-26010-A0iRCH47..WINT199709-199711

SUPER WHITE 2,040

main76938-26010-A0iKCH4#,RCH41,47..WINT199709

main76938-26010-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

main76938-26010-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

main76938-26030-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

main76938-26030-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

main76938-26030-B2iKCH4#,RCH41,47..WISTD200008-200204

main76938-26030-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

7539242011RETAINER, OUTSIDE MOULDING

main75392-42011

7693326010RETAINER, SIDE MUDGUARD, NO.5

main76933-26010

9010906346

main90109-06346

9015760018

main90157-60018

9015960415

main90159-60415

9015960600

main90159-60600

9017905095

main90179-05095

9017906070

main90179-06070

9018906157

main90189-06157

9018906203

main90189-06203

9046709077

main90467-09077

9095001061

main90950-01061

9163160616

main91631-60616

9338315010

main93383-15010

C991811001

mainC9918-11001

45 parts on this diagram · 3 diagrams in section
