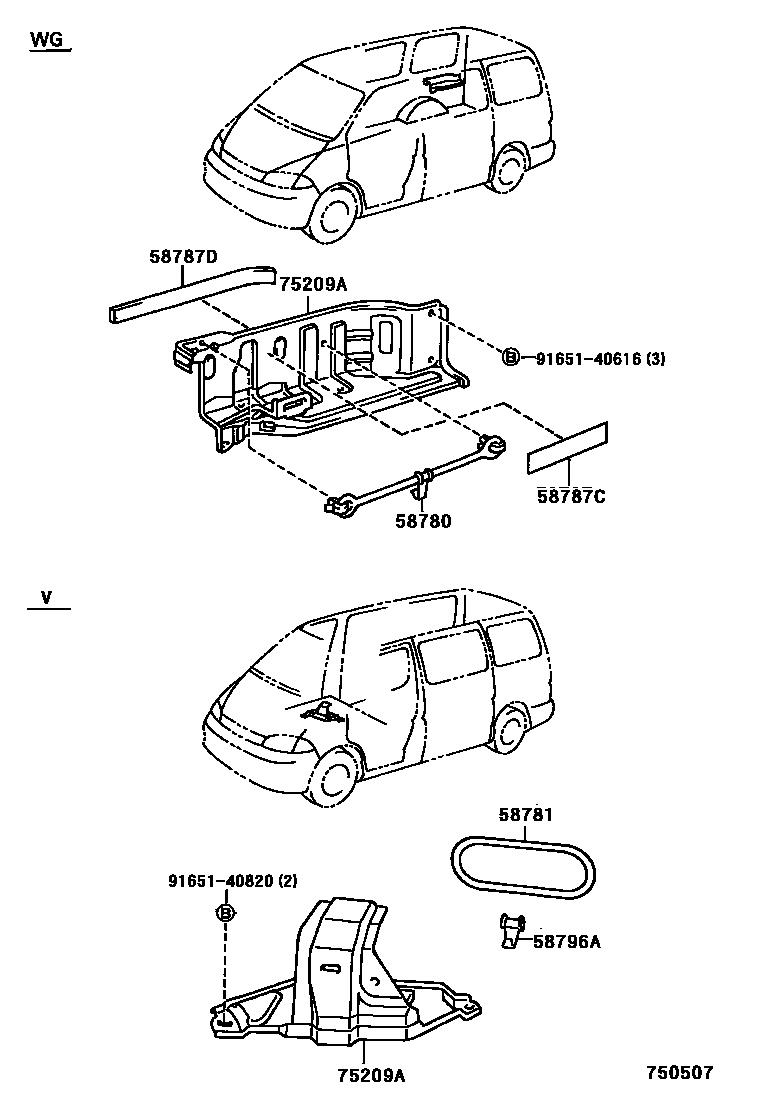

TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-26010iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

58781BAND, TOOL BAG

main58781-95D00iKCH4#..E;LXH4#,RCH42199704

58787CPACKING, JACK BOX HOLE COVER

main58787-26020iKCH4#,RCH41,47..5D199804

58787DPACKING, JACK BOX HOLE COVER

main58787-26030iKCH4#,RCH41,47..5D199804

58796AHOOK, JACK CLAMP

main58796-20012iKCH4#..E;LXH4#,RCH42199704

75209ABASE SUB ASSY, JACK HOLDER

main75209-26020iKCH4#..E;LXH4#,RCH42199704

main75209-26030iKCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)199704

main75209-26050iKCH4#,RCH41,47..5D199804

9165140616

main91651-40616

9165140820

main91651-40820

8 parts on this diagram · 1 diagram in section
