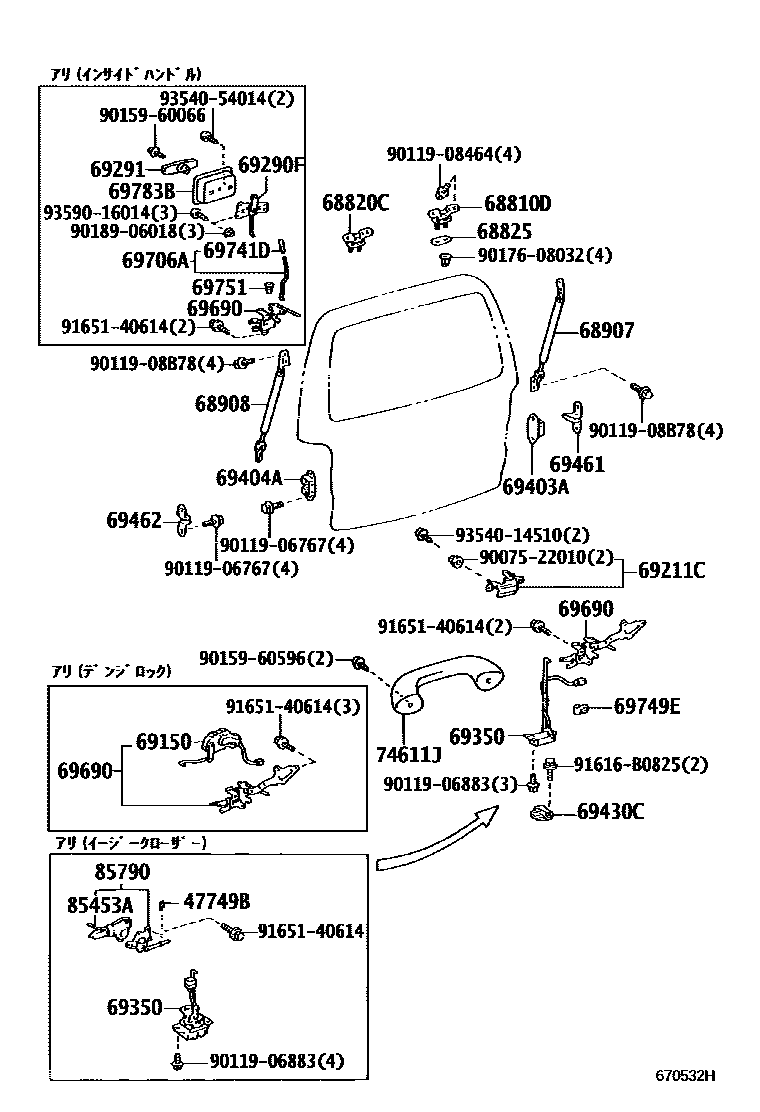

BACK DOOR LOCK & HINGE

47749BCLIP, PIN HOLD

main47749-26010iKCH4#,RCH41..G,STD199704-199804

68810DHINGE ASSY, BACK DOOR, RH

main68810-26010iKCH4#,LXH4#,RCH4#199704

sub68810-26011

68820CHINGE ASSY, BACK DOOR, LH

main68820-26010iKCH4#,LXH4#,RCH4#199704

sub68820-26011

68825PLATE, BACK DOOR HINGE

main68825-95700iKCH4#,LXH4#,RCH4#199704

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-26400iKCH4#,RCH41,47199704-199808

sub68907-26620

main68907-26400iKCH4#,RCH41,47..WINT199804-199907

sub68907-26620

main68907-26410iRCH47..STD;KCH4#,RCH41..G08S,W08S199704-199808

sub68907-26630

main68907-26410iKCH4#,RCH41,47..WINT199804-199907

sub68907-26630

main68907-26420iKCH4#,RCH41,47..G,STD,WINT199704-199808

sub68907-26640

main68907-26430iKCH4#,RCH41,47..G,STD199704-199808

sub68907-26650

main68907-26440iLXH4#,RCH42199706-199808

sub68907-26660

main68907-26620iKCH4#,RCH41,47199808

main68907-26630iKCH4#,RCH41,47..E,STD,V,WINT199808

main68907-26640iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199808

sub68907-26650

main68907-26650iKCH4#,RCH41,47..G,STD199808

main68907-26650iKCH4#,RCH41,47..V199907

main68907-26660iLXH4#,RCH42199808

sub68907-26630

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-26400iRCH41..5D;RCH47..W07S199804-199808

sub68908-26620

main68908-26400iKCH4#,RCH41,47..WINT199804-199907

sub68908-26620

main68908-26400iRCH47..W08S;KCH4#,RCH41..4D199704-199808

sub68908-26620

main68908-26410iKCH4#,RCH41,47..WINT199804-199907

sub68908-26630

main68908-26410iRCH47..STD;KCH4#,RCH41..G08S,W08S199704-199808

sub68908-26630

main68908-26420iKCH4#,RCH41,47..G,STD,WINT199704-199808

sub68908-26640

main68908-26430iKCH4#,RCH41,47..G,STD199704-199808

sub68908-26650

main68908-26440iLXH4#,RCH42199706-199808

sub68908-26660

main68908-26620iKCH4#,RCH41,47199808

main68908-26630iKCH4#,RCH41,47..E,STD,V,WINT199808

main68908-26640iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199808

sub68908-26650

main68908-26650iKCH4#,RCH41,47..G,STD,V199808

main68908-26660iLXH4#,RCH42199808

sub68908-26630

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-26030iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199804-199907

main69150-26030iKCH4#,RCH41..G199704-199804

main69150-26040iKCH4#,LXH4#,RCH4#199704-199907

69211CHANDLE, BACK DOOR OUTSIDE

main69023-26020iKCH4#,LXH4#,RCH4#199704

69290FHANDLE ASSY, BACK DOOR INSIDE

main69290-26020iLXH4#,RCH42199706

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-B1iLXH4#,RCH42199706-199907

LT.BLUISH GRAY,TRIM1#

sub69291-95J00

main69291-95J00-B3iLXH4#,RCH42..STD199907

SHADOW GRAY,TRIM1#

sub69291-95J00

main69291-95J00-B4iLXH4#..G199907

BLUE GRAY,TRIM1#

sub69291-95J00

69350LOCK ASSY, BACK DOOR

main69350-26050iKCH4#,LXH4#,RCH4#199704

main69350-26060iKCH4#,RCH41..G,STD199704-199804

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-26040iKCH4#,LXH4#,RCH4#199704

sub69403-26041

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-26040iKCH4#,LXH4#,RCH4#199704

sub69403-26041

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-26010iKCH4#,RCH41..G,STD199704-199804

main69430-95J00iKCH4#,LXH4#,RCH4#199704

69461STOPPER, BACK DOOR SIDE MALE, RH

main69401-26020iKCH4#,LXH4#,RCH4#199704

sub69401-26021

69462STOPPER, BACK DOOR SIDE MALE, LH

main69401-26020iKCH4#,LXH4#,RCH4#199704

sub69401-26021

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-26070iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199804-199907

main69690-26070iKCH4#,RCH41..G199704-199804

main69690-26080iKCH4#,RCH41,47..G08S,W08S199704-199907

main69690-26090iLXH4#,RCH42..STD199706

main69690-26100iLXH4#,RCH42199706

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-26030iLXH4#,RCH42199706

69741DKNOB, DOOR LOCK CONTROL(FOR BACK DOOR)

main69741-28010-C1iLXH4#,RCH42199706

BLACK,TRIM1#

sub69741-28010

69749ECLAMP, BACK DOOR LOCK LINK

main69749-30020iKCH4#,LXH4#,RCH4#199704

69751HOLDER, DOOR LOCK CONTROL KNOB

main69751-95J00-C0iLXH4#,RCH42199706

BLACK,TRIM1#

sub69751-95J00

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69783-95J00-B1iLXH4#,RCH42199706-199907

LT.BLUISH GRAY,TRIM1#

sub69783-95J00

main69783-95J00-B2iLXH4#,RCH42..STD199907

SHADOW GRAY,TRIM1#

sub69783-95J00

main69783-95J00-B3iLXH4#..G199907

BLUE GRAY,TRIM1#

sub69783-95J00

74611JGRIP, ASSIST

main74611-20030-B2iKCH4#,RCH41,47..WISTD199907

LT.BLUISH GRAY,TRIM1#

sub74611-20030

sub74610-12090

main74611-20030-E3iKCH4#,RCH41,47..G,V199907

ORCHID,TRIM4#

sub74611-20030

sub74610-12090

85453AMOTOR, DOOR CONTROL

main85453-26011iKCH4#,RCH41..G,STD199704-199711

main85453-26020iKCH4#,RCH41..G,STD199711-199804

85790MOTOR ASSY, BACK DOOR CLOSER

main85790-26010iKCH4#,RCH41..G,STD199704-199711

main85790-26020iKCH4#,RCH41..G,STD199711-199804

9007522010

main90075-22010

9011906767

main90119-06767

9011906883

main90119-06883

9011908464

main90119-08464

9011908B78

main90119-08B78

9015960066

main90159-60066

9015960596

main90159-60596

9017608032

main90176-08032

9018906018

main90189-06018

91616B0825

main91616-B0825

9165140614

main91651-40614

9354014510

main93540-14510

9354054014

main93540-54014

9359016014

main93590-16014

39 parts on this diagram · 1 diagram in section
