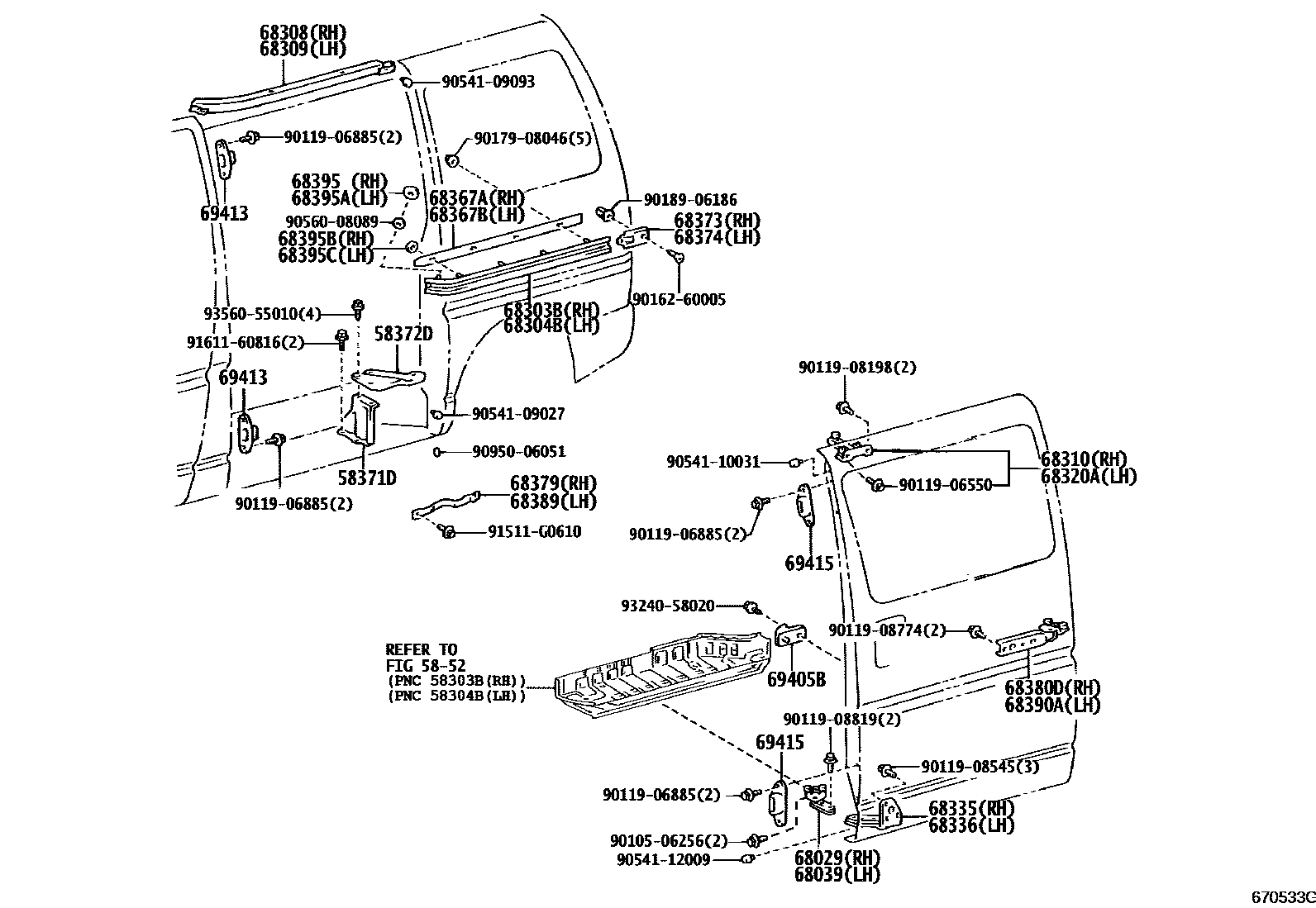

SLIDE ROLLER & RAIL

0001 1 0002 1�-������ ��� 0003 1�-������ ���

58371DCOVER, REAR FLOOR STEP, NO.1

main58371-26020iRCH47..STD;KCH4#,RCH41..G,STD,WINT¥2,150199704-199804

58372DCOVER, REAR FLOOR STEP, NO.2

main58372-26010iKCH4#,RCH41,47..G,STD,V,WINT,WISTD¥2,110199704-199804

5852

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-26030iLXH4#,RCH42..5D¥3,160199706

sub68029-26080¥3,160

main68029-26060iKCH4#,RCH41,47..5D¥3,440199804

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-26010iLXH4#,RCH42¥3,160199706

sub68039-26070¥3,160

main68039-26020iKCH4#,RCH41,47¥3,160199704

main68039-26040iRCH47..STD;KCH4#,RCH41..G,STD,WINT¥3,150199704-199804

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-26020iLXH4#,RCH42..5D¥14,800199706

main68303-26060-A0iRCH41,47..5D199804-199907

WHITE PM,2EB

sub68303-26060¥20,900

main68303-26060-A1iKCH4#,RCH41,47..W07S199907

WHITE PM.,2FZ

sub68303-26060¥20,900

main68303-26060-B0iKCH4#,RCH41,47..W07S199907

SILVER ME.,2FY

sub68303-26060¥20,900

main68303-26060-B0iKCH4#,RCH41,47..V199912-200204

sub68303-26060¥20,900

main68303-26060-C0iRCH41,47..5D199804-199907

BLACK ME,2EV

sub68303-26060¥20,900

main68303-26060-C1iKCH4#,RCH41,47..W07S199907

BLACK MC.,2GA

sub68303-26060¥20,900

main68303-26060-G0iRCH41,47..5D199804-199907

LT GREEN M,2DJ

sub68303-26060¥20,900

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-26040iLXH4#;KCH4#,RCH4#..E,STD¥14,800199704

main68304-26050-A0iKCH4#,RCH41,47..G,STD199704-199907

WHITE PM,2EB

sub68304-26050¥20,900

main68304-26050-A0iKCH4#,RCH41,47..V200004-200011

sub68304-26050¥20,900

main68304-26050-A1iKCH4#,RCH41,47..WINT199709

sub68304-26050¥20,900

main68304-26050-A1iKCH4#,RCH41,47..WINT199804-199907

sub68304-26050¥20,900

main68304-26050-A1iKCH4#,RCH41,47..STD199712

sub68304-26050¥20,900

main68304-26050-A1iRCH41,47..STD199804-199908

sub68304-26050¥20,900

main68304-26050-A1iRCH47..WINT199709-199711

WHITE,040

sub68304-26050¥20,900

main68304-26050-A2iKCH4#,RCH41,47..V,WISTD199907

WHITE,056

sub68304-26050¥20,900

main68304-26050-A3iKCH4#,RCH41,47..G,V199907

WHITE PM.,2FZ

sub68304-26050¥20,900

main68304-26050-B0iKCH4#,RCH41,47..STD,WINT199704-199907

BLUISH SILVER ME.,1A0

sub68304-26050¥20,900

main68304-26050-B0iRCH41,47..STD199804-199908

sub68304-26050¥20,900

main68304-26050-B1iKCH4#,RCH41,47..V,WISTD199907

SILVER ME,199

sub68304-26050¥20,900

main68304-26050-B1iKCH4#,RCH41,47..WINT199804-199907

sub68304-26050¥20,900

main68304-26050-B2iKCH4#,RCH41,47..WISTD200008-200204

sub68304-26050¥20,900

main68304-26050-B2iKCH4#,RCH41,47..V199912-200204

sub68304-26050¥20,900

main68304-26050-B2iKCH4#,RCH41,47..G,V199907

SILVER ME.,2FY

sub68304-26050¥20,900

main68304-26050-C0iKCH4#,RCH41,47..G,STD199804-199907

sub68304-26050¥20,900

main68304-26050-C0iRCH41..STD199712-199804

BLACK,205

sub68304-26050¥20,900

main68304-26050-C0iKCH4#,RCH41,47..G,STD199804-199907

BLACK ME,2EV

sub68304-26050¥20,900

main68304-26050-C0iRCH41,47..STD199804-199908

sub68304-26050¥20,900

main68304-26050-C1iKCH4#,RCH41,47..G,V199907

BLACK MC.,209

sub68304-26050¥20,900

main68304-26050-C1iKCH4#,RCH41,47..G,V199907

BLACK MC.,2GA

sub68304-26050¥20,900

main68304-26050-G1iKCH4#,RCH41,47..STD199804-199907

LT GREEN M,2DJ ,6L5

sub68304-26050¥20,900

main68304-26050-G1iKCH4#,RCH41,47..STD199704-199804

LT GREEN M,6L5

sub68304-26050¥20,900

main68304-26050-G1iKCH4#,RCH41,47..G199704-199907

LT GREEN M,2DJ

sub68304-26050¥20,900

main68304-26050-G2iKCH4#,RCH41,47..G,STD199704-199804

DK.GREEN M.M.,2DK

sub68304-26050¥20,900

main68304-26050-J0iKCH4#,RCH41,47..STD199704-199907

BLUE M.M.,2DM

sub68304-26050¥20,900

main68304-26050-J1iKCH4#,RCH41,47..V199907

DK.BLUE MC.,2GB

sub68304-26050¥20,900

main68304-26050-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

sub68304-26050¥20,900

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-26020iKCH4#,LXH4#,RCH4#..5D¥3,330199706

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-26020iKCH4#,LXH4#,RCH4#¥3,330199704

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-26020iKCH4#,LXH4#,RCH4#..5D¥3,950199706

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-26010iKCH4#,LXH4#,RCH4#¥3,950199704

68335PAD, SLIDE DOOR UPPER RAIL

main68335-26020iKCH4#,LXH4#,RCH4#..5D¥4,890199706

68336ARM, SLIDE DOOR LOWER ROLLER, LH

main68336-26030iKCH4#,LXH4#,RCH4#¥4,890199704

68367APAD, SLIDE DOOR CENTER RAIL

main68367-26020iKCH4#,LXH4#,RCH4#..5D¥550199706

68367BPAD, SLIDE DOOR CENTER RAIL

main68367-26020iKCH4#,LXH4#,RCH4#¥550199704

68373MOULDING, SLIDE RAIL END, RH

main68373-26020iLXH4#,RCH42..5D¥980199706

main68373-26050-A0iRCH41,47..5D199804-199907

WHITE PM,2EB

sub68373-26050¥980

main68373-26050-A1iKCH4#,RCH41,47..W07S199907

WHITE PM.,2FZ

sub68373-26050¥980

main68373-26050-B0iKCH4#,RCH41,47..W07S199907

SILVER ME.,2FY

sub68373-26050¥980

main68373-26050-B0iKCH4#,RCH41,47..V199912-200204

sub68373-26050¥980

main68373-26050-C0iRCH41,47..5D199804-199907

BLACK ME,2EV

sub68373-26050¥980

main68373-26050-C1iKCH4#,RCH41,47..W07S199907

BLACK MC.,2GA

sub68373-26050¥980

main68373-26050-G0iRCH41,47..5D199804-199907

LT GREEN M,2DJ

sub68373-26050¥980

68374MOULDING, SLIDE RAIL END, LH

main68374-26040iLXH4#;KCH4#,RCH4#..E,STD¥980199704

main68374-26050-A0iKCH4#,RCH41,47..G,STD199704-199907

WHITE PM,2EB

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-A0iKCH4#,RCH41,47..V200004-200011

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-A1iKCH4#,RCH41,47..WINT199709

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-A1iRCH47..WINT199709-199711

WHITE,040

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-A1iRCH41,47..STD199804-199908

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-A1iKCH4#,RCH41,47..WINT199804-199907

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-A1iKCH4#,RCH41,47..STD199712

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-A2iKCH4#,RCH41,47..V,WISTD199907

WHITE,056

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-A3iKCH4#,RCH41,47..G,V199907

WHITE PM.,2FZ

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-B0iKCH4#,RCH41,47..STD,WINT199704-199907

BLUISH SILVER ME.,1A0

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-B1iKCH4#,RCH41,47..WINT199804-199907

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-B1iKCH4#,RCH41,47..V,WISTD199907

SILVER ME,199

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-B1iRCH41,47..STD199804-199908

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-B2iKCH4#,RCH41,47..G,V199907

SILVER ME.,2FY

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-B2iKCH4#,RCH41,47..V199912-200204

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-B2iKCH4#,RCH41,47..WISTD200008-200204

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-C0iKCH4#,RCH41,47..WINT199804-199907

BLACK ME,2EV

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-C0iRCH41,47..STD199804-199908

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-C0iKCH4#,RCH41,47..WINT199804-199907

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-C0iRCH41..STD199712-199804

BLACK,205

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-C1iKCH4#,RCH41,47..WISTD199907

BLACK MC.,2GA

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-C1iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-G1iKCH4#,RCH41,47..STD199704-199804

LT GREEN M,6L5

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-G1iKCH4#,RCH41,47..STD199804-199907

LT GREEN M,2DJ ,6L5

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-G1iKCH4#,RCH41,47..G199704-199907

LT GREEN M,2DJ

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-G2iKCH4#,RCH41,47..G,STD199704-199804

DK.GREEN M.M.,2DK

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-J0iKCH4#,RCH41,47..STD199704-199907

BLUE M.M.,2DM

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-J1iKCH4#,RCH41,47..V199907

DK.BLUE MC.,2GB

sub68374-26040¥980

sub68374-26050¥980

main68374-26050-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

sub68374-26040¥980

sub68374-26050¥980

68379SPRING, SLIDE DOOR CATCH, RH

main68379-26010iKCH4#,LXH4#,RCH4#..5D¥500199706-200202

sub68379-26011¥500

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-26010iKCH4#,LXH4#,RCH4#..5D¥6,700199706

68389SPRING, SLIDE DOOR CATCH, LH

main68389-26010iKCH4#,LXH4#,RCH4#¥460199704-199907

sub68389-26040¥450

main68389-26040iKCH4#,LXH4#,RCH4#¥450199907-200202

main68389-26050iKCH4#,LXH4#,RCH4#¥450200202

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-26020iKCH4#,LXH4#,RCH4#¥6,700199704

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-26010iKCH4#,LXH4#,RCH4#..5D¥170199706

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-26010iKCH4#,LXH4#,RCH4#¥170199704

68395BPACKING, SLIDE DOOR CENTER RAIL

main68395-95J00iKCH4#,LXH4#,RCH4#..5D¥90199706

68395CPACKING, SLIDE DOOR CENTER RAIL

main68395-95J00iKCH4#,LXH4#,RCH4#¥90199704

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-26010iLXH4#,RCH4#..5D¥3,610199704-199907

main69405-26020iRCH47..STD;KCH4#,RCH41..G,STD,WINT¥3,910199704-199907

main69405-26030-B0iKCH4#,RCH41,47..WISTD199907

LT.BLUISH GRAY,TRIM1#

sub69405-26050¥3,400

sub69405-26030¥3,400

main69405-26030-E0iKCH4#,RCH41,47..W07S199907

sub69405-26050¥3,400

sub69405-26030¥3,400

main69405-26030-E0iKCH4#,RCH41,47..(G,V)..W08S199907

SANDAL WOOD,TRIM4#

sub69405-26050¥3,400

sub69405-26030¥3,400

main69405-26040-B1iKCH4#,RCH41,47..WISTD199907

sub69405-26040¥3,580

main69405-26040-E0iKCH4#,RCH41,47..W07S199907

sub69405-26040¥3,580

main69405-26040-E0iKCH4#,RCH41,47..(G,V)..W08S199907

sub69405-26040¥3,580

main69405-26050iLXH4#,RCH42¥3,400199907

69413STOP, SLIDE DOOR DOWN MALE

main69416-26010iKCH4#,LXH4#,RCH41,47..4D¥1,090199704

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-26010iKCH4#,LXH4#,RCH41,47..4D¥780199704

9010506256

main90105-06256¥60

9011906550

main90119-06550¥120

9011906885

main90119-06885¥60

9011908198

main90119-08198¥160

9011908545

main90119-08545¥140

9011908774

main90119-08774¥160

9011908819

main90119-08819¥160

9016260005

main90162-60005¥100

9017908046

main90179-08046¥160

9018906186

main90189-06186¥120

9054109027

main90541-09027¥240

9054109093

main90541-09093¥170

9054110031

main90541-10031¥170

9054112009

main90541-12009¥230

9056008089

main90560-08089¥120

9095006051

main90950-06051¥130

91511G0610

main91511-G0610¥110

9161160816

main91611-60816¥230

9324058020

main93240-58020¥110

9356055010

main93560-55010¥60
