REAR DOOR LOCK & HANDLE

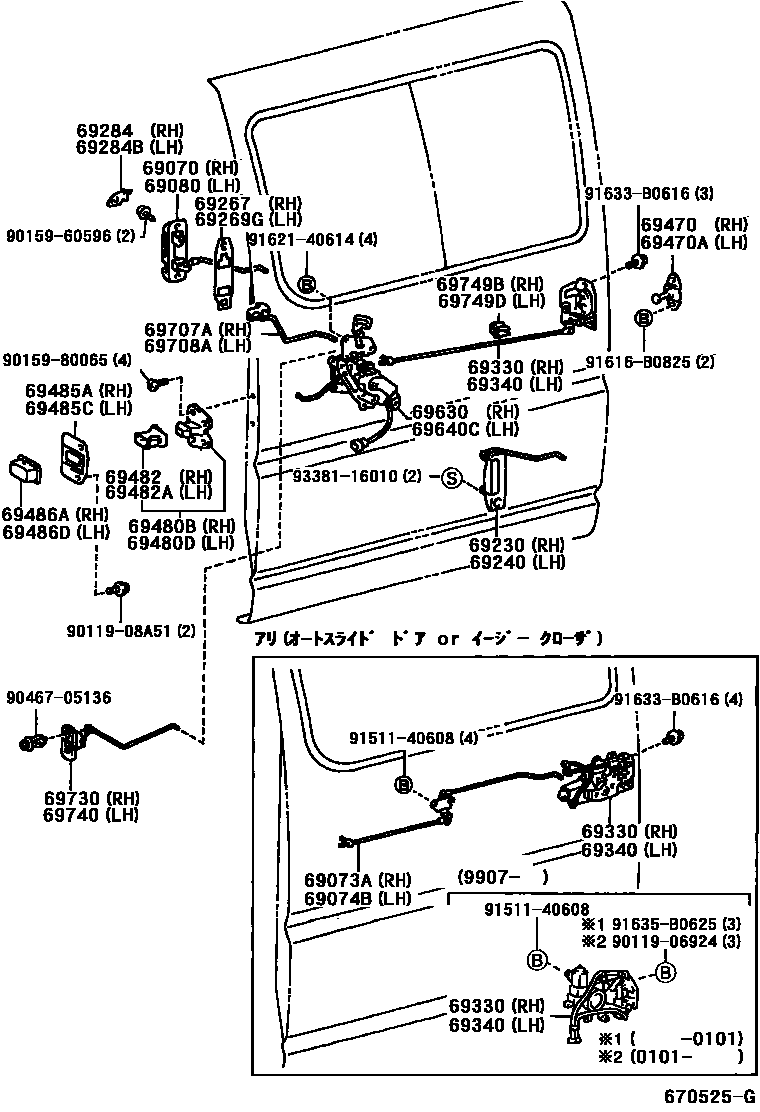

Parts diagram
69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH
main69070-26010-B1i199706-199907
LT.BLUISH GRAY,TRIM1#
sub69070-26010
main69070-26010-B2i199907
SHADOW GRAY,TRIM1#
sub69070-26010
main69070-26020-B2i199907
MD.CHARCOAL,TRIM4#
sub69070-26020
main69070-26020-G0i199804-199907
SAGE,TRIM6#
sub69070-26020
69073ALINK SUB-ASSY, SLIDE DOOR LOCK CONTROL, RH
main69073-26010i199804-199907
main69073-26030i199907
69074BLINK SUB-ASSY, SLIDE DOOR LOCK CONTROL, LH
main69074-26020i199704-199907
main69074-26040i200008-200204
main69074-26040i199907
69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH
main69080-26010-B1i199706-199907
LT.BLUISH GRAY,TRIM1#
sub69080-26010
main69080-26010-B2i199907
SHADOW GRAY,TRIM1#
sub69080-26010
main69080-26020-B0i199804-199907
sub69080-26020
main69080-26020-B1i199704-199907
LT.BLUISH GRAY,TRIM1#
sub69080-26020
main69080-26020-B2i199907
SHADOW GRAY,TRIM1#
sub69080-26020
main69080-26020-B3i199907
BLUE GRAY,TRIM1#
sub69080-26020
main69080-26020-B4i199907
MD.CHARCOAL,TRIM4#
sub69080-26020
main69080-26020-C0i199804-199908
sub69080-26020
main69080-26020-G0i199704-199907
SAGE,TRIM6#
sub69080-26020
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-26010i199706
main69230-26030-A0i199804-199907
WHITE PM,2EB
main69230-26030-A1i199907
WHITE PM.,2FZ
main69230-26030-A2i200008-200204
main69230-26030-B4i200008-200204
main69230-26030-B4i199912-200204
main69230-26030-B4i199907
SILVER ME.,2FY
main69230-26030-C0i199804-199907
BLACK ME,2EV
main69230-26030-C1i199907
BLACK MC.,2GA
main69230-26030-G0i199804-199907
LT GREEN M,2DJ
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-26010i199704-200205
main69240-26020-A0i199704-199907
WHITE PEARL MC.,2EB
main69240-26020-A0i200004-200011
main69240-26020-A1i199804-199907
main69240-26020-A1i199709-199711
WHITE,040
main69240-26020-A1i199804-199908
main69240-26020-A1i199709
main69240-26020-A1i199712
main69240-26020-A2i199907-200205
WHITE,056
main69240-26020-A3i199907-200205
WHITE PM.,2FZ
main69240-26020-B0i199804-199908
main69240-26020-B0i199804-199907
main69240-26020-B0i199907-200205
SILVER ME,199
main69240-26020-B2i199804-199907
BLUISH SILVER ME.,1A0 ,2DM
main69240-26020-B2i199704-199907
BLUISH SILVER ME.,1A0
main69240-26020-B5i199907-200205
SILVER ME.,2FY ,2FZ
main69240-26020-B5i200008-200204
main69240-26020-B5i199912-200204
main69240-26020-C0i199804-199908
main69240-26020-C0i199804-199907
BLACK ME,2EV
main69240-26020-C0i199804-199907
main69240-26020-C1i199907-200205
BLACK MC.,209
main69240-26020-C1i199907-200205
BLACK MC.,2GA
main69240-26020-G2i199704-199907
LT GREEN M,2DJ
main69240-26020-G2i199804-199907
LT GREEN M,2DJ ,6L5
main69240-26020-G3i199704-199804
DK.GREEN M.M.,2DK
main69240-26020-J0i199804-199907
BLUE M.M.,2DM
main69240-26020-J2i199907-200205
DK.BLUE MC.,2GB
main69240-26020-K0i199704-199907
DK.PURPLE MC.,936
69267SEAL, SLIDE DOOR INSIDE HANDLE, NO.1
main69267-26010i199706
69269GSEAL, DOOR INSIDE HANDLE
main69268-95J01i199704
69284PLUG, SLIDE DOOR INSIDE HANDLE
main69284-95J00-B0i199804-199907
sub69284-95J00
main69284-95J00-B1i199706-199907
LT.BLUISH GRAY,TRIM1#
sub69284-95J00
main69284-95J00-B2i199907
MD.CHARCOAL,TRIM4#
sub69284-95J00
main69284-95J00-B3i199907
SHADOW GRAY,TRIM1#
sub69284-95J00
main69284-95J00-G0i199804-199907
SAGE,TRIM6#
sub69284-95J00
69284BPLUG, SLIDE DOOR INSIDE HANDLE, LH
main69284-95J00-B0i199804-199907
sub69284-95J00
main69284-95J00-B1i199704-199907
LT.BLUISH GRAY,TRIM1#
sub69284-95J00
main69284-95J00-B2i199907
MD.CHARCOAL,TRIM4#
sub69284-95J00
main69284-95J00-B3i199907
SHADOW GRAY,TRIM1#
sub69284-95J00
main69284-95J00-B4i199907
BLUE GRAY,TRIM1#
sub69284-95J00
main69284-95J00-G0i199704-199907
SAGE,TRIM6#
sub69284-95J00
69330LOCK ASSY, REAR DOOR, RH
main69200-26010i199804-199907
main69200-26020i199907-200109
sub69200-26021
main69200-26021i200109
sub69200-26022
main69330-26030i199706
69340LOCK ASSY, REAR DOOR, LH
main69300-26040i199907-200109
sub69300-26041
main69300-26040i200008-200204
sub69300-26041
main69300-26041i200109
sub69300-26042
main69300-26050i199907-200109
sub69300-26051
main69300-26051i200109
sub69300-26052
main69300-26070i199704-199907
main69300-26090i199704-199907
main69340-26030i199704
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
main69470-26010i199706-200205
main69470-28090i199907-200205
main69470-95J02i199804-199907
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
main69470-26010i199704-200205
main69470-28090i199907-200205
main69470-95J02i199704-199907
main69470-95J02i200008-200204
69480BHOOK ASSY, SLIDE DOOR FRONT LOCK
main69480-26020i199706
sub69481-25010
69480DHOOK ASSY, SLIDE DOOR FRONT LOCK
main69480-26020i199704
sub69481-25010
69482COVER, SLIDE DOOR FRONT LOCK HOOK
main69482-26010i199706
69482ACOVER, SLIDE DOOR FRONT LOCK HOOK
main69482-26010i199704
69485ABRACKET, SLIDE DOOR FRONT LOCK STRIKER
main69485-26010i199706
69485CBRACKET, SLIDE DOOR FRONT LOCK STRIKER
main69485-26010i199704
69486ACOVER, SLIDE DOOR FRONT LOCK STRIKER
main69486-95701i199706
69486DCOVER, SLIDE DOOR FRONT LOCK STRIKER
main69486-95701i199704
69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE
main69630-26050i199706-199907
main69630-26060i199706-199907
main69630-26090i199804-199907
main69630-26100i199907
main69630-26110i199907
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
main69640-26110i199706-199907
main69640-26120i199704-199907
main69640-26130i199704-199804
main69640-26130i199804-199907
main69640-26200i199907
main69640-26210i199907
main69640-26230i199907
69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH
main69707-26010-B1i199706-199907
LT.BLUISH GRAY,TRIM1#
sub69707-26020
sub69707-26010
main69707-26010-B2i199907
SHADOW GRAY,TRIM1#
sub69707-26020
sub69707-26010
main69707-26010-B4i199907
MD.CHARCOAL,TRIM4#
sub69707-26020
sub69707-26010
main69707-26010-G0i199804-199907
SAGE,TRIM6#
sub69707-26020
sub69707-26010
69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
main69708-26010-B0i199804-199907
sub69708-26020
sub69708-26010
main69708-26010-B1i199704-199907
LT.BLUISH GRAY,TRIM1#
sub69708-26020
sub69708-26010
main69708-26010-B2i199907
SHADOW GRAY,TRIM1#
sub69708-26020
sub69708-26010
main69708-26010-B3i199907
BLUE GRAY,TRIM1#
sub69708-26020
sub69708-26010
main69708-26010-B4i199907
MD.CHARCOAL,TRIM4#
sub69708-26020
sub69708-26010
main69708-26010-G0i199704-199907
SAGE,TRIM6#
sub69708-26020
sub69708-26010
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
main69730-26010i199706
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
main69740-26010i199704
69749BCLAMP, REAR DOOR LOCK LINK
main69749-95J00i199706
69749DCLAMP, SLIDE DOOR LOCK LINK
main69749-95J00i199704
9011906924
main90119-06924
9011908A51
main90119-08A51
9015960596
main90159-60596
9015980065
main90159-80065
9046705136
main90467-05136
9151140608
main91511-40608
91616B0825
main91616-B0825
9162140614
main91621-40614
91633B0616
main91633-B0616
91635B0625
main91635-B0625
9338116010
main93381-16010

41 parts on this diagram · 1 diagram in section
