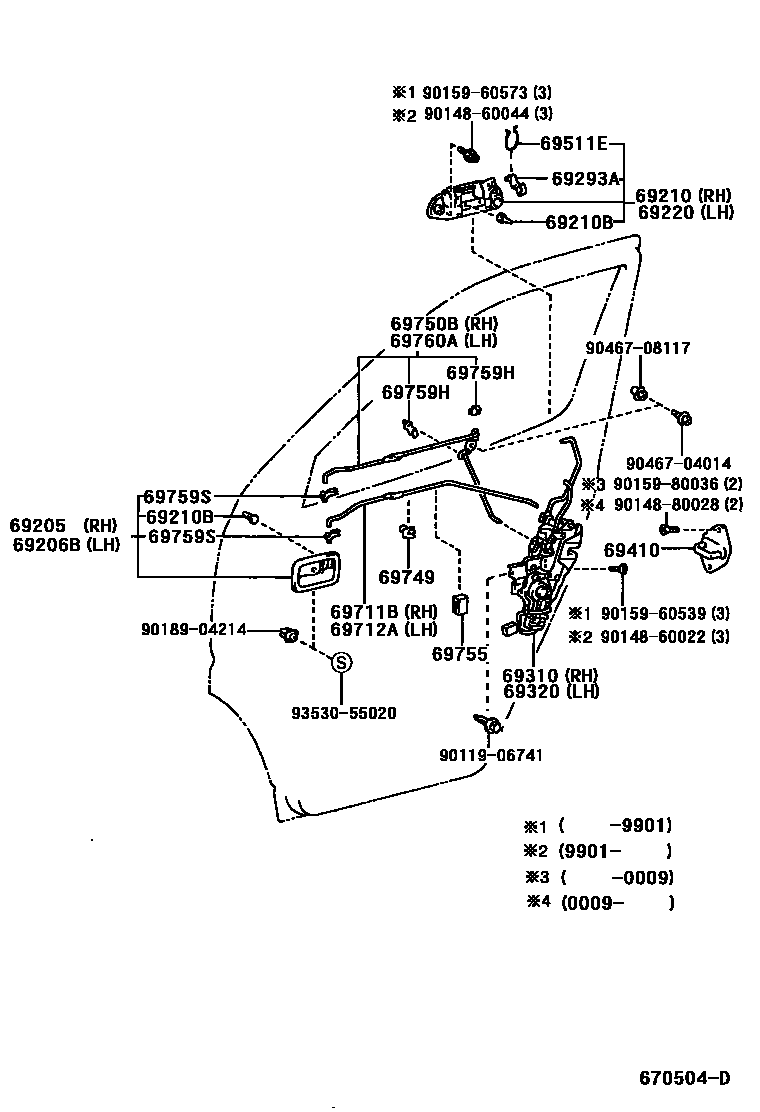

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20120-B0iKCH4#,RCH41,47..WINT199804-199907

sub69205-20120

main69205-20120-B1iKCH4#,LXH4#,RCH4#..STD,WISTD199907

SHADOW GRAY,TRIM1#

sub69205-20120

main69205-20120-B2iLXH4#;KCH4#,RCH4#..E,STD,WINT199704-199907

LT.BLUISH GRAY,TRIM1#

sub69205-20120

main69205-20120-B3iLXH4#..G199907

BLUE GRAY,TRIM1#

sub69205-20120

main69205-20120-B4iKCH4#,RCH41,47..G,V199907

MD.CHARCOAL,TRIM4#

sub69205-20120

main69205-20120-C0iRCH41,47..STD199804-199908

sub69205-20120

main69205-20120-G0iKCH4#,RCH41,47..G,STD199704-199907

SAGE,TRIM6#

sub69205-20120

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20120-B0iKCH4#,RCH41,47..WINT199804-199907

sub69206-20120

main69206-20120-B1iKCH4#,LXH4#,RCH4#..STD,WISTD199907

SHADOW GRAY,TRIM1#

sub69206-20120

main69206-20120-B2iLXH4#;KCH4#,RCH4#..E,STD,WINT199704-199907

LT.BLUISH GRAY,TRIM1#

sub69206-20120

main69206-20120-B4iLXH4#..G199907

BLUE GRAY,TRIM1#

sub69206-20120

main69206-20120-B5iKCH4#,RCH41,47..G,V199907

MD.CHARCOAL,TRIM4#

sub69206-20120

main69206-20120-C0iRCH41,47..STD199804-199908

sub69206-20120

main69206-20120-G0iKCH4#,RCH41,47..G,STD199704-199907

SAGE,TRIM6#

sub69206-20120

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-26020-A0iKCH4#,RCH41,47..V200004-200011

sub69210-26020

main69210-26020-A0iKCH4#,RCH41..G199704-199907

WHITE PEARL MC.,2EB

sub69210-26020

main69210-26020-A1iRCH47..WINT199709-199711

WHITE,040

sub69210-26020

main69210-26020-A1iRCH41,47..STD199804-199908

sub69210-26020

main69210-26020-A1iKCH4#,RCH41,47..STD199712

sub69210-26020

main69210-26020-A1iKCH4#,RCH41,47..WINT199709

sub69210-26020

main69210-26020-A1iKCH4#,RCH41,47..WINT199804-199907

sub69210-26020

main69210-26020-A2iKCH4#,RCH41,47..V,WISTD199907-200205

WHITE,056

sub69210-26020

main69210-26020-A3iKCH4#,RCH41,47..G,V199907-200205

WHITE PM.,2FZ

sub69210-26020

main69210-26020-B0iRCH41,47..STD199804-199908

sub69210-26020

main69210-26020-B0iKCH4#,RCH41,47..WINT199804-199907

sub69210-26020

main69210-26020-B0iKCH4#,RCH41,47..V,WISTD199907-200205

SILVER ME,199

sub69210-26020

main69210-26020-B3iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

sub69210-26020

main69210-26020-B3iKCH4#,RCH41,47..STD199804-199907

BLUISH SILVER ME.,1A0 ,2DM

sub69210-26020

main69210-26020-B6iKCH4#,RCH41,47..G,V199907-200205

SILVER ME.,2FY

sub69210-26020

main69210-26020-B6iKCH4#,RCH41,47..V199912-200204

sub69210-26020

main69210-26020-B6iKCH4#,RCH41,47..WISTD200008-200204

sub69210-26020

main69210-26020-C0iKCH4#,RCH41,47..G,STD199804-199907

sub69210-26020

main69210-26020-C0iKCH4#,RCH41,47..G,STD199804-199907

BLACK ME,2EV

sub69210-26020

main69210-26020-C0iRCH41,47..STD199804-199908

sub69210-26020

main69210-26020-C1iKCH4#,RCH41,47..WISTD199907-200205

BLACK MC.,209

sub69210-26020

main69210-26020-C1iKCH4#,RCH41,47..WISTD199907-200205

BLACK MC.,2GA

sub69210-26020

main69210-26020-G2iKCH4#,RCH41,47..STD199804-199907

LT GREEN M,2DJ ,6L5

sub69210-26020

main69210-26020-G2iKCH4#,RCH41,47..G199704-199907

LT GREEN M,2DJ

sub69210-26020

main69210-26020-G3iKCH4#,RCH41..G199704-199804

DK.GREEN M.M.,2DK

sub69210-26020

main69210-26020-J0iKCH4#,RCH41,47..STD199804-199907

BLUE M.M.,2DM

sub69210-26020

main69210-26020-J2iKCH4#,RCH41,47..V199907-200205

DK.BLUE MC.,2GB

sub69210-26020

main69210-26020-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

sub69210-26020

main69210-95J03iLXH4#;KCH4#,RCH4#..E,STD199704-200205

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iKCH4#,LXH4#,RCH4#199704

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-26020-A0iKCH4#,RCH41,47..V200004-200011

sub69220-26020

main69220-26020-A0iKCH4#,RCH41..G199704-199907

WHITE PEARL MC.,2EB

sub69220-26020

main69220-26020-A1iKCH4#,RCH41,47..WINT199804-199907

sub69220-26020

main69220-26020-A1iKCH4#,RCH41,47..STD199712

sub69220-26020

main69220-26020-A1iRCH41,47..STD199804-199908

sub69220-26020

main69220-26020-A1iKCH4#,RCH41,47..STD199804-199907

WHITE,,2DM

sub69220-26020

main69220-26020-A1iRCH47..WINT199709-199711

WHITE,040

sub69220-26020

main69220-26020-A1iKCH4#,RCH41,47..WINT199709

sub69220-26020

main69220-26020-A2iKCH4#,RCH41,47..V,WISTD199907

WHITE,056

sub69220-26020

main69220-26020-A3iKCH4#,RCH41,47..G,V199907

WHITE PM.,2FZ

sub69220-26020

main69220-26020-B0iKCH4#,RCH41,47..WINT199804-199907

sub69220-26020

main69220-26020-B0iRCH41,47..STD199804-199908

sub69220-26020

main69220-26020-B0iKCH4#,RCH41,47..V,WISTD199907

SILVER ME,199

sub69220-26020

main69220-26020-B3iKCH4#,RCH41,47..STD,WINT199704-199907

BLUISH SILVER ME.,1A0

sub69220-26020

main69220-26020-B6iKCH4#,RCH41,47..WISTD200008-200204

sub69220-26020

main69220-26020-B6iKCH4#,RCH41,47..G,V199907

SILVER ME.,2FY

sub69220-26020

main69220-26020-B6iKCH4#,RCH41,47..V199912-200204

sub69220-26020

main69220-26020-C0iKCH4#,RCH41,47..WINT199804-199907

sub69220-26020

main69220-26020-C0iKCH4#,RCH41,47..G,STD199804-199907

BLACK ME,2EV

sub69220-26020

main69220-26020-C0iRCH41,47..STD199804-199908

sub69220-26020

main69220-26020-C1iKCH4#,RCH41,47..G,V199907

BLACK MC.,2GA

sub69220-26020

main69220-26020-C1iKCH4#,RCH41,47..G,V199907

BLACK MC.,209

sub69220-26020

main69220-26020-G2iKCH4#,RCH41,47..STD199804-199907

LT GREEN M,2DJ ,6L5

sub69220-26020

main69220-26020-G2iKCH4#,RCH41,47..G199704-199907

LT GREEN M,2DJ

sub69220-26020

main69220-26020-G3iKCH4#,RCH41..G199704-199804

DK.GREEN M.M.,2DK

sub69220-26020

main69220-26020-J0iKCH4#,RCH41,47..STD199804-199907

BLUE M.M.,2DM

sub69220-26020

main69220-26020-J2iKCH4#,RCH41,47..V199907

DK.BLUE MC.,2GB

sub69220-26020

main69220-26020-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

sub69220-26020

main69220-95J03iLXH4#;KCH4#,RCH4#..E,STD199704

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-10010iKCH4#,RCH41,47..STD199804-199907

main69293-10010iKCH4#,RCH41,47..G,V,WINT,WISTD199704

main69293-10020iKCH4#,RCH41,47..G,V,WINT,WISTD199704

main69293-10020iKCH4#,RCH41,47..STD199804-199907

main69293-12030iLXH4#;KCH4#,RCH4#..E,STD199704

main69293-12040iLXH4#;KCH4#,RCH4#..E,STD199704

69310LOCK ASSY, FRONT DOOR, RH

main69030-26090iLXH4#..G;KCH4#,RCH41,47..STD,WINT199704

main69030-26100iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199804-199907

main69030-26100iKCH4#,RCH41..G199704-199804

main69030-26110iKCH4#..E;LXH4#,RCH42..STD199704

main69310-26030iLXH4#,RCH42..STD199706

69320LOCK ASSY, FRONT DOOR, LH

main69040-26070iLXH4#;KCH4#,RCH4#..E,STD,WINT199704-199907

main69040-26080iRCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)199804-199907

main69040-26080iKCH4#,RCH41..G199704-199804

main69320-26030iLXH4#,RCH42..STD199706

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-26010iKCH4#,LXH4#,RCH4#199704

69511ERETAINER, FRONT DOOR LOCK CYLINDER

main69511-26010iKCH4#,LXH4#,RCH4#199704

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69701-26010iKCH4#,LXH4#,RCH4#199704

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69702-26010iKCH4#,LXH4#,RCH4#199704

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20030iKCH4#,LXH4#,RCH4#199704

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-26020iKCH4#,LXH4#,RCH4#199704

69755SILENCER, FRONT DOOR LOCK LINK

main69759-95500iKCH4#,LXH4#,RCH4#199704

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20020iKCH4#,LXH4#,RCH4#199704

main69759-20030iKCH4#,LXH4#,RCH4#199704

main69759-24030iKCH4#,LXH4#,RCH4#199704

main69759-24040iKCH4#,LXH4#,RCH4#199704

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iKCH4#,LXH4#,RCH4#199704

main69759-24070iKCH4#,LXH4#,RCH4#199704

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-26020iKCH4#,LXH4#,RCH4#199704

9011906741

main90119-06741

9014860022

main90148-60022

9014860044

main90148-60044

9014880028

main90148-80028

9015960539

main90159-60539

9015960573

main90159-60573

9015980036

main90159-80036

9018904214

main90189-04214

9046704014

main90467-04014

9046708117

main90467-08117

9353055020

main93530-55020

29 parts on this diagram · 1 diagram in section
