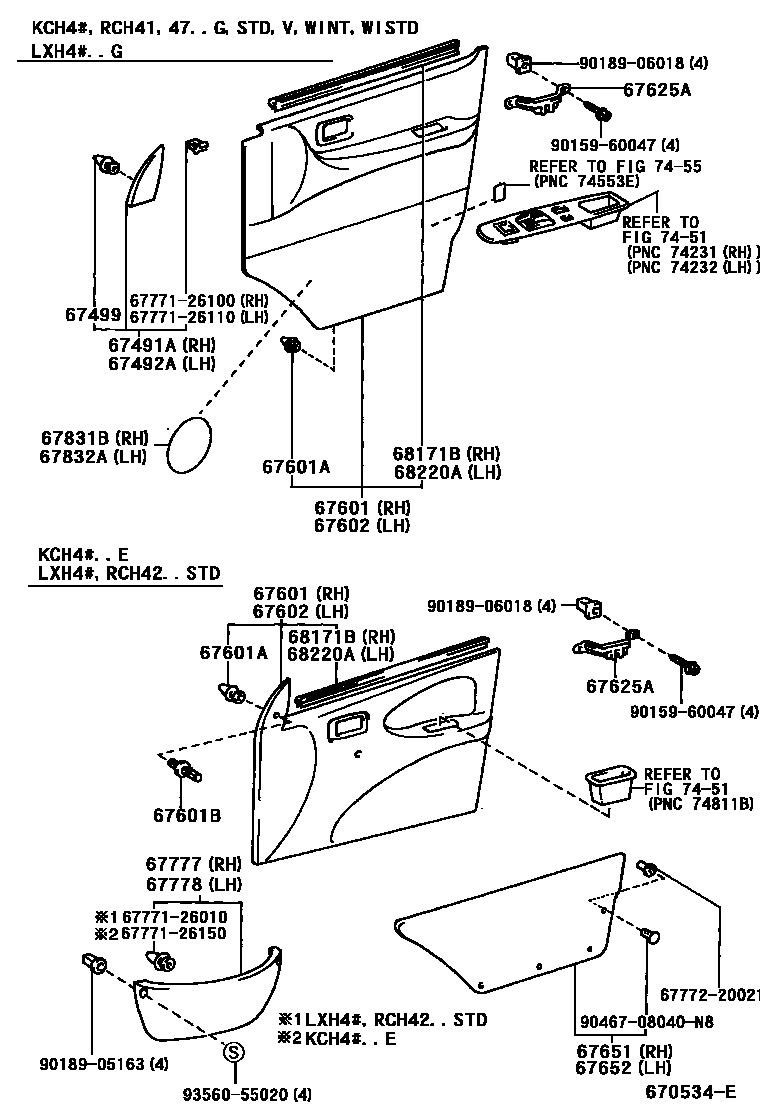

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-26030iLXH4#..G;KCH4#,RCH41,47..V,WISTD199704-199907

main67491-26040iKCH4#,RCH41,47..G,STD,V,WINT,WISTD199704-199804

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-26030iLXH4#..G;KCH4#,RCH41,47..V,WISTD199704-199907

main67492-26040iKCH4#,RCH41,47..G,STD,WINT199704-199907

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-30070iLXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-26450-G0iKCH4#,RCH41,47..G199704-199907

SAGE,TRIM6#

main67610-26451-E0iKCH4#,RCH41,47..G199907

ORCHID,TRIM4#

main67610-26470-B0iLXH4#..G;KCH4#,RCH41,47..STD,WINT199704-199907

LT.BLUISH GRAY,TRIM1#

sub67610-26470

main67610-26470-B1iLXH4#..G199907

BLUISH GRAY,TRIM1#

sub67610-26470

main67610-26470-B2iKCH4#,RCH41,47..WISTD200008-200204

sub67610-26470

main67610-26470-E0iKCH4#,RCH41,47..V199907

ORCHID,TRIM4#

sub67610-26470

main67610-26470-G0iKCH4#,RCH41,47..STD199704-199907

SAGE,TRIM6#

sub67610-26470

main67610-26480-B1iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

main67610-26500-B0iLXH4#,RCH42..STD199706-199907

LT.BLUISH GRAY,TRIM1#

main67610-26500-B1iLXH43,RCH42..STD199907

BLUISH GRAY,TRIM1#

main67610-26510-B0iLXH4#,RCH42..STD199706-199907

main67610-26510-B1iLXH43,RCH42..STD199907

main67610-26620-B0iKCH4#,RCH41,47..WISTD199907

LT.BLUISH GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-26010iKCH4#..E;LXH4#,RCH42..STD199704-199801

main67771-26130iKCH4#..E;LXH4#,RCH42..STD199801-199906

main90467-09206iRCH42199907

main90467-09206iKCH4#..E;LXH4#..STD;RCH42..MTM199906

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-08176-B0iLXH43,RCH42..STD199907

BLUISH GRAY,TRIM1#

main90467-08176-B1iKCH4#..E;LXH4#,RCH42..STD199704-199907

LT.BLUISH GRAY,TRIM1#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-26450-G0iKCH4#,RCH41,47..G199704-199907

SAGE,TRIM6#

main67620-26451-E0iKCH4#,RCH41,47..G199907

ORCHID,TRIM4#

main67620-26470-B0iLXH4#..G;KCH4#,RCH41,47..STD,WINT199704-199907

LT.BLUISH GRAY,TRIM1#

main67620-26470-B1iLXH4#..G199907

BLUISH GRAY,TRIM1#

main67620-26470-B2iKCH4#,RCH41,47..WISTD200008-200204

main67620-26470-E0iKCH4#,RCH41,47..V199907

ORCHID,TRIM4#

main67620-26470-G0iKCH4#,RCH41,47..STD199704-199907

SAGE,TRIM6#

main67620-26480-B1iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

main67620-26500-B0iLXH4#,RCH42..STD199706-199907

LT.BLUISH GRAY,TRIM1#

main67620-26500-B1iLXH43,RCH42..STD199907

BLUISH GRAY,TRIM1#

main67620-26510-B0iLXH4#,RCH42..STD199706-199907

main67620-26510-B1iLXH43,RCH42..STD199907

main67620-26600-B0iKCH4#,RCH41,47..WISTD199907

LT.BLUISH GRAY,TRIM1#

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-26010iKCH4#..E;LXH4#,RCH42..STD199704-199907

main67625-26020iLXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD199704

67651BOARD, FRONT DOOR TRIM, LOWER RH

main67060-26060-B0iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

67652BOARD, FRONT DOOR TRIM, LOWER LH

main67070-26060-B0iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

67777POCKET, FRONT DOOR TRIM, RH

main67770-26010-B0iLXH4#,RCH42..STD199706-199907

BLUISH GRAY,TRIM1#

sub67770-26010

main67770-26010-B2iLXH4#,RCH42199907

BLUISH GRAY,TRIM1#

sub67770-26010

main67770-26020-B0iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

sub67770-26020

67778POCKET, FRONT DOOR TRIM, LH

main67770-26010-B0iLXH4#,RCH42..STD199706-199907

BLUISH GRAY,TRIM1#

sub67770-26010

main67770-26010-B2iRCH42199907

BLUISH GRAY,TRIM1#

sub67770-26010

main67770-26020-B0iKCH4#..E199704-199907

LT.BLUISH GRAY,TRIM1#

sub67770-26020

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-26080iKCH4#,LXH4#,RCH4#199704

67831BCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67831-26090iLXH4#..G199706

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-26080iKCH4#,LXH4#,RCH4#199704

67832ACOVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67831-26090iLXH4#..G199706

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-26020iKCH4#,LXH4#,RCH4#199704-199906

sub68171-26040

main68171-26040iKCH4#,LXH4#,RCH4#199906

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68172-26020iKCH4#,LXH4#,RCH4#199704-199906

sub68172-26040

main68172-26040iKCH4#,LXH4#,RCH4#199906

7451

7455

6777126010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26010

6777126100WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26100

6777126110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26110

6777126150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26150

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9015960047

main90159-60047

9018905163

main90189-05163

9018906018

main90189-06018

9046708040N8

main90467-08040N8

9356055020

main93560-55020

30 parts on this diagram · 3 diagrams in section
