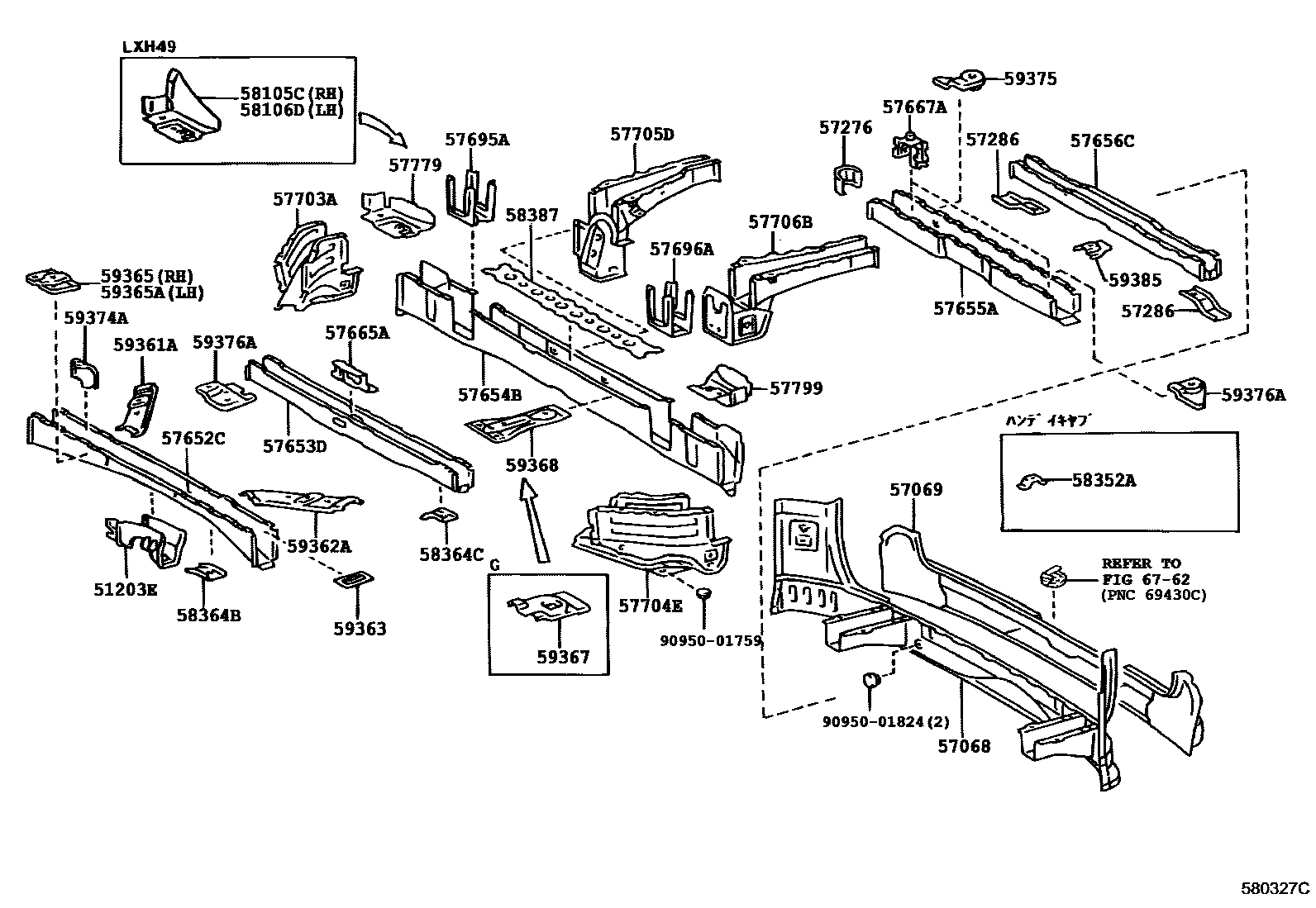

REAR FLOOR PANEL & REAR FLOOR MEMBER
51203EBRACKET SUB-ASSY, CENTER BEARING SUPPORT
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57276GUSSET, REAR FLOOR CROSSMEMBER, NO.4
57286GUSSET, REAR FLOOR CROSSMEMBER, NO.5
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57654BMEMBER, REAR FLOOR CROSS, NO.3
57655AMEMBER, REAR FLOOR CROSS, NO.4
57656CMEMBER, REAR FLOOR CROOS, NO.5
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
sub57665-26080
57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
57695AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH
57696AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH
57705DBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR RH
57706BBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH
57779RETAINER, UPPER CONTROL LINK, UPPER
57799GUSSET, REAR FLOOR CROSSMEMBER
58105CGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT RH
58106DGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT LH
58352ABRACKET, REAR FLOOR STAY
58364BBRACKET, FUEL TANK SUPPORT
58364CBRACKET, FUEL TANK SUPPORT
58387PLATE, REAR FLOOR FINISH
59361ARETAINER, REAR SEAT, NO.1
59362ARETAINER, REAR SEAT, NO.1 B
59363RETAINER, REAR SEAT, NO.1 C
59365RETAINER, REAR SEAT, NO.2 A
59365ARETEINER, REAR SEAT, NO.2
59367RETAINER, REAR SEAT, NO.2 C
59368RETAINER, REAR SEAT, NO.2 D
59374ARETAINER, REAR SEAT, NO.3
59375RETAINER, REAR SEAT, NO.4
59376ARETAINER, REAR SEAT, NO.4
59385RETEINER, REAR SEAT, NO.6
6762
9095001759
main90950-01759
9095001824
main90950-01824
40 parts on this diagram · 3 diagrams in section
