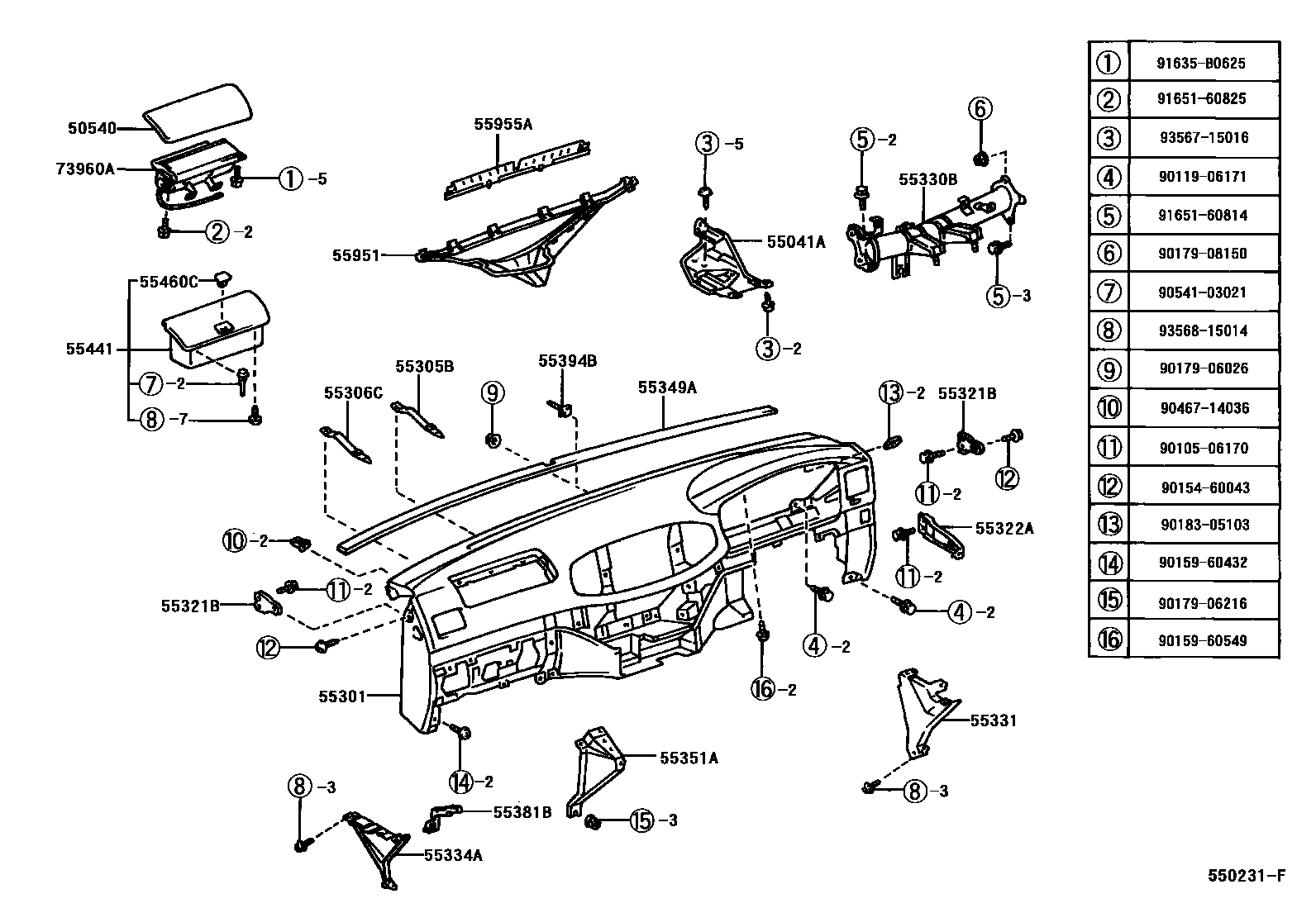

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

50540DO0R ASSY, AIRBAG PASSENGER

main50540-26050iKCH4#,RCH41,47..STD,WINT¥6,400199804-199805

main50540-26050-B0iKCH4#..E;LXH4#,RCH42199704-199805

BLUISH GRAY,TRIM1#

sub50540-26050¥6,400

main50540-26050-E0iKCH4#,RCH41,47..G,V199907

ORCHID BROWN,TRIM4#

sub50540-26050¥6,400

main50540-26050-G0iKCH4#,RCH41,47..G199704-199907

DK.SAGE,TRIM6#

sub50540-26050¥6,400

55041ABRACKET SUB-ASSY, AIRBAG PASSENGER MOUNTING

main55041-26021iKCH4#,LXH4#,RCH4#¥3,880199704

sub55041-26020¥3,880

55301PANEL SUB-ASSY, INSTRUMENT

main55300-26050-B0iLXH4#..G;KCH4#,RCH41,47..G08S,W08S199704-199804

BLUISH GRAY,TRIM1#

sub55300-26051¥49,100

sub55331-26080¥1,670

sub55334-26030¥1,670

sub93568-15014¥180

main55300-26050-G0iKCH4#,RCH41,47..STD199704-199804

DK.SAGE,TRIM6#

sub55300-26051¥49,100

sub55331-26080¥1,670

sub55334-26030¥1,670

sub93568-15014¥180

main55300-26051-B0iLXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD199804

BLUISH GRAY,TRIM1#

main55300-26051-E0iKCH4#,RCH41,47..V199907

ORCHID BROWN,TRIM4#

main55300-26051-G0iKCH4#,RCH41,47..STD199804-199907

DK.SAGE,TRIM6#

main55300-26060-B0iKCH4#,RCH41,47..STD199704-199804

sub55300-26061¥49,100

sub55331-26080¥1,670

sub55334-26030¥1,670

sub93568-15014¥180

main55300-26060-G0iKCH4#,RCH41,47..G,STD199704-199804

sub55300-26061¥49,100

sub55331-26080¥1,670

sub55334-26030¥1,670

sub93568-15014¥180

main55300-26061-B0iKCH4#,RCH41,47..STD199804-199907

main55300-26061-B0iKCH4#,RCH41,47..WISTD200008-200204

main55300-26061-E0iKCH4#,RCH41,47..G,V199907

main55300-26061-G0iRCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S)199804-199907

main55300-26061-G0iRCH41..5D;RCH47..W07S199804-199907

DK.SAGE,TRIM6#

main55300-26070-B0iLXH4#,RCH42..STD199706-199804

BLUISH GRAY,TRIM1#

sub55300-26071¥49,100

sub55331-26080¥1,670

sub55334-26030¥1,670

sub93568-15014¥180

main55300-26071-B0iLXH4#,RCH42..STD199804

BLUISH GRAY,TRIM1#

55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

main55305-26090iKCH4#,LXH4#,RCH4#¥350199704

55306CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-26040iKCH4#,LXH4#,RCH4#¥350199704

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-26020iKCH4#,LXH4#,RCH4#¥670199704

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-26030iKCH4#,LXH4#,RCH4#¥1,300199704

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-26100iLXH4#,RCH42..MTM¥13,900199706

main55330-26110iKCH4#,LXH4#,RCH41,47..ATM¥13,900199704-199907

main55330-26200iKCH4#,RCH41,47¥15,500199907

55331REINFORCEMENT, INSTRUMENT PANEL

main55331-26080iKCH4#,LXH4#,RCH4#¥1,670199804

55334AREINFORCEMENT, INSTRUMENT PANEL, UPPER

main55334-26030iKCH4#,LXH4#,RCH4#¥1,670199804

55349ACUSHION, INSTRUMENT PANEL

main55349-26010iKCH4#,LXH4#,RCH4#¥1,940199704

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-26040iKCH4#,LXH4#,RCH4#¥2,100199704

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-26020iKCH4#,LXH4#,RCH4#¥630199704

55394BBOLT, INSTRUMENT PANEL

main55394-26010iKCH4#,LXH4#,RCH4#¥320199704

55441BOX, INSTRUMENT PANEL

main55440-26030-B0iLXH4#..G199706

BLUISH GRAY,TRIM1#

sub55440-26040¥7,400

main55440-26040-B0iLXH4#,RCH42..STD199706

BLUISH GRAY,TRIM1#

55460CLOCK ASSY, INSTRUMENT PANEL BOX

main55460-26010-B0iLXH4#,RCH42199706

BLUISH GRAY,TRIM1#

55951NOZZLE, DEFROSTER, FRONT

main55951-26040iKCH4#,LXH4#,RCH4#¥5,200199704

55955APLATE, DEFROSTER NOZZLE OPENING, NO.1

main55955-26010iKCH4#,LXH4#,RCH4#¥2,350199704

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-26040iKCH4#,LXH4#,RCH4#¥120,000199704-199804

main73960-26041iKCH4#,LXH4#,RCH4#¥120,000199804

9010506170

main90105-06170¥120

9011906171

main90119-06171¥130

9015460043

main90154-60043¥60

9015960432

main90159-60432¥120

9015960549

main90159-60549¥110

9017906026

main90179-06026¥70

9017906216

main90179-06216¥130

9017908150

main90179-08150¥120

9018305103

main90183-05103¥90

9046714036

main90467-14036¥370

9054103021

main90541-03021¥310

91635B0625

main91635-B0625¥110

9165160814

main91651-60814¥130

9165160825

main91651-60825¥140

9356715016

main93567-15016¥120

9356815014

main93568-15014¥180

35 parts on this diagram · 2 diagrams in section
