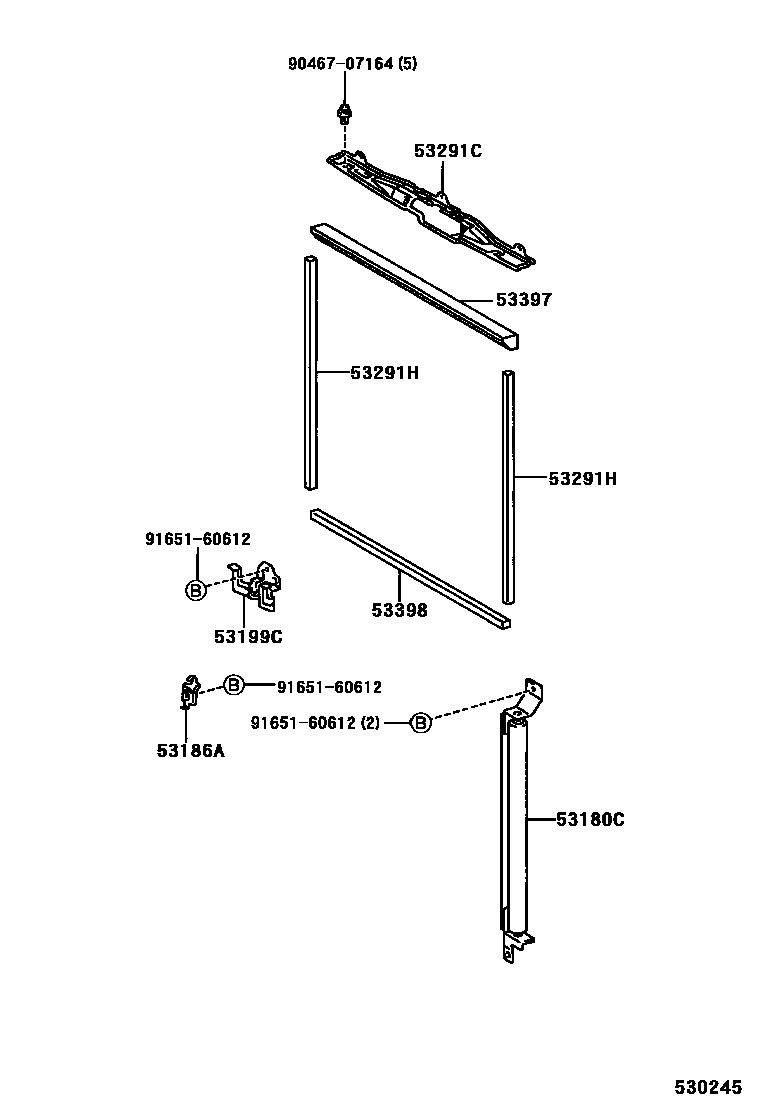

RADIATOR SUPPORT & WIND GUIDE

53180CSHUTTER ASSY, RADIATOR

main53180-26020iKCH4#,LXH4#199704-199804

main53180-26030iLXH4#;KCH4#..G07S;KCH4#..E,STD,WINT199804

main53180-26050iKCH4#199907

53186AHOOK, RADIATOR SHUTTER

main53186-26010iKCH4#,LXH4#199704

53199CBRACKET, RADIATOR SHUTTER CONTROL

main53199-26020iLXH4#;KCH4#..G07S;KCH4#..E,STD,WINT199704

main53199-26030iKCH4#199907

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53292-26030iLXH4#;KCH4#..G07S;KCH4#..E,STD,WINT199704

main53292-26060iKCH4#199907

53291HSEAL, RADIATOR SUPPORT

main53291-26030iKCH4#,LXH4#199704

main53291-26040iRCH4#199704

53397SEAL, RADIATOR, UPPER

main53397-26010iRCH4#199704

main53397-26020iKCH4#,LXH4#199704

53398SEAL, RADIATOR, LOWER

main53397-26010iKCH4#,LXH4#199704

main53398-26010iRCH4#199704

9046707164

main90467-07164

9165160612

main91651-60612

9 parts on this diagram · 1 diagram in section
