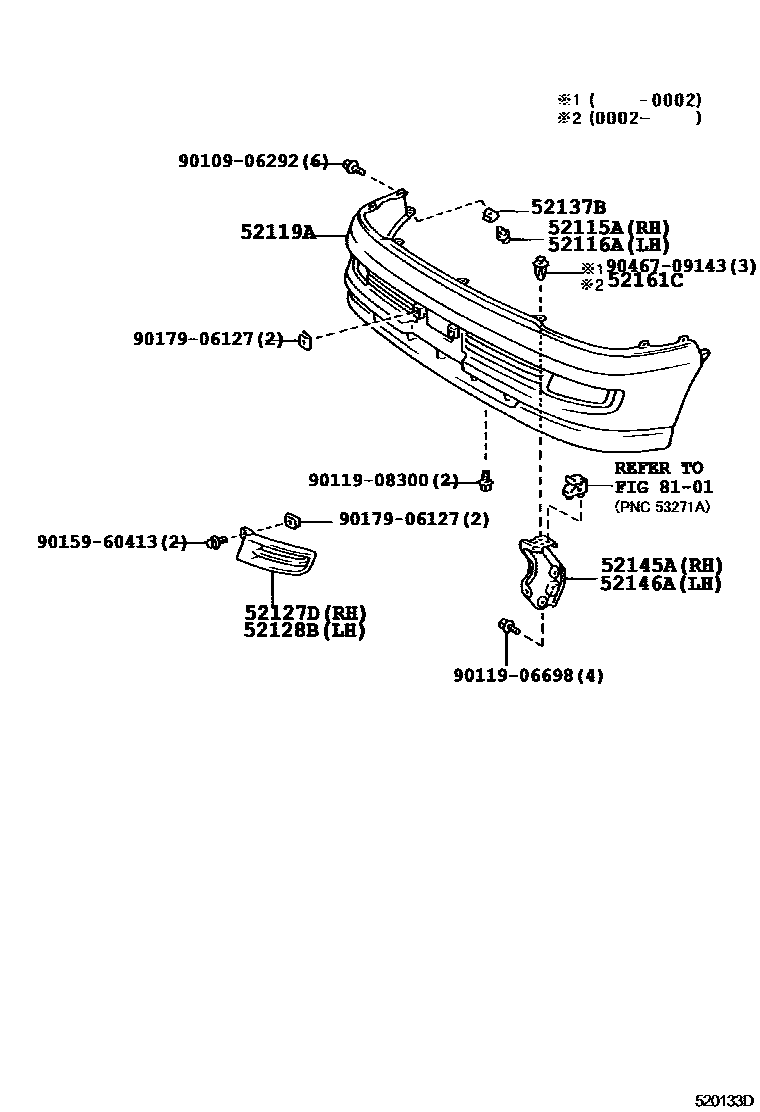

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0004 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26040iLXH4#,RCH42199704-199912

main52115-26080iKCH4#,RCH41,47199907-199912

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-26040iLXH4#,RCH42199704-199912

main52115-26080iKCH4#,RCH41,47199907-199912

52119ACOVER, FRONT BUMPER

main52119-26260iLXH4#,RCH42..STD199706

main52119-26270-A0iLXH4#..G199706-199804

WHITE,045

sub52119-26939

main52119-26270-A1iLXH4#..G199805

WHITE,058

sub52119-26939

main52119-26270-B0iKCH4#,RCH41,47..STD199704-199907

BLUISH SILVER ME.,1A0 ,2DM

sub52119-26939

main52119-26270-B1iKCH4#,RCH41,47..G,STD199704-199804

BL.GRAY ME,2DK

sub52119-26939

main52119-26270-B2iLXH4#..G199907

SILVER ME,199

sub52119-26939

main52119-26270-B2iKCH4#,RCH41,47..G,STD199704-199907

SILVER ME,2EB

sub52119-26939

main52119-26270-B3iKCH4#,RCH41,47..STD199712

sub52119-26939

main52119-26270-C0iRCH41..STD199712-199804

BLACK,205

sub52119-26939

main52119-26270-G0iLXH4#..G;KCH4#,RCH41,47..E,STD199704-199907

LT GREEN M,6L5

sub52119-26939

main52119-26270-G1iKCH4#,RCH41,47..G,STD199804-199907

GRAYISH BREEN M,2DJ ,2EV

sub52119-26939

main52119-26270-G1iKCH4#,RCH41..G199704-199804

GRAYISH BREEN M,2DJ

sub52119-26939

main52119-26280-B0iKCH4#,RCH41,47..STD199704-199907

sub52119-26923

main52119-26280-B1iKCH4#,RCH41,47..G,STD199704-199804

sub52119-26923

main52119-26280-B2iKCH4#,RCH41,47..G,STD199704-199907

sub52119-26923

main52119-26280-B3iKCH4#,RCH41,47..STD199712

sub52119-26923

main52119-26280-G0iKCH4#,RCH41,47..G,STD199804-199907

sub52119-26923

main52119-26280-G0iKCH4#,RCH41..G199704-199804

sub52119-26923

main52119-26280-G1iKCH4#,RCH41,47..STD199704-199907

sub52119-26923

main52119-26290-A0iRCH47..WINT199709-199711

WHITE,040

sub52119-26924

main52119-26290-A0iKCH4#,RCH41,47..WINT199709

sub52119-26924

main52119-26290-B0iKCH4#,RCH41,47..WINT199704-199907

BLUISH SILVER ME.,1A0

sub52119-26924

main52119-26290-K0iKCH4#,RCH41,47..WINT199704-199907

DK.PURPLE MC.,936

sub52119-26924

main52119-26400-A0iKCH4#,RCH41,47..V199907

WHITE,056

sub52119-26936

main52119-26400-B0iKCH4#,RCH41,47..G,V199907

SILVER ME.,2FZ

sub52119-26936

main52119-26400-B0iKCH4#,RCH41,47..V199912-200204

sub52119-26936

main52119-26400-B1iKCH4#,RCH41,47..V199907

BL.GRAY ME,2GB

sub52119-26936

main52119-26400-B2iKCH4#,RCH41,47..V199907

SILVER ME,199

sub52119-26936

main52119-26400-E0iKCH4#,RCH41,47..V200004-200011

sub52119-26936

main52119-26400-G0iKCH4#,RCH41,47..G,V199907

GRAYISH BREEN M,2FY ,2GA

sub52119-26936

main52119-26410-A0iKCH4#,RCH41,47..WISTD199907

WHITE,056

sub52119-26937

main52119-26410-B0iKCH4#,RCH41,47..WISTD199907

SILVER ME,199

sub52119-26937

main52119-26410-B1iKCH4#,RCH41,47..WISTD200008-200204

sub52119-26937

main52119-26410-C0iKCH4#,RCH41,47..WISTD199907

BLACK MC.,209

sub52119-26937

main52119-26420-A0iKCH4#,RCH41,47..V199907

sub52119-26938

main52119-26420-B0iKCH4#,RCH41,47..V199912-200204

sub52119-26938

main52119-26420-B0iKCH4#,RCH41,47..G,V199907

sub52119-26938

main52119-26420-B1iKCH4#,RCH41,47..V199907

sub52119-26938

main52119-26420-B2iKCH4#,RCH41,47..V199907

sub52119-26938

main52119-26420-G0iKCH4#,RCH41,47..G,V199907

sub52119-26938

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-26030-A0iLXH4#..G199706-199804

WHITE,045

sub52127-26030

sub52127-26040

main52127-26030-A1iLXH4#..G199805

WHITE,058

sub52127-26030

sub52127-26040

main52127-26030-B1iLXH4#..G199907

SILVER ME,199

sub52127-26030

sub52127-26040

main52127-26030-G0iKCH4#..E;LXH4#..G199704-199907

LT GREEN M,6L5

sub52127-26030

sub52127-26040

main52127-26040iLXH4#,RCH42..STD199706

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-26030-A0iLXH4#..G199706-199804

WHITE,045

sub52128-26030

sub52128-26040

main52128-26030-A1iLXH4#..G199805

WHITE,058

sub52128-26030

sub52128-26040

main52128-26030-B1iLXH4#..G199907

SILVER ME,199

sub52128-26030

sub52128-26040

main52128-26030-G0iKCH4#..E;LXH4#..G199704-199907

LT GREEN M,6L5

sub52128-26030

sub52128-26040

main52128-26040iLXH4#,RCH42..STD199706

52137BPLATE, FRONT BUMPER BRACKET, NO.1

main52116-26050iKCH4#,RCH41,47199907-199912

sub52116-26080

sub52115-26040

main52116-26080iKCH4#,RCH41,47199912

main52137-26020iLXH4#,RCH42199704-199912

main52137-26020iKCH4#,RCH41,47199912

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-26030iKCH4#,LXH4#,RCH4#..E,G,STD199704-199907

main52145-26040iKCH4#,RCH41,47..WINT199704-199907

main52145-26060iKCH4#,RCH41,47199907

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-26030iKCH4#,LXH4#,RCH4#..E,G,STD199704-199907

main52146-26040iKCH4#,RCH41,47..WINT199704-199907

main52146-26060iKCH4#,RCH41,47199907

52161CPIECE, FRONT BUMPER

main52161-16010iKCH4#,LXH4#,RCH4#200003

main52161-44010iLXH43..4D..ATM..STD200002-200003

main52161-44010-C0iLXH4#..G200002-200003

BLACK,056 ,199 ,209

sub52161-44010

main52161-44010-C0iLXH4#..G200002-200003

BLACK,056 ,199 ,2FY ,2FZ ,2GA ,2GB

sub52161-44010

main52161-44010-C0iLXH4#..G200002-200003

BLACK,2FY ,2FZ ,2GA

sub52161-44010

main52161-44010-C0iLXH4#..G200002-200003

BLACK,058

sub52161-44010

main52161-44010-C0iKCH4#,RCH41,47..WISTD200002-200003

BLACK,058 ,199

sub52161-44010

8101

9010906292

main90109-06292

9011906698

main90119-06698

9011908300

main90119-08300

9015960413

main90159-60413

9017906127

main90179-06127

9046709143

main90467-09143

16 parts on this diagram · 3 diagrams in section
